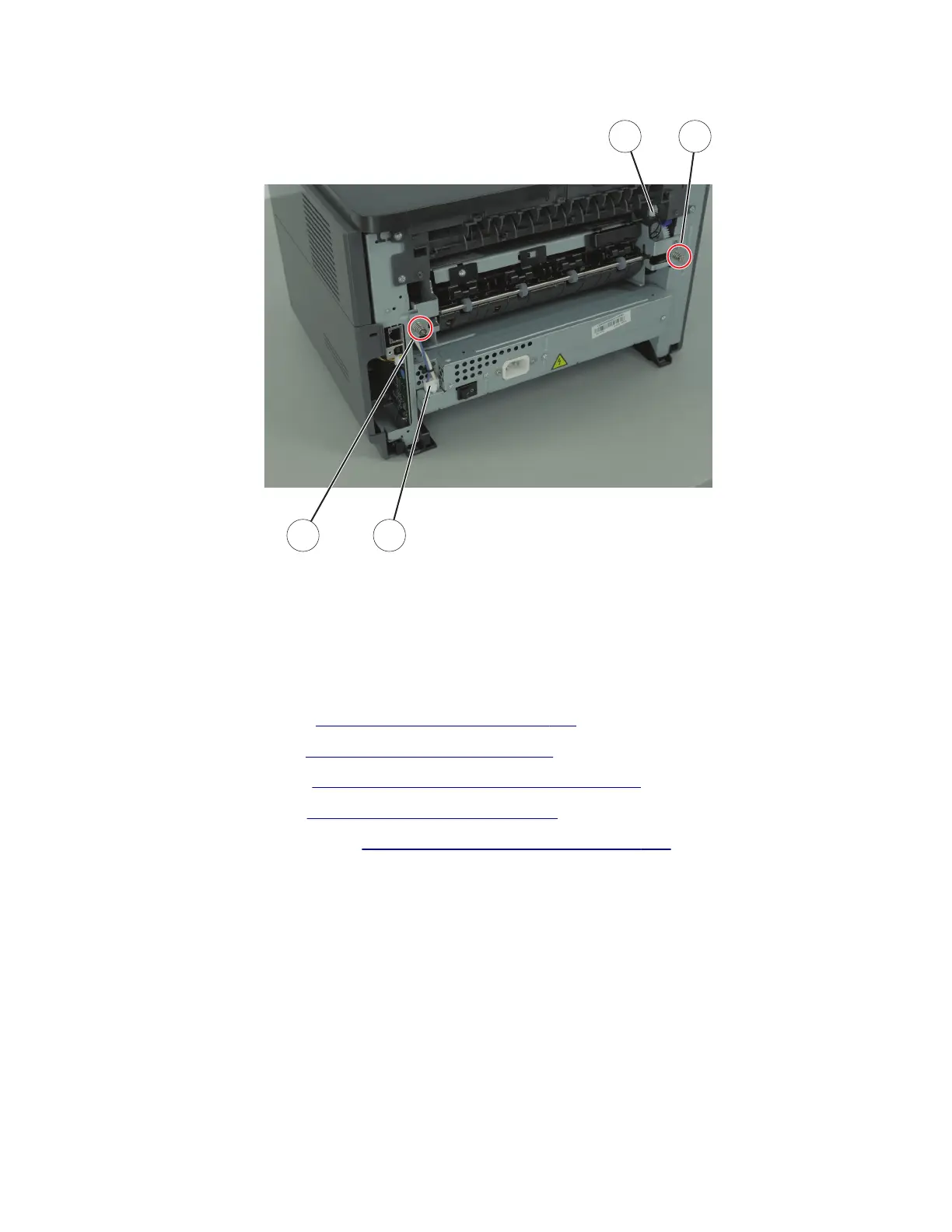

4 Disconnect the two cables (A), and then remove the two screws (B).
B A
BA
5 Remove the fuser.
Installation note: Open the front door before installing the fuser. To check if the fuser is properly installed,
open and close the front door and check if the fuser shutter moves to the left and right.
Sensor (bin full) removal
1 Remove the right cover. See “Right cover removal” on page 186.
2 Remove the left cover. See “Left cover removal” on page 177.
3 Remove the rear cover. See “Rear door and cover removal” on page 234.
4 Remove the top cover. See “Top cover removal” on page 238.
5 Remove the redrive assembly. See “Redrive assembly removal” on page 236.
4600-830, -835, -895
Parts removal
235
