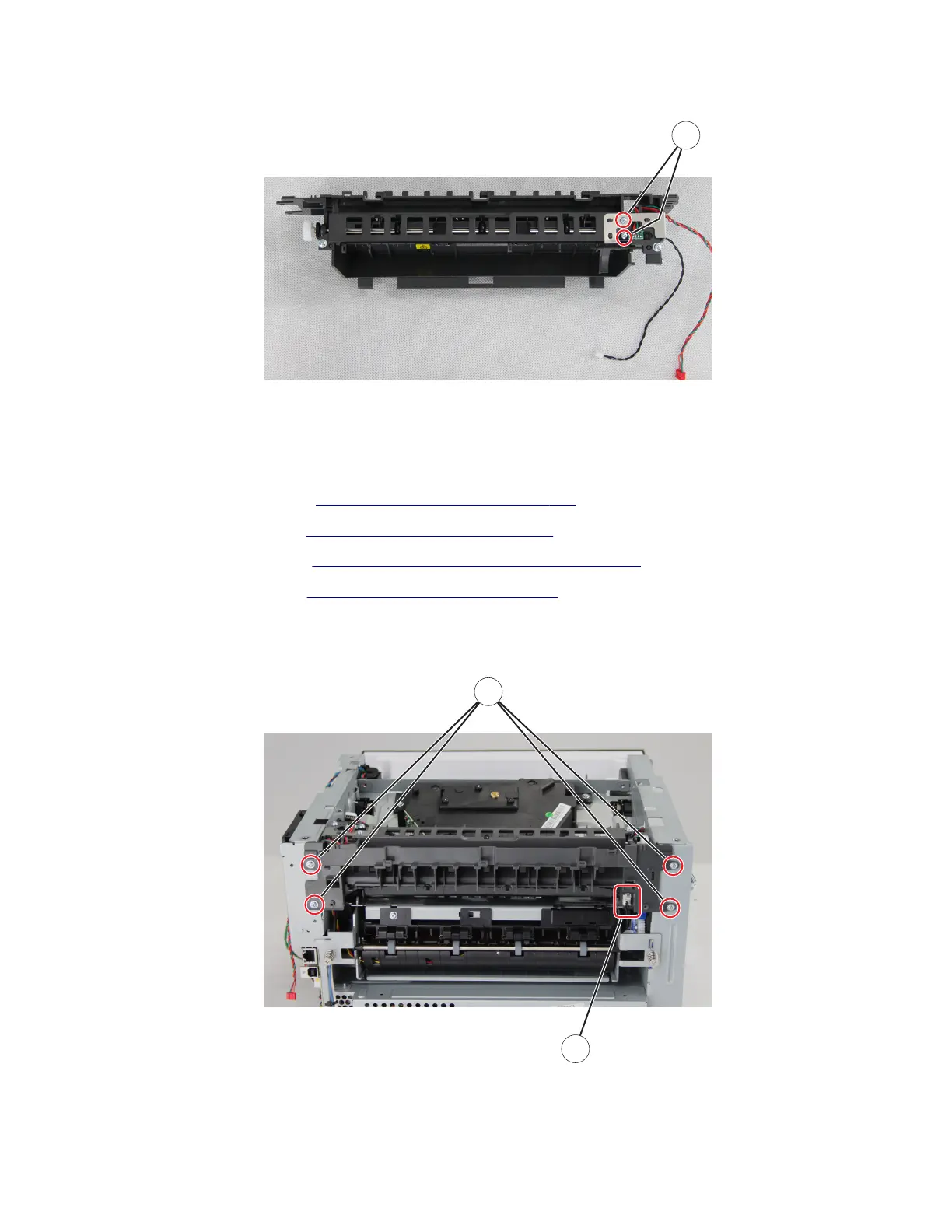

6 Remove the two screws (A), and then remove the plate.
A
7 Remove the sensor.
Redrive assembly removal
1 Remove the right cover. See “Right cover removal” on page 186.
2 Remove the left cover. See “Left cover removal” on page 177.
3 Remove the rear cover. See “Rear door and cover removal” on page 234.
4 Remove the top cover. See “Top cover removal” on page 238.
5 Disconnect the cables JNRW1 and JFUTHM1 from the controller board.
6 Remove the four screws (A) and the cable (B).
B
A
7 Remove the redrive assembly.
4600-830, -835, -895
