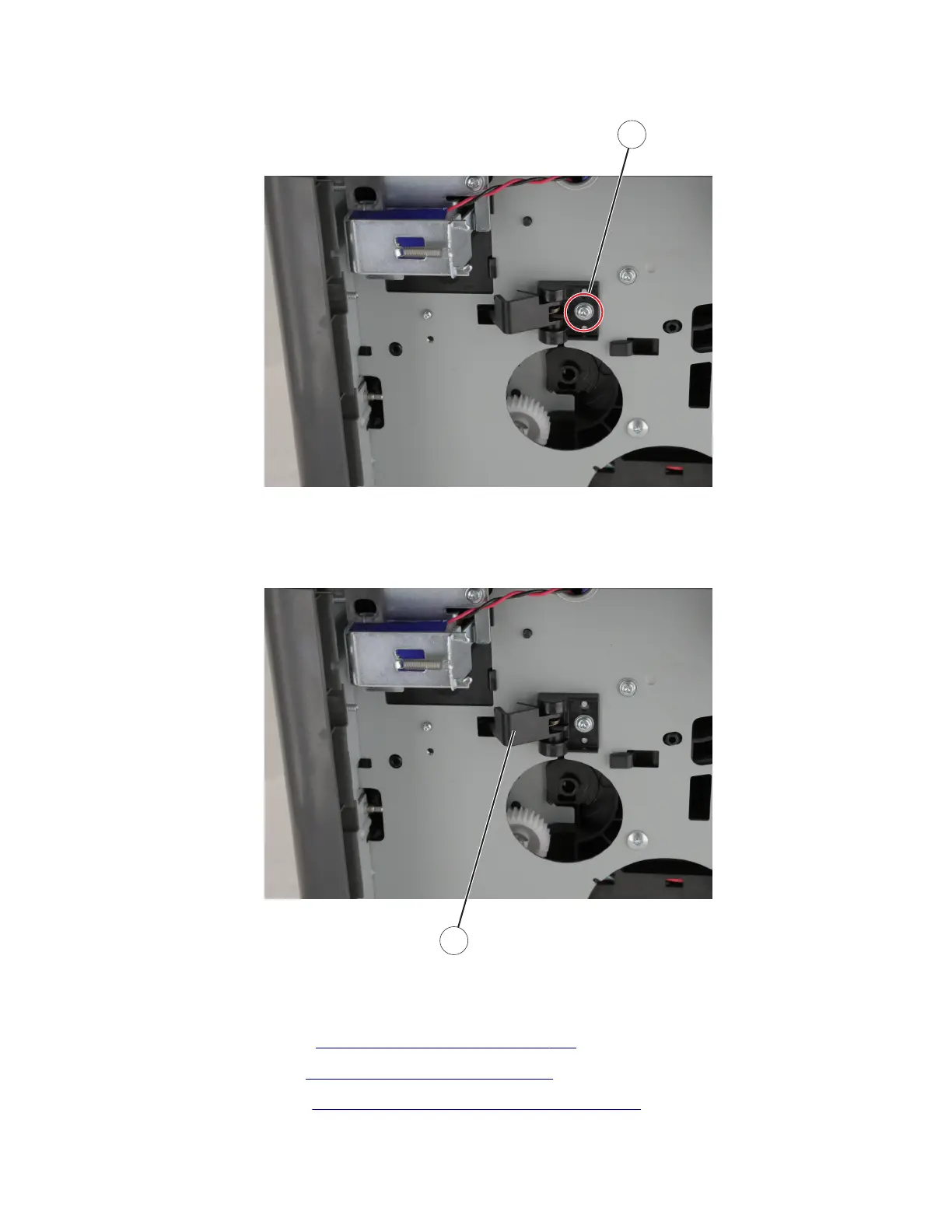

4 Remove the screw (C).
C
5 Remove the fuser actuator.
Installation note: To test if the actuator is properly installed, push, and then release the actuator (A). The
actuator should bounce back.
A
Reverse solenoid removal
1 Remove the right cover. See “Right cover removal” on page 186.
2 Remove the left cover. See “Left cover removal” on page 177.
3 Remove the rear cover. See “Rear door and cover removal” on page 234.
4600-830, -835, -895
Parts removal
183
