Removal procedures
Keep the following tips in mind as you replace parts:
• Some removal procedures require removing cable ties. You must replace cable ties during reassembly to
avoid pinching wires, obstructing the paper path, or restricting mechanical movement.
• Remove the toner cartridges, imaging kit, and trays before removing other printer parts. The imaging kit
must be carefully set on a clean, smooth, and flat surface. It must also be protected from light while out of
the printer.
• Disconnect all external cables from the printer to prevent possible damage during service.
• Unless otherwise stated, reinstall the parts in reverse order of removal.
• When reinstalling a part held with several screws, start all screws before the
final
tightening.
• For printers that have a soft power switch, make sure to unplug the power cord after powering
o.
Left side removals
Left cover removal
1 Open the front door.
2 Position the printer on its right side.

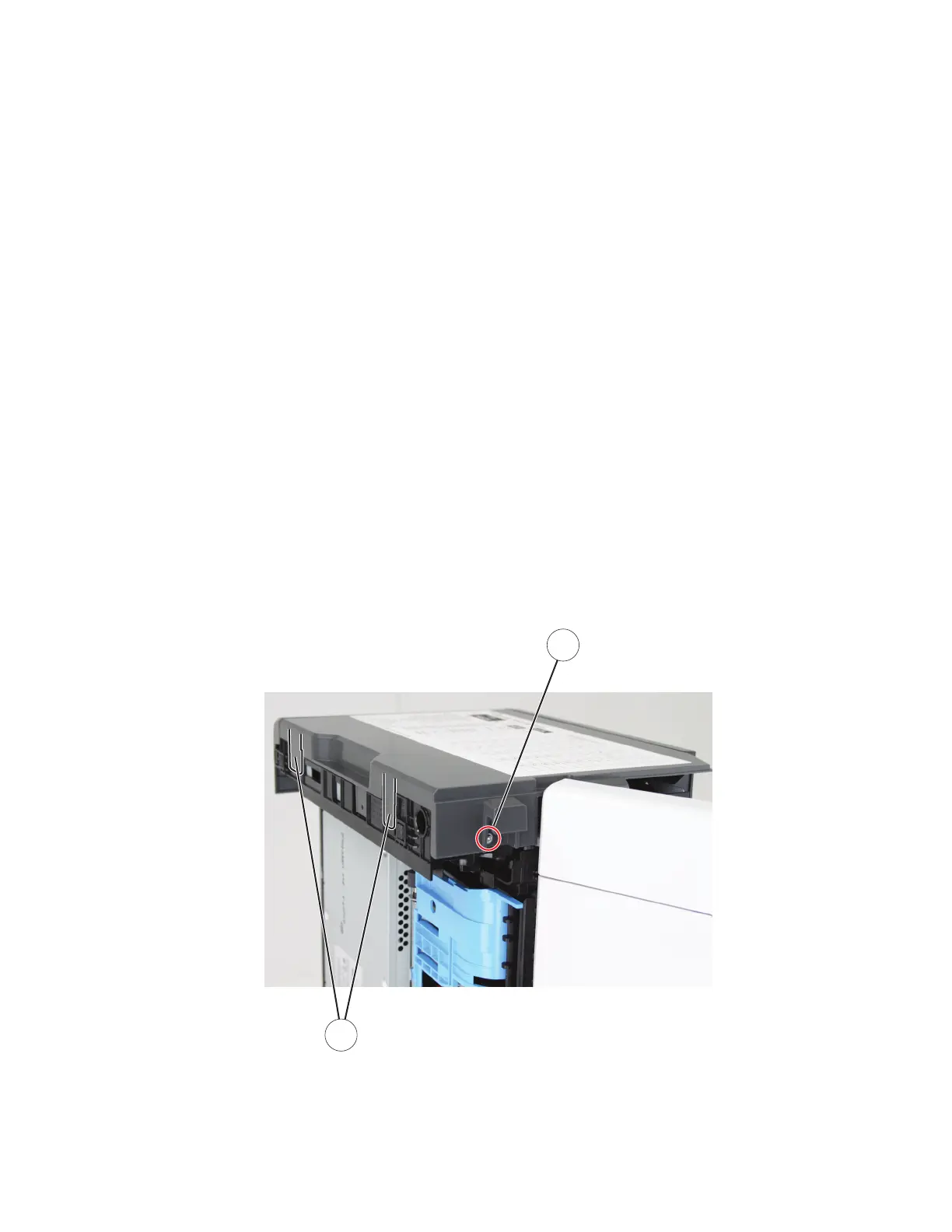

3 Remove the screw (A).
4 Release the latches (B).
A
B
5 Remove the left cover.
Note: The front cover hinders the removal.
4600-830, -835, -895
Parts removal
177
