Lexmark M3250

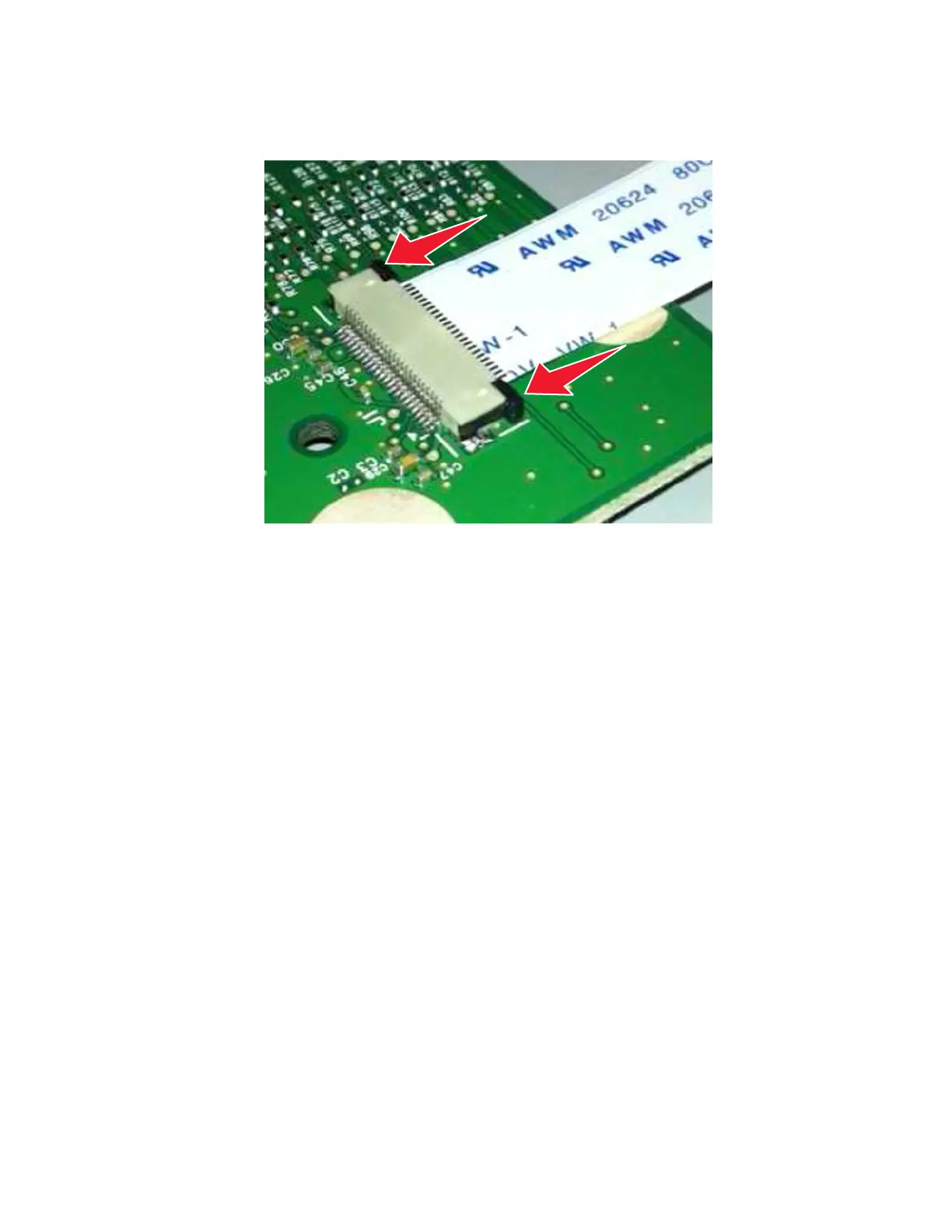

3 Slide the locking actuator towards the connector, locking the cable into place. The cable should not move
when this step is performed. If the cable moves, open the actuator, reposition the cable, and then close the
actuator to the down position.
4600-830, -835, -895
Parts removal
173
