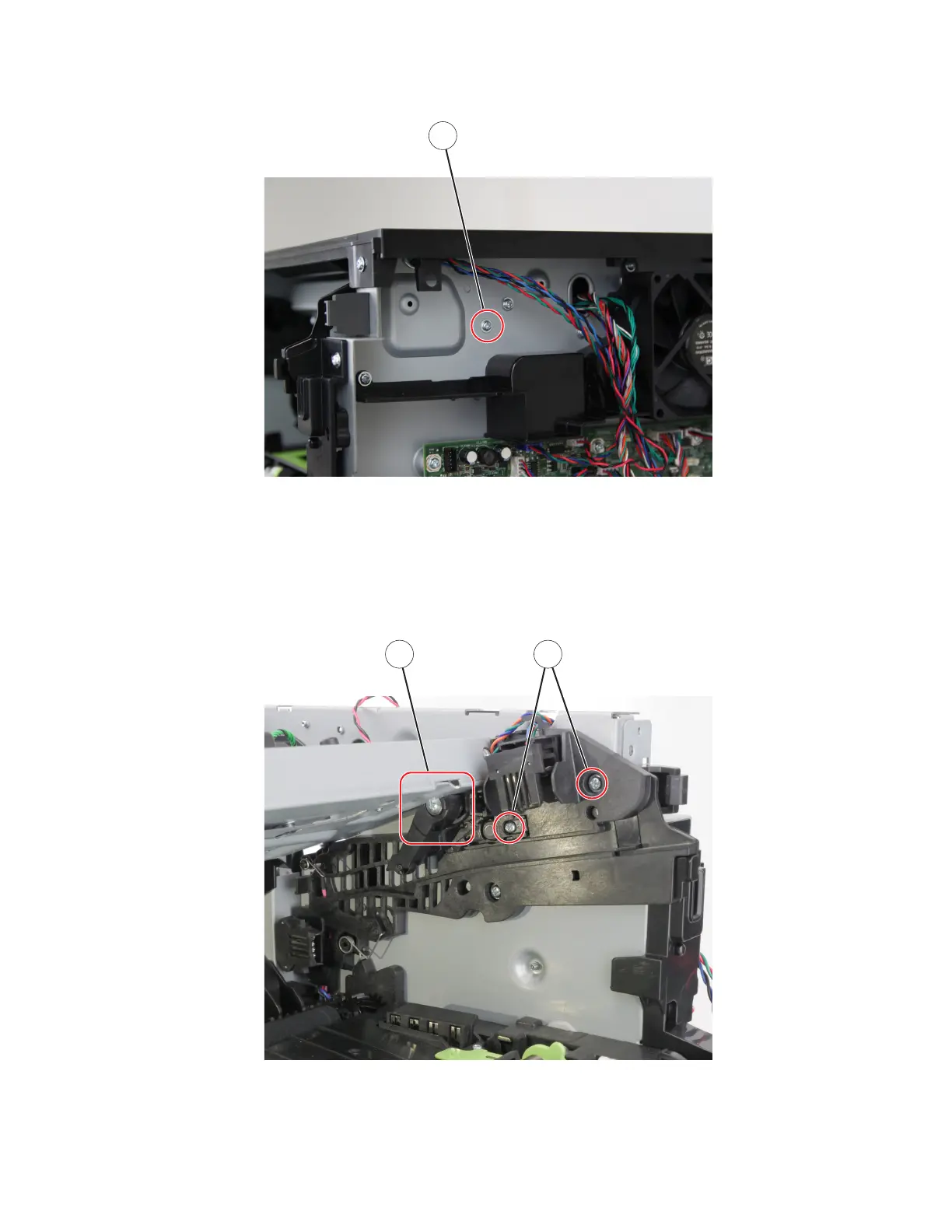

4 Remove the screw (A).
A
5 Remove the two screws (B), and then lower the right cartridge guide.
6 Slightly pull the right cartridge guide to detach it.
Note: The laser scanning unit frame (C) hinders the detachment.
Warning—Potential Damage: To avoid damaging the right cartridge guide, do not cut or disconnect the
cable at the rear of the cartridge guide. Leave the cartridge guide dangling.
BC
4600-830, -835, -895
Parts removal
