Actions Yes No
Step 4

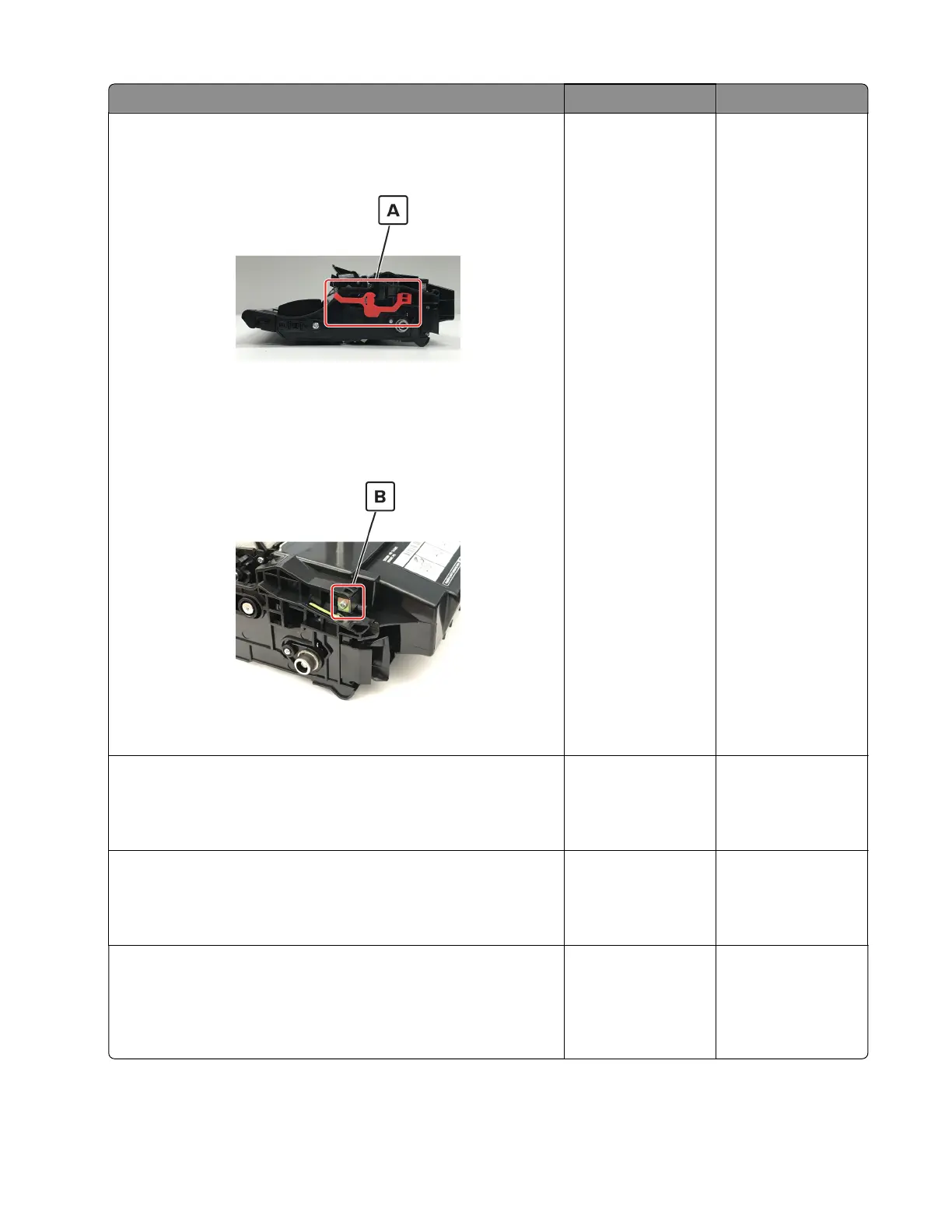

a Remove any packing material left on the imaging unit, including
the red separator plastic (A).
Note: You may need a pair of pliers to remove a piece of
broken plastic inside the imaging unit.
b Check the charge roller contact (B) on the right side of the
imaging unit for damage and contamination.
Is the charge roller contact damaged and contaminated?
Go to step 5. Go to step 6.
Step 5
Repair or replace the charge roller contact on the imaging unit.
Does the problem remain?
Go to step 6. The problem is
solved.
Step 6
Replace the imaging unit.
Does the problem remain?
Go to step 7. The problem is
solved.
Step 7
Make sure that connection JPS1 on the controller board and the
connections on the power supply are properly connected.
Are the connections properly connected?
Go to step 9. Go to step 8.
4600-830, -835, -895
Diagnostics and troubleshooting
28
