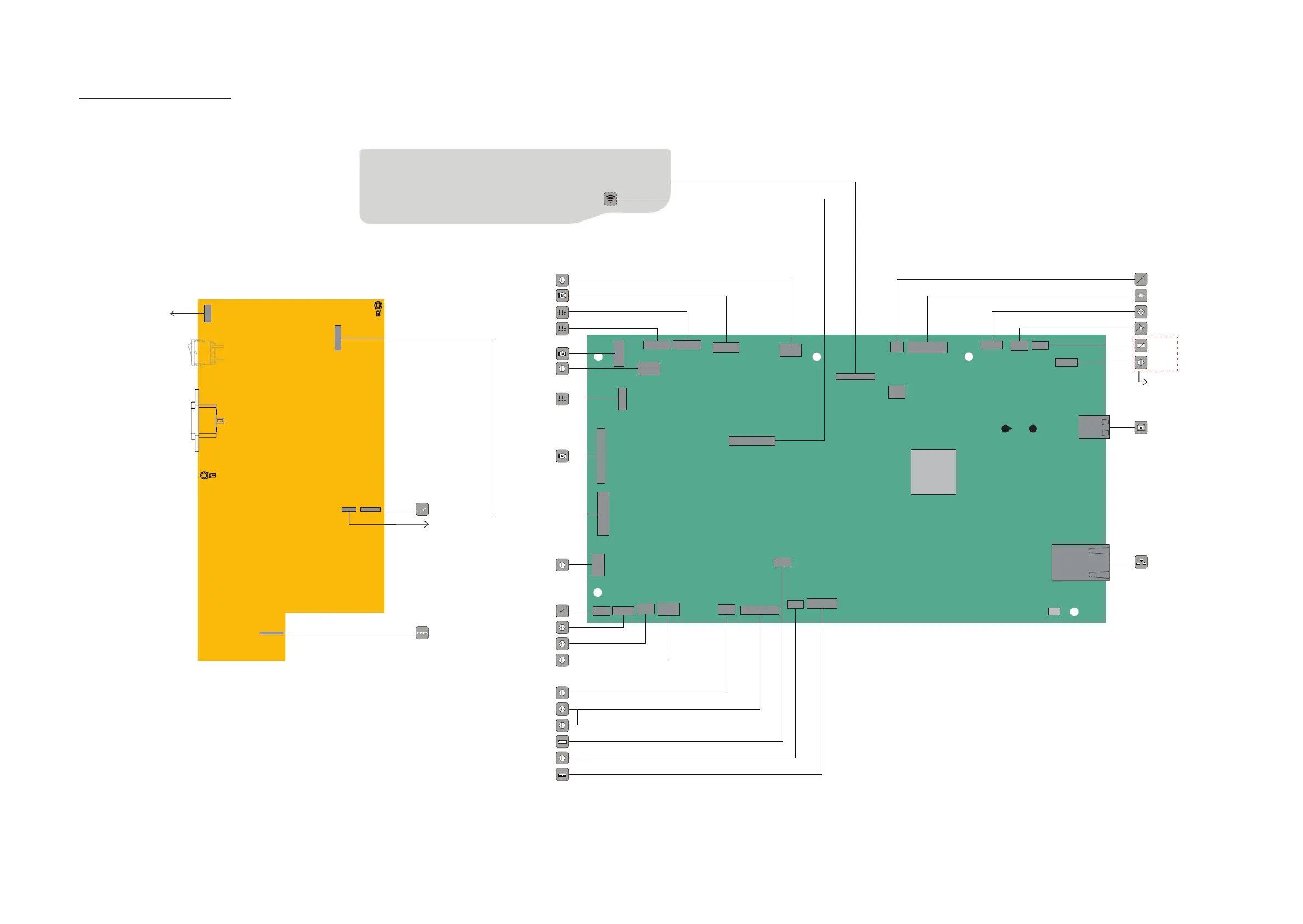

WIRING DIAGRAM
B2650, MS621
JUSBD1
JWIFI1
JEXIT1
JTHM1
JFAN1
JNRW1
JPH1
JDUPSOL1
J4
JBARR1
JCART1
JDRC2JDRC1
JLIFT1
JCVR1
14_JCTLS1O0
JMTR1
JPSU1
JACM1
JMPFSOL1 JTPRES1
JMPFPP1
JP_PRE1
JINDEX1
JDUPPI1
JTDS1
JFUSB1
JOPT1
JRESET1
JPHY1
JUICC24
MOTOR
(LIFT/PICK)
MAIN MOTOR
SENSOR
(NARROW)
FAN
PRINTHEAD
FUSER
ASSEMBLY
USB
MALE
PLUG
ETHERNET
SENSOR
(MPF PAPER PRESENT)
SENSOR
(DUPLEX)
SENSOR
(INPUT)
MPF SOLENOID
SENSOR
(TRAY PRESENT)
SENSOR
(PAPER PRESENT)
SENSOR
(INDEX)
THUMB
DRIVE
TRAY OPTIONS
AUTO CONNECT
SENSOR
(COVER OPEN)
SENSOR
(TRAILING EDGE)
IMAGING UNIT
CONTACTS
(OPC & CHARGE)
TRANSFER ROLL
SPRING
FUSER
ASSEMBLY
CONTROL PANEL
PCN5
PCN1
PCN2PCN3
PCN4
Sw1
PCN6
PCN7
PCN7
SENSOR
(TONER DENSITY)
PCN 5
CARTRIDGE
SMART CHIP CONTACT
IMAGING UNIT
SMART CHIP CONTACT
MOTOR
(CARTRIDGE)
SENSOR
(CARTRIDGE
BARREL)
SOLENOID
(REVERSE)
TONER LEVEL
SENSING
TONER LEVEL
SENSING
POWER SUPPLY UNIT
