Actions Yes No
Step 5

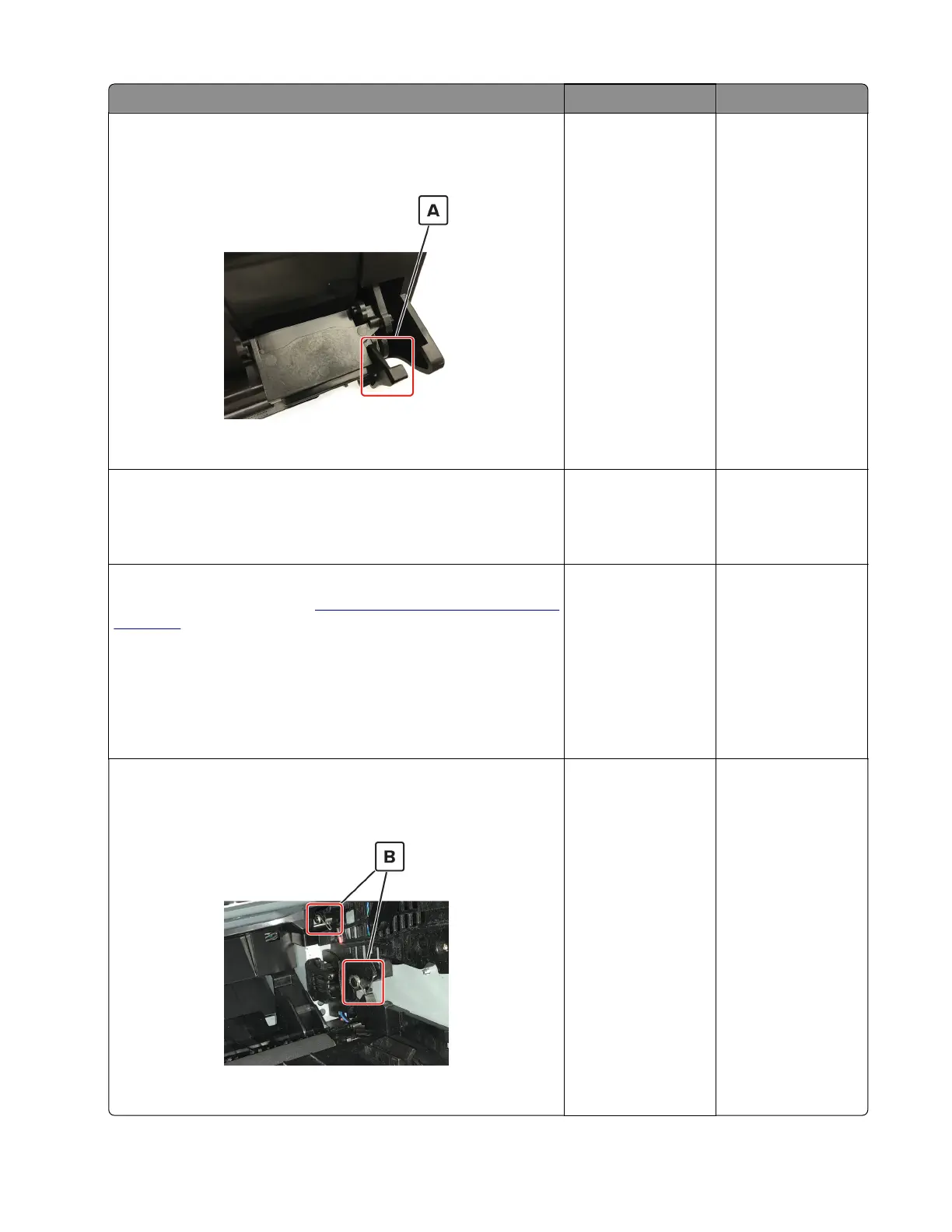

Check the shutter tab (A) on the toner cartridge for signs of
damage.
Is the shutter tab damaged?
Go to step 6. Go to step 7.
Step 6
Replace the imaging unit and the toner cartridge.
Does the problem remain?
Go to step 7. The problem is
solved.
Step 7
Clean the printhead lens. See
“Cleaning the printhead lenses” on
page 257.
Note: This is applicable only to models installed with a galvo
LSU. To determine whether the LSU is galvo, check the serial
number of the printer. The sixth digit character assigned should
be in the 0–9 or B–N range (Example: 4514 20HH 007CR).
Does the problem remain?
Go to step 8. The problem is
solved.
Step 8
Check if the imaging unit contacts (B) are contaminated or bent out
of proper position.
Are the contacts contaminated or bent out of proper position?
Go to step 9. Go to step 10.
4600-830, -835, -895
Diagnostics and troubleshooting
57
