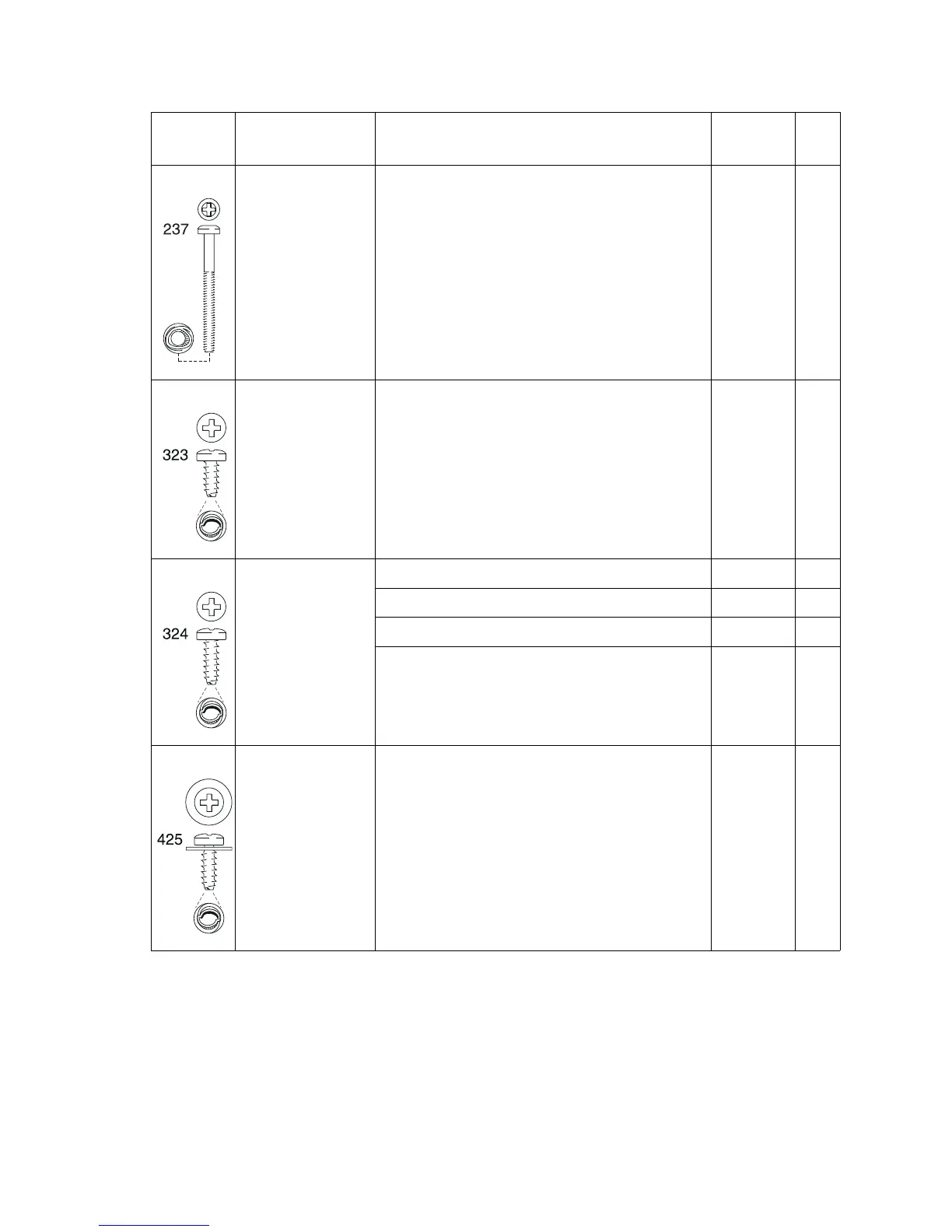

4-8 Service Manual
4060-xxx
M3x28 mm Taptite
Panhead
developer drive ground (bottom hole) attach 1
M3.5x8 mm Plastite
Thread Forming
autocompensator mounting 3
M3.5x10 mm
Plastite Thread
Forming
right side cover mounting 1
right side frame to pan attach 3
left side frame to pan attach 1
right side frame to right side cover attach 1
M3.5x12 mm
Plastite Thread
Forming with
washer
printhead to EP frame mounting 3
Reference
number
Screw type Location Purpose Qty
