GXT5 Description
4
MODEL NUMBER NOMINAL POWER RATING @ 230 V INPUT
GXT5-3000IRT2UXL*
3000 VA/3000 W
GXT5-3000IRT2UXLE
GXT5-3KL620RT2UXL 3000 VA/2700 W
GXT5-3KL630RT2UXL 3000 VA/3000 W
GXT5-5000IRT5UXLN*
5 kVA/5 kWGXT5-5000IRT5UXLE
GXT5-5000HVRT5UXLN*
GXT5-8000IRT5UXLN*
8 kVA/8 kWGXT5-8000IRT5UXLE
GXT5-8000HVRT5UXLN*
GXT5-10KIRT5UXLN*
10 kVA/10 kWGXT5-10KIRT5UXLE
GXT5-10KHVRT5UXLN*
GXT5-16KIRT9UXLN*
16 kVA/16 kW
GXT5-16KIRT9UXLE
GXT5-20KIRT9UXLN*
20 kVA/20 kW
GXT5-20KIRT9UXLE
*Only these models are available in the ASIA PACIFIC region.
1.2. Front Panels
The various GXT5 models have the same general appearance, with the main dierence being the receptacle
types on the rear panel. Figure 1-1 below, shows the 5-kVA to 10-kVA model in a tower and a rack conguration.
When mounted in a rack, all units are turned 90 degrees.

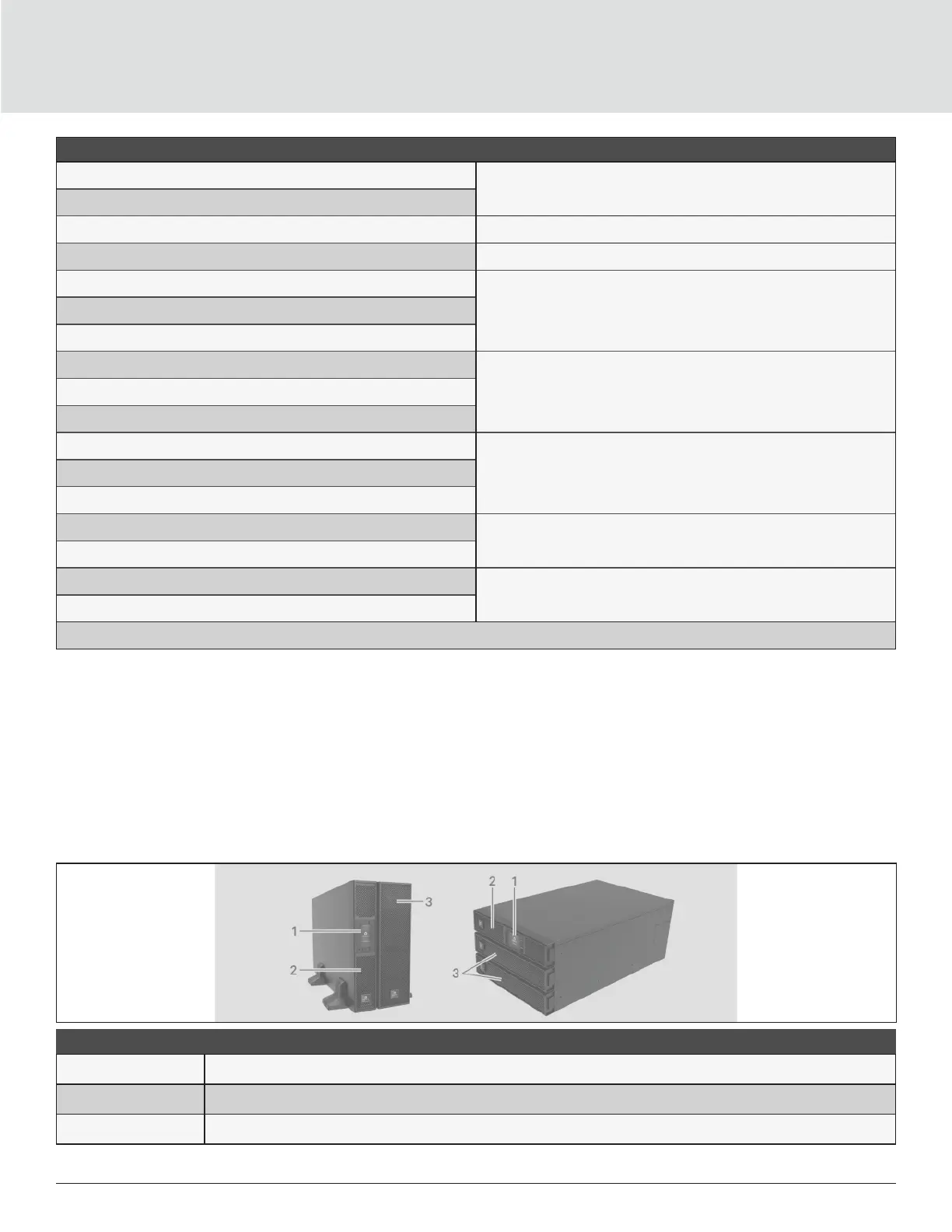

Figure 1-1 Front View
ITEM DESCRIPTION
1 Operation/Display panel
2 Upper bezel
3 Lower bezel/battery-access door
