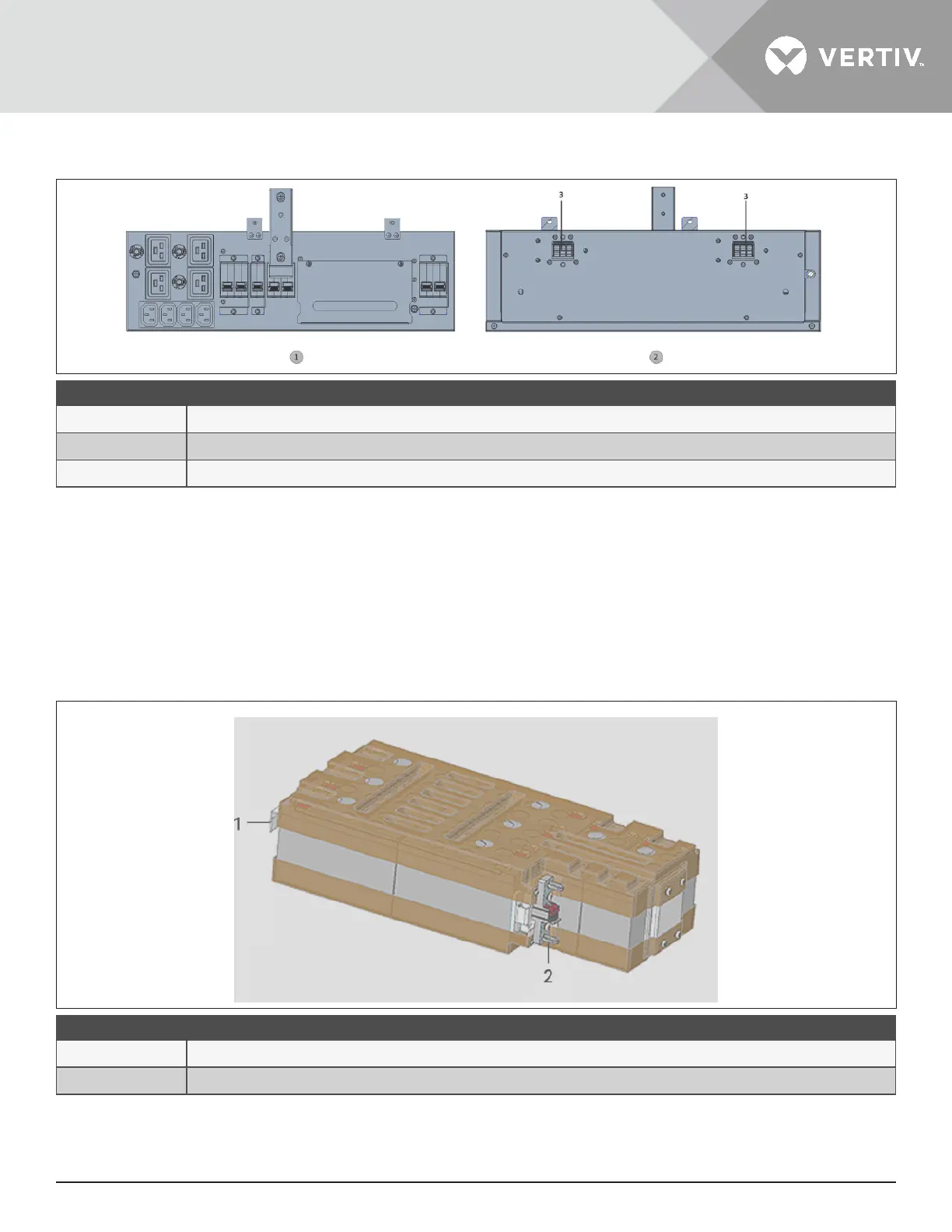

Figure 1-10 PD5-CE10HDWRMBS for GXT5-8000/10KIRT5UXLN (XLE)
ITEM DESCRIPTION
1 POD Panel view (on rear of unit)
2 POD inner-surface view
3 Quick connect
1.5. Internal Battery Packs
An example of the GXT5 internal battery packs is shown in Figure 1-11 below. They are located behind the
access door on the front of the UPS. 3-kVA and below units have 1 battery pack, 5-kVA and 10-kVA units have 2
battery packs, and 16-kVA to 20-kVA units have 4 battery packs..
Figure 1-11 Internal Battery Pack
ITEM DESCRIPTION
1 Handle
2 Connector

Liebert Vertiv GXT5 Specifications

General

Output Voltage	230V
Topology	Double Conversion Online
Frequency	50/60 Hz
Operating Temperature	0°C to 40°C
Dimensions	Varies by model
Weight	Varies by model
Form Factor	Rack/Tower
Battery Type	Valve Regulated Lead Acid (VRLA)
Communication Ports	USB, RS-232
Efficiency	Up to 95%
Typical Recharge Time	3 hours to 90%
Storage Temperature	-15°C to 40°C
Humidity	0% to 95% non-condensing
