Installation34
• Connecting to Terminal Blocks on 5-kVA and 6-kVA model on page 34.
• Connecting to Terminal Blocks on 8-kVA and 10-kVA models on page 34.
• Connecting to Terminal Blocks on 16-kVA and 20-kVA models on page 35
3. Re-install the cable-entry/conduit-box cover, and tighten the screws.
2.6.3. Connecting to Terminal Blocks on 5-kVA and 6-kVA model
These models oer a single type of I/O connection, 1-in 1-out common source. Figure 2-6 below, shows
the terminal block. Refer to the details in Terminal-block Connections on page 33, when making the
connections.

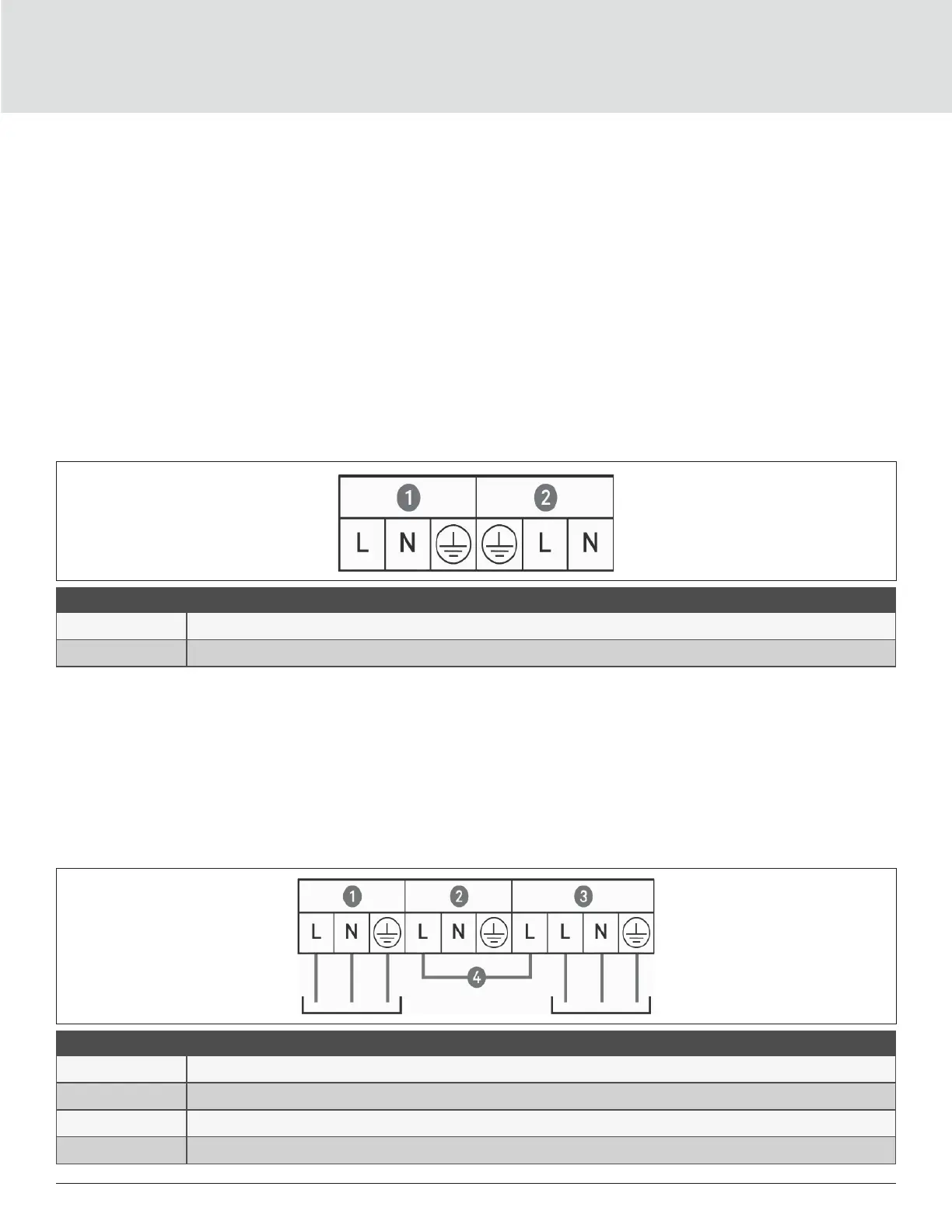

Figure 2-6 Terminal Block 5 kVA and 6 kVA Models
ITEM DESCRIPTION
1 Output
2 Input
2.6.4. Connecting to Terminal Blocks on 8-kVA and 10-kVA models
These models oer a single type of I/O connection. A single shorting cable ships installed on the on the terminal
block. Refer to the details in Terminal-block Connections on page 33 when making the connections. Figure
2-7 below, shows the shorting cable installed for a common-source connection.
Figure 2-7 Terminal Block 8 kVA to 10 kVA Models
ITEM DESCRIPTION
1 Output
2 Bypass
3 Input
4 Shorting cable (installed at factory)
