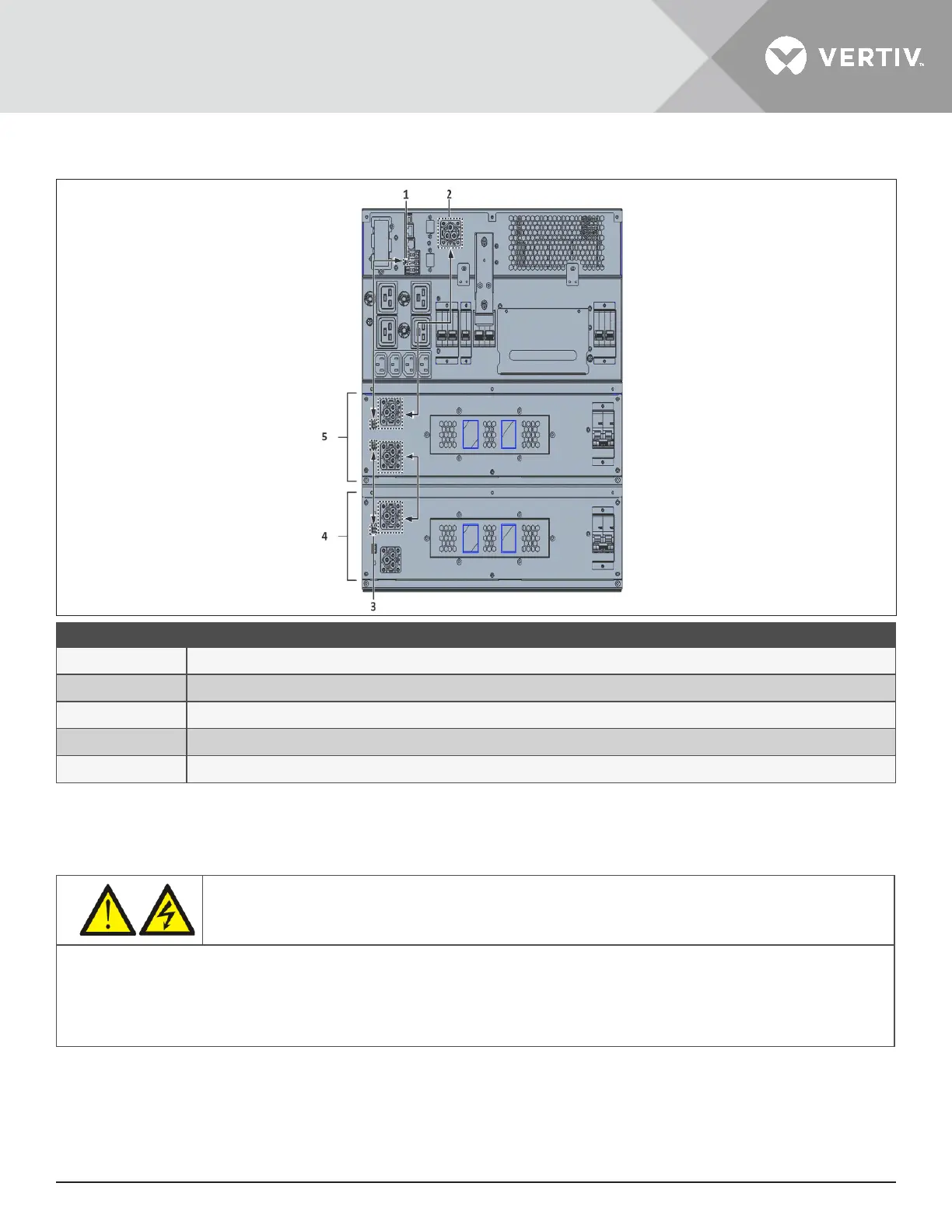

Figure 2-3 EBCs connected to the 8/10 K UPS
ITEM DESCRIPTION
1 EBC-detection dry-contact port (See Table 2-3 on page 33, for details.)
2 EBC connector
3 EBC-detection port
4 External battery cabinet
5 External battery cabinet
2.5. Installing a Power distribution Box
WARNING! Risk of electric shock
Can cause equipment damage, injury and death. Before beginning installation, verify that all external overcurrent
protection devices are open (Off), and that they are locked-out and tagged appropriately to prevent activation during
the installation, verify with a voltmeter that power is Off and wear appropriate, OSHA approved personal protective
equipment (PPE) per NFPA 70E. Failure to comply can cause serious injury or death. Before proceeding with installation,
read all instructions. Follow all local codes.
