Vertiv | Liebert® GXT5™ | Installer/User Guide 35
2.6.5. Connecting to Terminal Blocks on 16-kVA and 20-kVA models
These models oer a four types of I/O connection. One shorting cable (W01) ships installed on the terminal
block. Two additional shorting cables are included with the accessories to wire the dierent types Figure 2-8
below, shows the terminal block. Refer to the details in Terminal-block Connections on page 30, when making
the connections.
• Figure 2-8 below, shows the 3-in 1-out split-bypass connection
• Figure 2-9 below, shows the 3-in 1-out common-source connection
• Figure 2-10 on the next page, shows the 1-in 1-out split-bypass connection
• Figure 2-11 on the next page,, shows the 1-in 1-out common-source connection

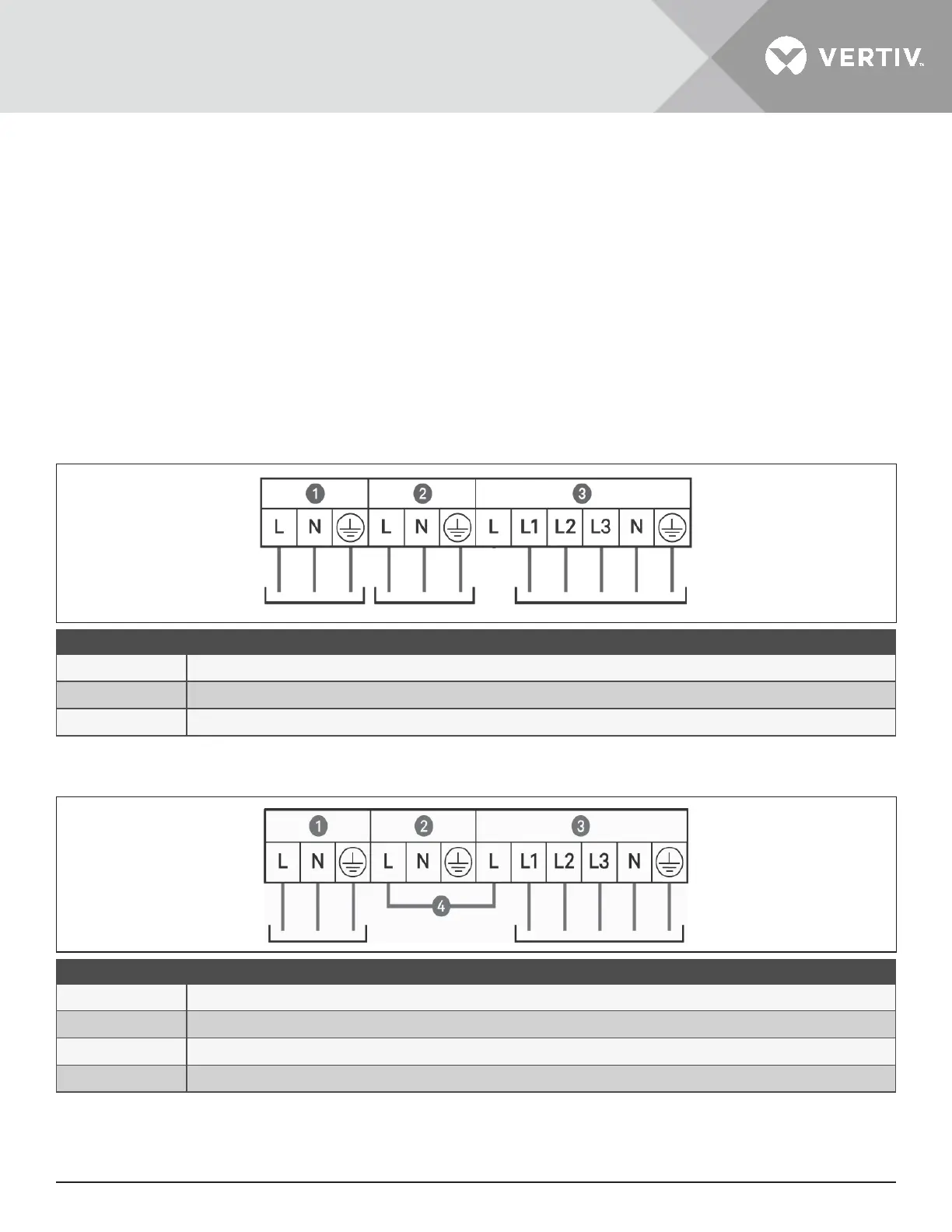

Figure 2-8 3-in 1-out split-bypass connection
ITEM DESCRIPTION
1 Output
2 Bypass
3 Input
Figure 2-9 3-in 1-out Common-source Connection, 16-kVA and 20-kVA models
ITEM DESCRIPTION
1 Output
2 Bypass
3 Input
4 Shorting cable (W01), installed at factory

Liebert Vertiv GXT5 Specifications

General

Output Voltage	230V
Topology	Double Conversion Online
Frequency	50/60 Hz
Operating Temperature	0°C to 40°C
Dimensions	Varies by model
Weight	Varies by model
Form Factor	Rack/Tower
Battery Type	Valve Regulated Lead Acid (VRLA)
Communication Ports	USB, RS-232
Efficiency	Up to 95%
Typical Recharge Time	3 hours to 90%
Storage Temperature	-15°C to 40°C
Humidity	0% to 95% non-condensing
