Liebert Vertiv GXT5 User Manual

GXT5 Description
20
1.8.2. Bypass Mode
Bypass mode supplies power to the load from the bypass source (utility power) if an overload or fault occurs
during normal operation. On the front-panel display, the run indicator (green) is ON, the alarm indicator (yellow)
is ON, and the buzzer beeps once each seconds. The LCD “Flow” screen displays “On Bypass.” Figure 1-15.
shows the diagram of bypass mode.
• If utility power fails or if the utility voltage goes outside of the permissible range during bypass-mode-
operation, the UPS shuts down and no output is supplied to the load.

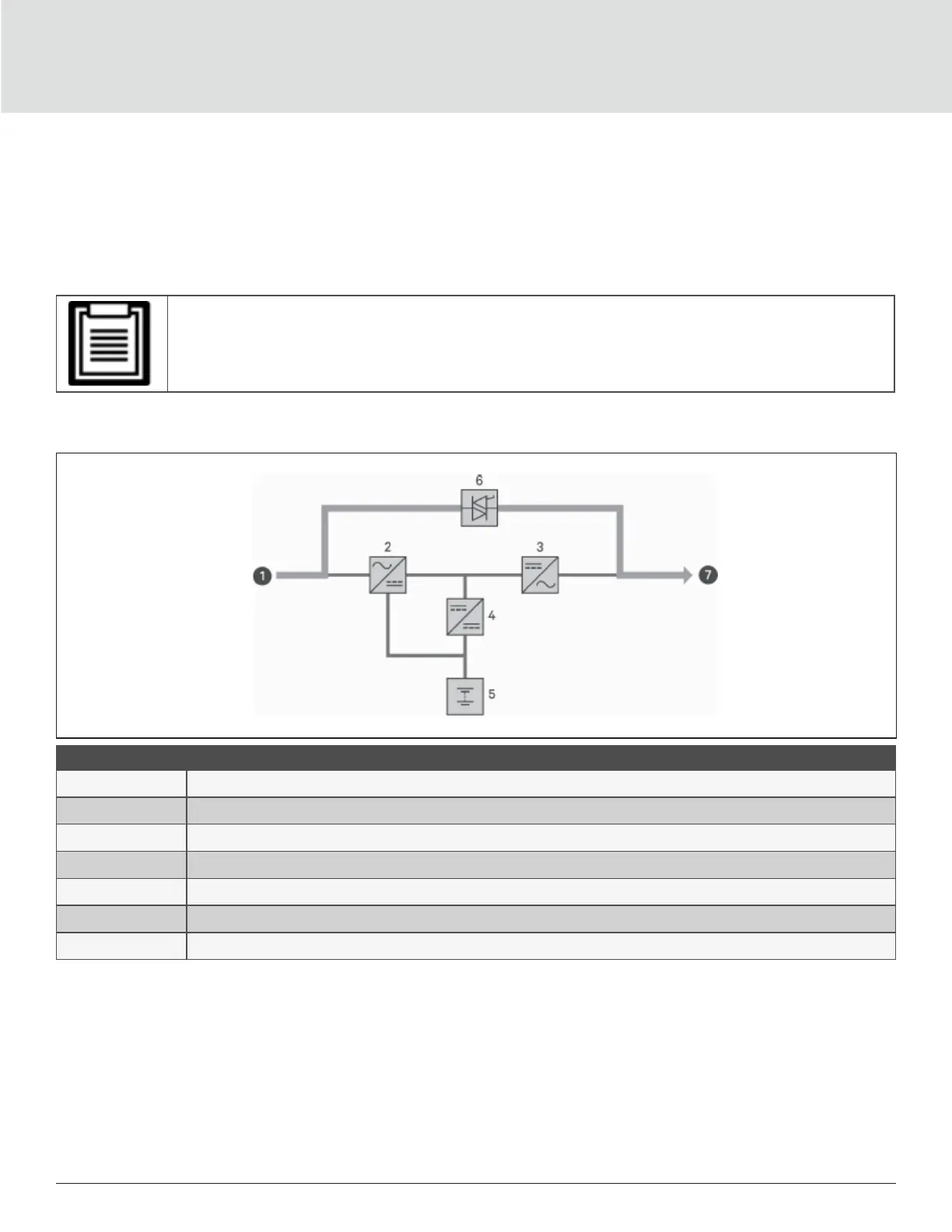

Figure 1-15 Bypass-mode Operation
ITEM DESCRIPTION
1 Mains/Utility input (by-pass input)
2 Rectier/PFC
3 Inverter
4 Battery charger
5 Battery
6 Bypass static switch
7 UPS output

Liebert Vertiv GXT5 Specifications

General

Output Voltage	230V
Topology	Double Conversion Online
Frequency	50/60 Hz
Operating Temperature	0°C to 40°C
Dimensions	Varies by model
Weight	Varies by model
Form Factor	Rack/Tower
Battery Type	Valve Regulated Lead Acid (VRLA)
Communication Ports	USB, RS-232
Efficiency	Up to 95%
Typical Recharge Time	3 hours to 90%
Storage Temperature	-15°C to 40°C
Humidity	0% to 95% non-condensing
