1.6. Battery Cabinet
Optional battery cabinets are available for the UPS, and include a single battery-connector cable. Up to 10
battery cabinets can be connected in parallel to the UPS, and up to 6 can be detected using EBC - detection.
See Table 7-8
on page 116 and Table 7-9 on page 117 for the cabinet specications. For approximate
battery run times with additional EBCs, see Battery Run Times on page 118. See Installing External Battery
Cabinets on page 26, to connect the cabinets.

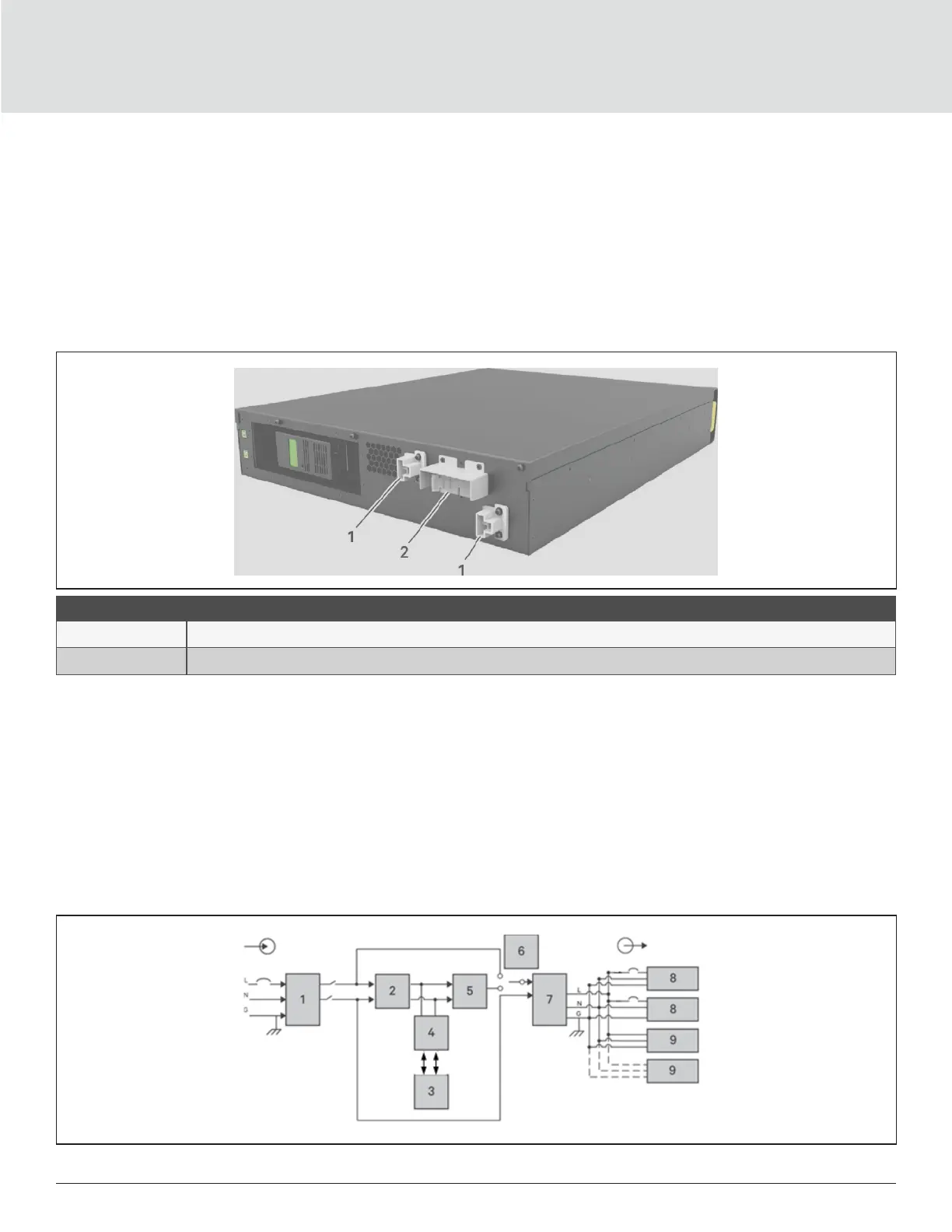

Figure 1-12 Battery Cabinet
ITEM DESCRIPTION
1 Battery connectors
2 Isolation breaker
1.7. Major Internal Components and Operating Principle
Figure 1-13 below, shows the UPS operating principle. Table 1-2 below describes the function of the major
components in the UPS.
Figure 1-13 Basic Operating Principle Diagram
0.75 kVA and 3 kVA models

Liebert Vertiv GXT5 Specifications

General

Output Voltage	230V
Topology	Double Conversion Online
Frequency	50/60 Hz
Operating Temperature	0°C to 40°C
Dimensions	Varies by model
Weight	Varies by model
Form Factor	Rack/Tower
Battery Type	Valve Regulated Lead Acid (VRLA)
Communication Ports	USB, RS-232
Efficiency	Up to 95%
Typical Recharge Time	3 hours to 90%
Storage Temperature	-15°C to 40°C
Humidity	0% to 95% non-condensing
