Liebert Vertiv GXT5 User Manual

GXT5 Description
10

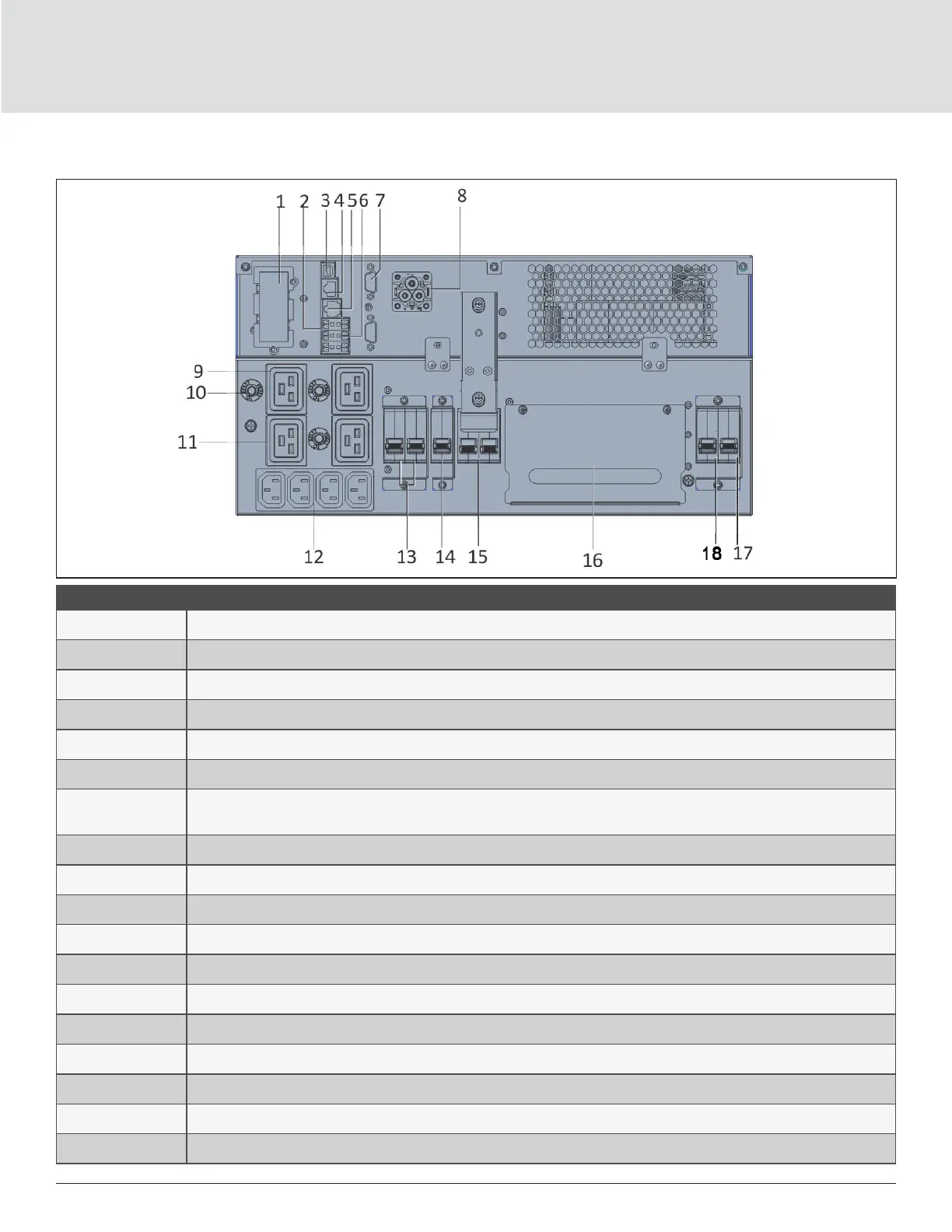

Figure 1-7 GXT5-8000/10KIRT5UXLN (XLE) Rear Panel
ITEM DESCRIPTION
1 Liebert® IntelliSlot™ port
2 Terminal block communication connectors
3 USB port
4 RS-485 port - RJ-45 connection used for external temperature sensors
5 RS-232 port - RJ-45/RJ-11 connection used for command line interface
6 REPO connector
7
DB9 ports - Used for communication when operating in a parallel system See Section 2.8. Installing a
Parallel System
8 External-battery-cabinet connector
9 C19 output receptacles (x3)
10 Overload protector, 15-A (x3)
11 Programmable C19 output receptacle
12 Programmable C13 output receptacles
13 Programmable output breakers
14 Output circuit breaker - Controls terminal block output and non-programmable output receptacles
15 Maintenance bypass breaker
16 Removable junction box with cable entry for hard-wire I/O
17 Input circuit breaker
18 Bypass circuit breaker

Liebert Vertiv GXT5 Specifications

General

Output Voltage	230V
Topology	Double Conversion Online
Frequency	50/60 Hz
Operating Temperature	0°C to 40°C
Dimensions	Varies by model
Weight	Varies by model
Form Factor	Rack/Tower
Battery Type	Valve Regulated Lead Acid (VRLA)
Communication Ports	USB, RS-232
Efficiency	Up to 95%
Typical Recharge Time	3 hours to 90%
Storage Temperature	-15°C to 40°C
Humidity	0% to 95% non-condensing
