Installation32
Table 2-2 Branch circuit breaker rating
UNIT RATING RECOMMENDED BREAKER RATING
750 VA
10 A1000 VA
1500 VA
2000 VA 16 A
3000 VA 20 A
5 KVA 40 A
6 KVA 50 A
8 KVA
63 A
10 KVA
16 KVA
1-phase: 140 A
3-phase: 50 A
20 KVA
1-phase: 160 A
3-phase: 63 A

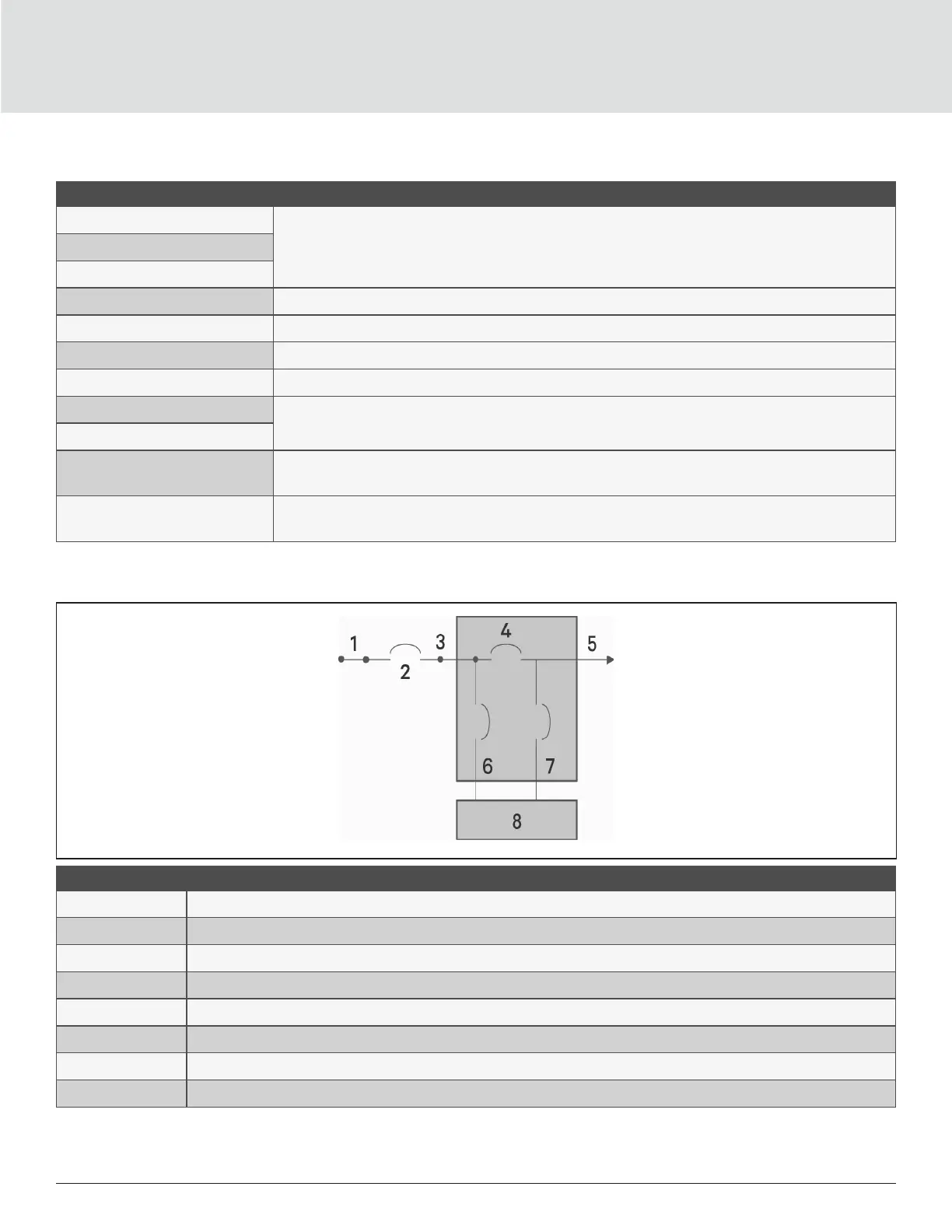

Figure 2-5 Circuit-breakers diagram
ITEM DESCRIPTION
1 Mains/Utility
2 External branch Circuit Breaker
3 Input
4 Maintenance Bypass Circuit Breaker
5 Output
6 Input Circuit Breaker
7 Output Circuit Breaker
8 UPS-PFC, battery inverter

Liebert Vertiv GXT5 Specifications

General

Output Voltage	230V
Topology	Double Conversion Online
Frequency	50/60 Hz
Operating Temperature	0°C to 40°C
Dimensions	Varies by model
Weight	Varies by model
Form Factor	Rack/Tower
Battery Type	Valve Regulated Lead Acid (VRLA)
Communication Ports	USB, RS-232
Efficiency	Up to 95%
Typical Recharge Time	3 hours to 90%
Storage Temperature	-15°C to 40°C
Humidity	0% to 95% non-condensing
