Mounting
For mounting on a LINAK actuator (LA27, LA31 or LA40), a mounting bracket is required.

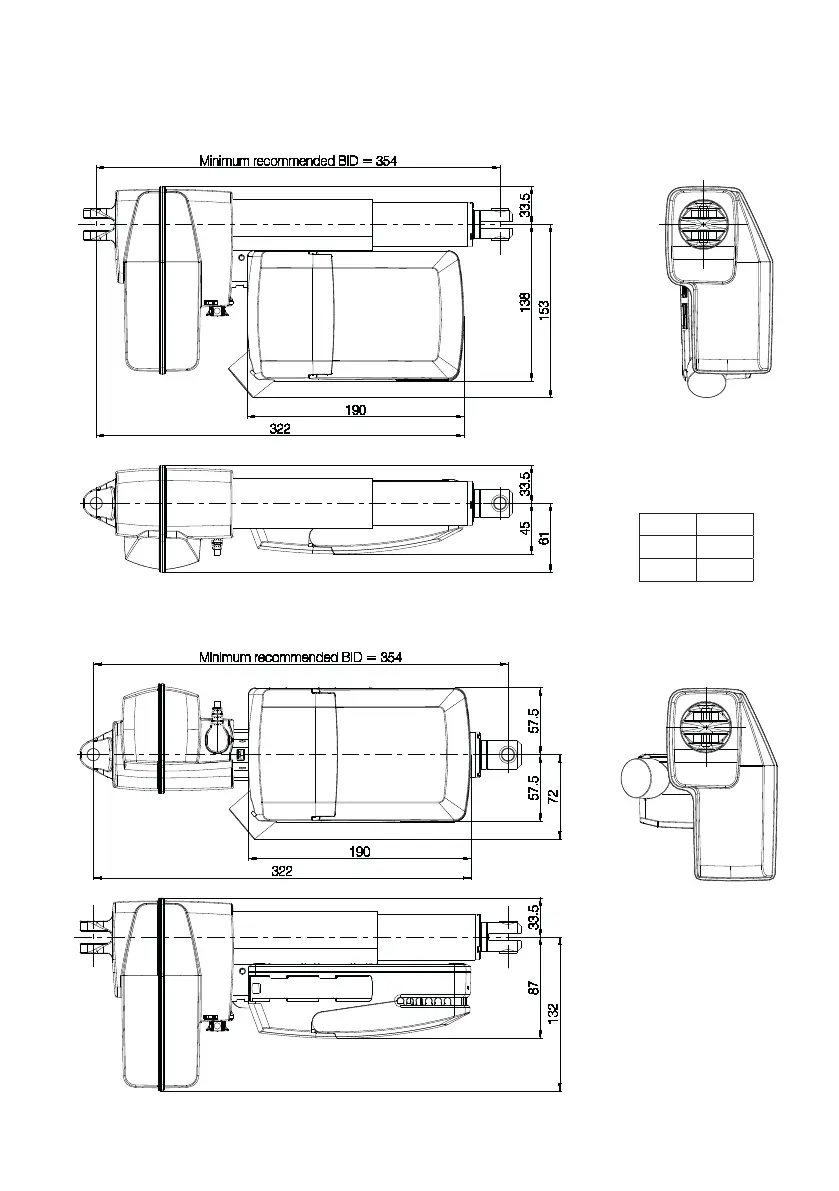

Dimensions – mounted with LA40
Drawing No.: 1013W4013
LA27 314
LA31 333
LA40 354
Min. built-in dimensions
