Page 194 of 295
The HB100 is an intelligent hand control with the LINAK
®
Weighing
Solution. It features a 2.4” colour display with a full navigation menu
keypad, thus allowing the display to be dynamic without physically
having to change the hand control. The HB100 will automatically scan
the system and only show the features available to create a user-friendly
experience.
The HB100 will be available with different software versions:
• HB110: The LINAK Weighing Solution. Together with the QLCI2, the
HB110 is capable of displaying the weight of a patient as well as
setting the Out Of Bed feature.
Usage
• Operation temperature: +5 °C to + 40 °C
• Storage temperature: -10 °C to + 50 °C
• Relative humidity: 20% to 80% - non-condensing
• Atmospheric pressure: 700 to 1060 hPa
• Height above sea level: Max. 3000 meters
• Approvals: IEC 60601-1:2005 + Amd.1:2012 (Consolidated version IEC 60601-1:2012 Ed. 3.1)
IEC 60601-1-2:2014 Ed. 4
• Compatibility: All OpenBus
TM
control boxes
• Flammability rating: V2
• Latex free: Yes
14. HB100 (MEDLINE
®
CARELINE
®
)

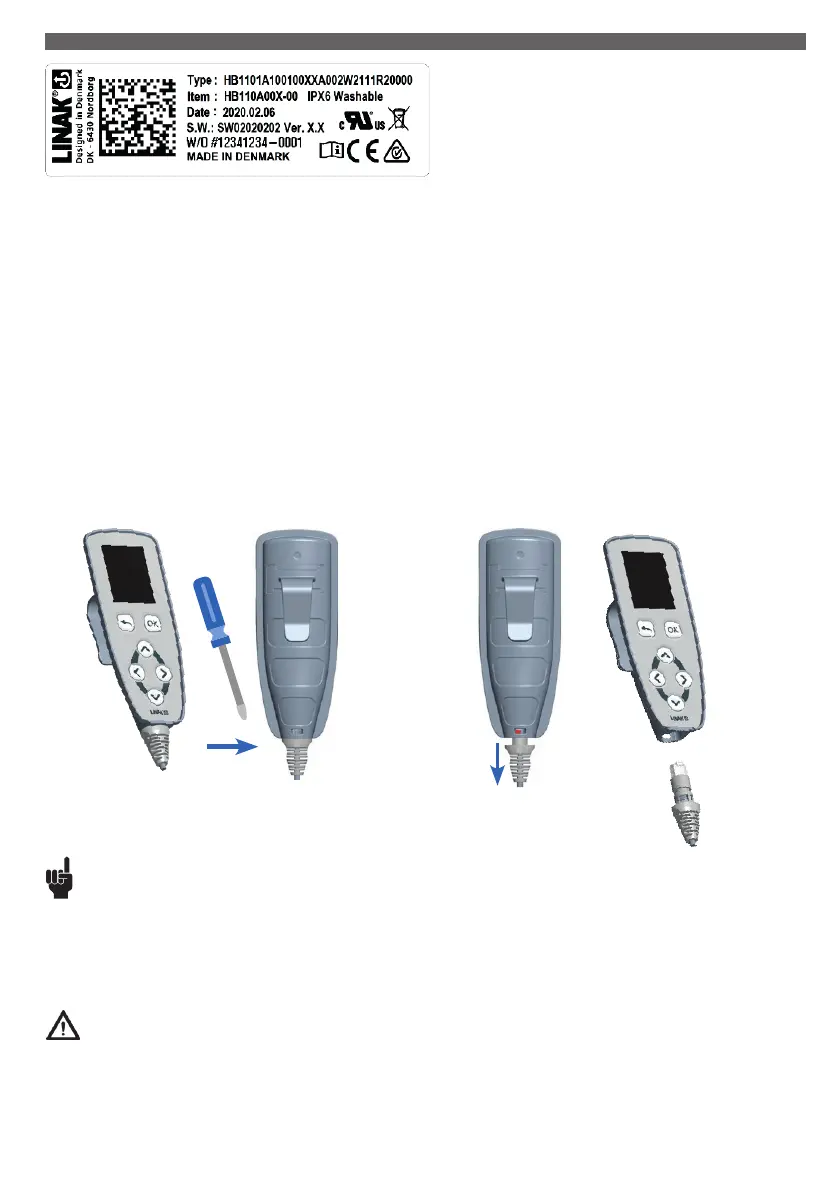

Replacing the cable
The cable for the HB100 can be replaced if damaged. To remove the cable, the cable lock must first be unlocked. This is done by moving the lock-pin
clockwise with a screwdriver or another small object, until a red marker shows. When inserting a new cable, the lock pin must be moved counter-
clockwise to secure a fastened cable connection.
A
B
C
D
1 2 3 4 5 6
E
F
7 8
1 2 3 4
A
B
C
D
E
General Surface Character:
Name:
Updated:
Producer:
General Tolerance:
Material:
Type:
No.:
Created by:
Approved by:
Modified by:
Product:
Color:
No. Of check dimensions (#):
Format:
Sheet:
Scale:
Volume:
Confidential: Property of LINAK A/S GROUP HEADQUARTER, DK-6430 NORDBORG, DENMARK Phone +45 73 15 15 15 ; FAX +45 74 45 80 48. Not to be handed over to, copied or used by third party.
WE IMPROVE YOUR LIFE
2D State:
3D State:
1034W9006-A1034w9006.asm-
Design/Iteration 38
-
Design/Iteration 5
-
- 100803 mm³1:103/3A3
2018-05-30-
Henrik A. Thomsen -
Henrik A. Thomsen-
--
Recommendations
• Keep the hand control upright when washing
• Do not submerge the hand control in water
• Unless otherwise specified or agreed with LINAK, the hand control is only intended to be used for LINAK systems
• When changing hand controls for OpenBus™ systems, the power must be switched off
• It is recommended to check the hand control and cable for damage and holes caused by violent handling before washing the application or at least
once a year.
Warnings
• Do not sit or lie on the hand control. It can cause unintended movement of the application
• The application manufacturer must write an end-user manual based on the LINAK user manual which also includes relevant warnings,
information on how to carry out regular inspection and a functionality description. End-users must be trained in all functions.
