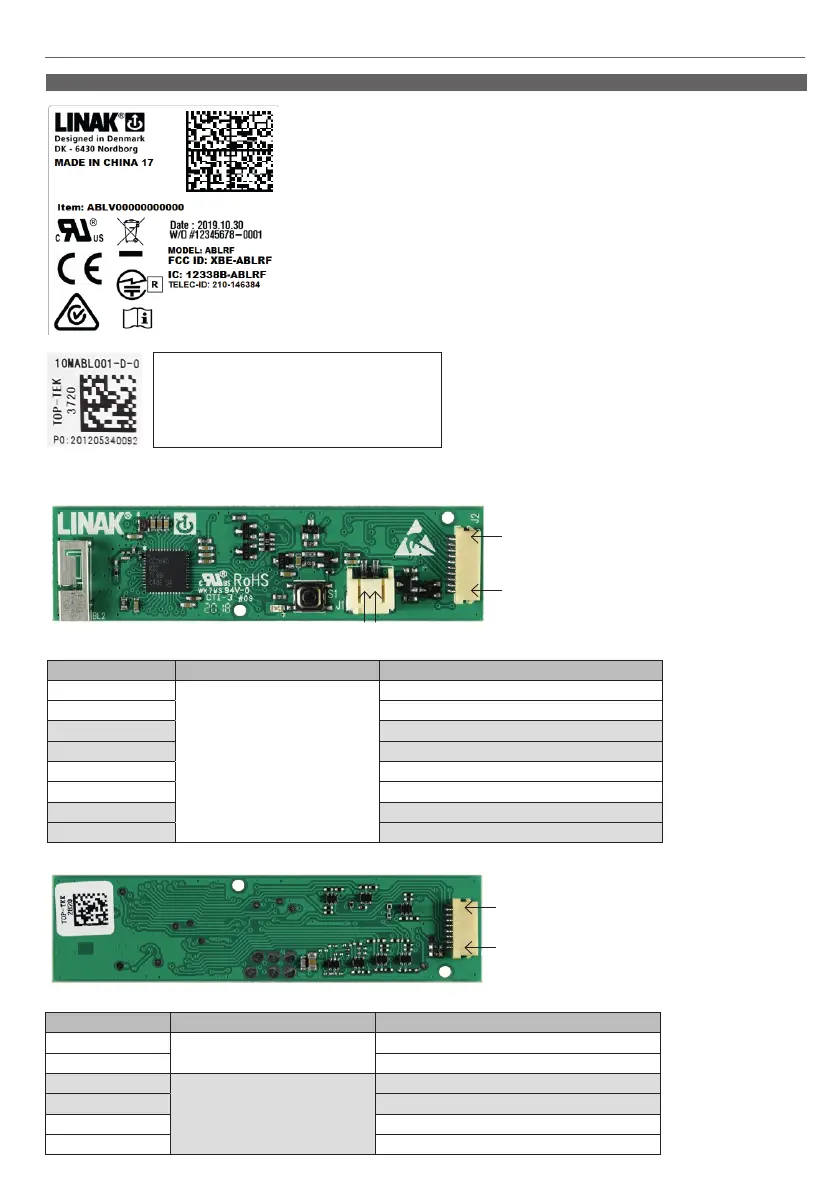

Page 180 of 295
6. Information on specific controls
With the small ABL print it is possible to convert analogue input to Bluetooth Low Energy.
The ABL print can be used as attendant control or hand control integrated in side rails in for instance
healthcare applications and offers easy access to different positioning functions.
Usage
• Operation temperature: +5 °C to +40 °C
• Storage temperature: -10 °C to +50 °C
• Compatibility: Compatible with LINAK Bluetooth Low Energy (BLE) control boxes.
Please contact LINAK.
• Relative humidity: 20% to 80% – non-condensing
• Atmospheric pressure: 700 to 1060 hPa
• Meters above sea level: Max. 3000 meters
• Approvals: IEC60601-1
ANSI/AAMI ES60601-1
CAN/CSA-22.2 No 60601-1
1. ABL (MEDLINE
®
CARELINE
®
)
Pin 2
Pin 1
Connectors on PCBA
J2
Pin 10
Pin 1
Top side
J1
Pin Connection Bluetooth Low Energy command (V0/V1/V2)
3 (input)
Active when connected to
pin 2 (GND)
I0/I10/I20
4 (input) I1/I11/I21
5 (input) I2/I12/I22
6 (input) I3/I13/I23
7 (input) I4/I14/I24
8 (input) I5/I15/I25
9 (input) I6/I16/I26
10 (input) I7/I17/I27
J2
Bottom side
J3
Pin 8
Pin 1
Pin Connection Bluetooth Low Energy command (V0/V1/V2)
2 (input) Active when connected to
pin 8 (GND)
I8/I18/I28
3 (input) I9/I19/I29
4 (output)
Voltage between this pin and pin 1 is
equal to supply voltage on J1 when
LED is active
LED1/LED11/LED21
5 (output) LED2/LED12/LED22
6 (output) LED3/LED13/LED23
7 (output) LED4/LED14/LED24
J3
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
