The item numbers for ordering the Cable Lock are:
• Item number: 0231007 (light grey) for one cable lock (1 piece).
• Item number: 0231037 (black) for one cable lock (1 piece).

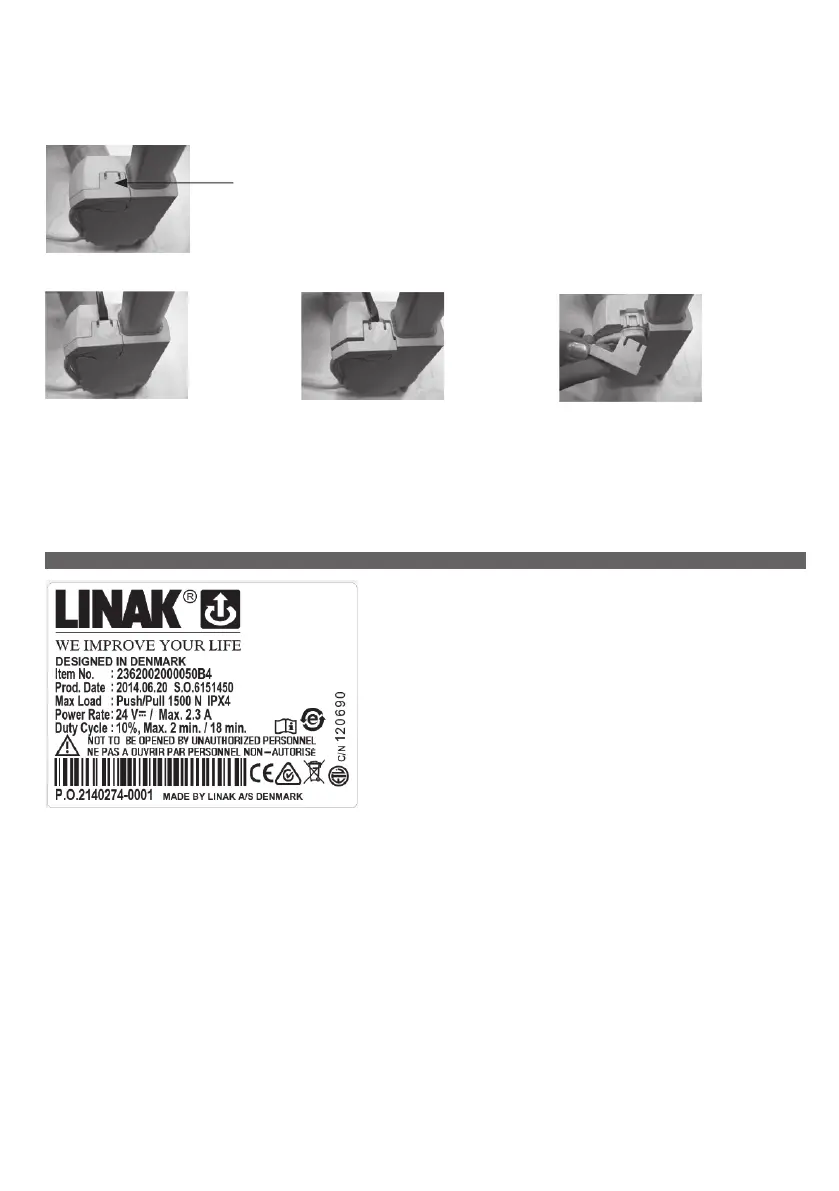

Below you see an instruction in how to mount and remove the cable lock from LA23.
a) Mount a cable lock:
Push down until the cable lock clicks into place.
Step 1:
Insert e.g. a screw-
driver at a 45 °C
angle as illustrated.
Step 2:
Turn the screwdriver
to release the cable
lock.
Step 3:
Now the cable lock
can be removed by
hand.
b) Cable lock removal
Note: When a cable lock has been removed, it is recommended to replace it with a new.
3. LA23 (MEDLINE
®
CARELINE
®
TECHLINE
®
)
The LA23 is a small and strong push/pull actuator (up to 2,500 N). The LA23 can be used
in various applications where size is important.
Some of the benefits the LA23 offers you are:
• Compact design
• High lifting force
• Exchangeable cables
Usage
• Duty cycle: 10 %, 2 minutes continuous use followed by 18 minutes not in use
• Usage temperature: +5 °C - +40 °C normal operating temp.
-30 °C - +50 °C according to test conditions: ISO 7176-9
• Storage temperature: -45 °C to +70 °C (according to ISO 7176-9)
• Compatibility: Compatible with LINAK control boxes. Please contact LINAK
• Approvals: IEC60601-1, ANSI/AAMI ES60601-1, CAN/CSA 22.2 No 60601-01
LA23IC is not approved according to the above.
LA23 in combination with CBD4, CBD5 & CBD6 has no approvals.
• Flammability rating: Enclosure UL94-V0
