Page 260 of 295

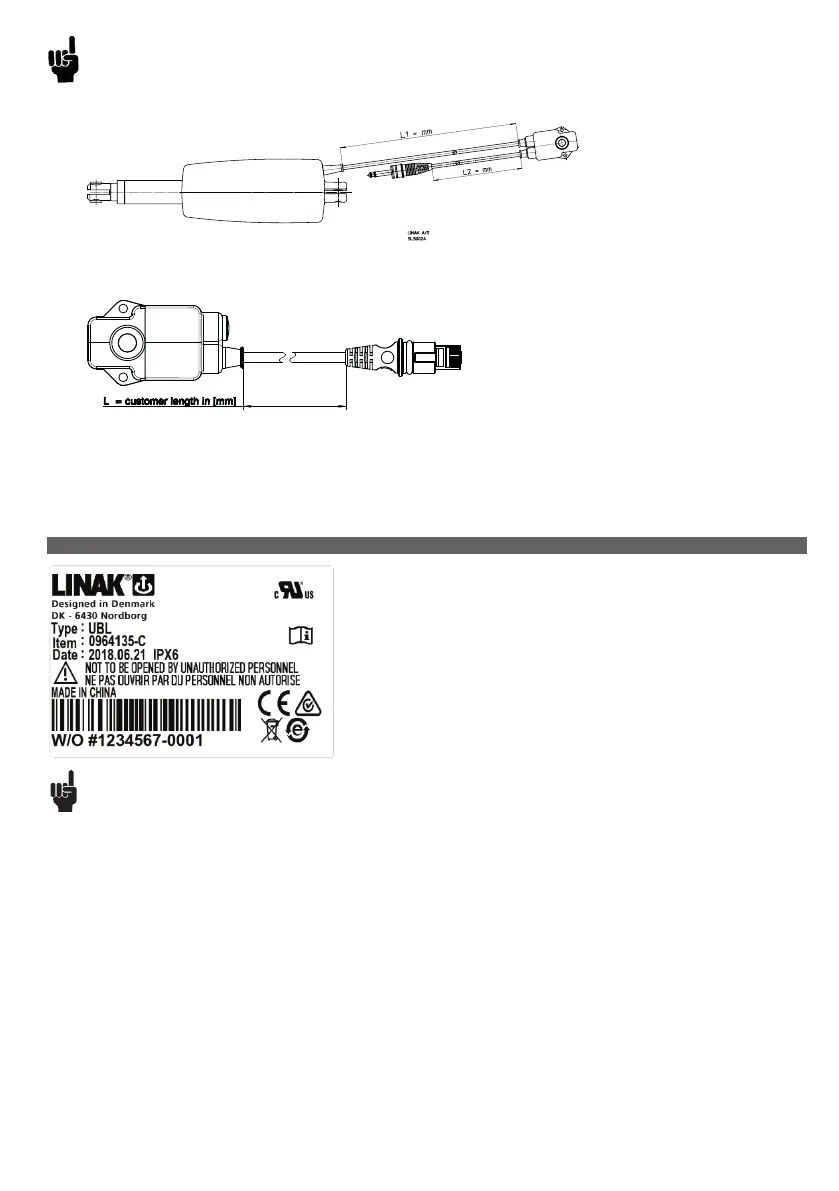

Cable length Safety Limit Switch
1
Cable length Signal Limit Switch
The Under Bed Light (UBL) can be mounted under the bed to provide a discrete guiding light
when the patient leaves the bed during night. With an Under Bed Light it is easy to switch
the light on and off by means of a handset or controlling it automatically with the Out of
Bed functionality of the MJB8.
18. Under Bed Light (MEDLINE
®
CARELINE
®
)
Usage
• Operating temperature: + 5 °C to + 40 °C
• Storage temperature: - 10 °C to + 50 °C
• Atmospheric pressure: 700 to 1060hPa (3000 m)
• Approvals: IEC 60601-1, ANSI/AAMI ES60601-1,
CAN/CSA-22.2 No 60601-1
• Connectivity: To be connected to MJB5 and MJB8
Recommendations
• The Under Bed Light (Item P/N.: 0964135) must be mounted on the bed with metal screws in order to maintain ESD protection.
The ultrasonic welded SLS is fully compatible with the SLS fitted with screws.
All outer dimensions as well as the activation point are unchanged.
