The LINAK Power Junction Box PJ2 offers two extra outputs for the COXX control box series.
Standardised technology, interfaces and compatibility like the new COXX control boxes.
The PJ2 for LINAK actuators is intended for the control of, for instance, hospital bed and surgery
tables movement.
18. PJ2 (MEDLINE
®
CARELINE
®
)
Usage
• Operating temperature: +5 °C to +40 °C
• Storage temperature: -10 °C to +50 °C
• Relative humidity: 20% to 80% - non-condensing
• Atmospheric pressure: 700 to 1060 hPa (3000 m)
• Meters above sea level: Max 2000 meters
• Approvals (pending): IEC60601-1, ANSI/AAMI ES60601-1, CSA CAN/CSA-C22.2 NO. 60601-1

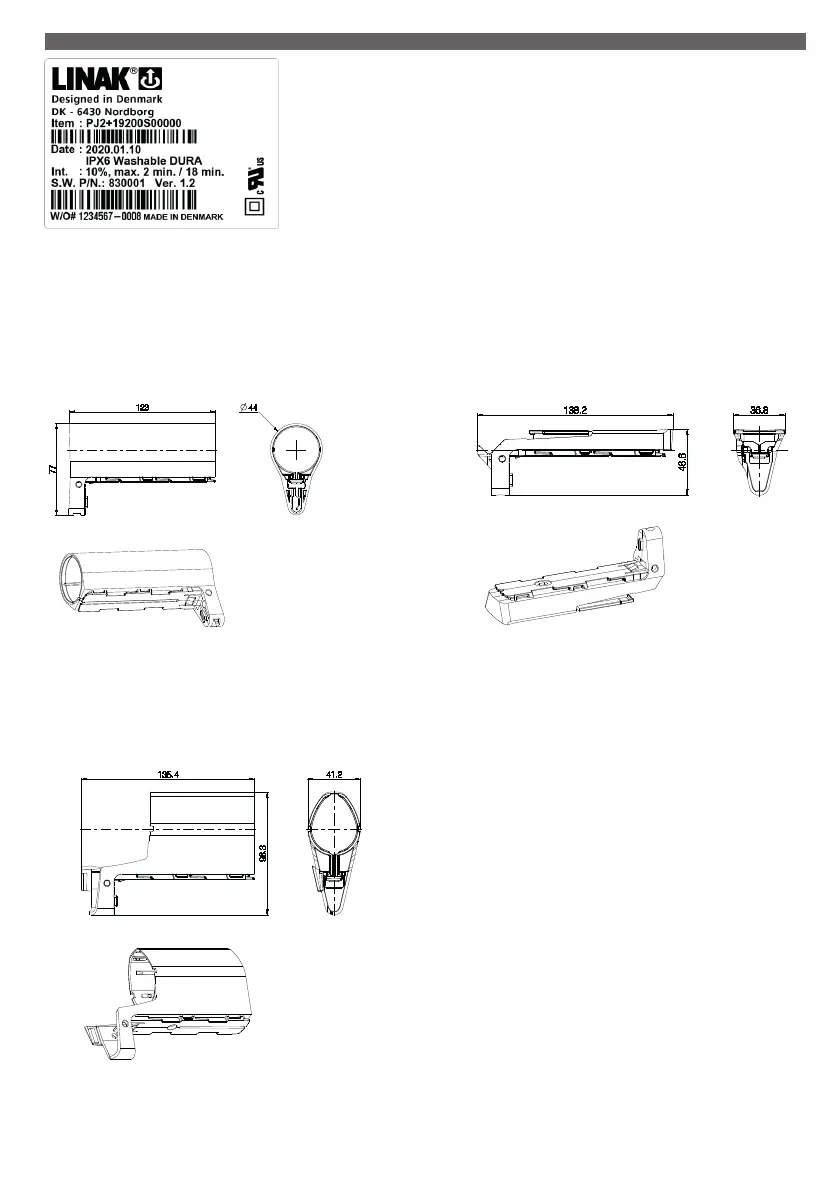

Drawing No.: 1015W4002
Mounting brackets
For mounting with LA40 (Article No.: 1015W1002)
For mounting with LA31 (Article No.: 1015W1004):
Drawing No.: 1015W1004
For mounting with LA27 (Article No.: 1015W9003):
Drawing No: 1015W4003
The adapter 1015W9003 includes a screw that is halfway mounted, thus everything as one part.
Screw head torx size: T15
Screw torque: 1.2 ± 0.2 Nm
