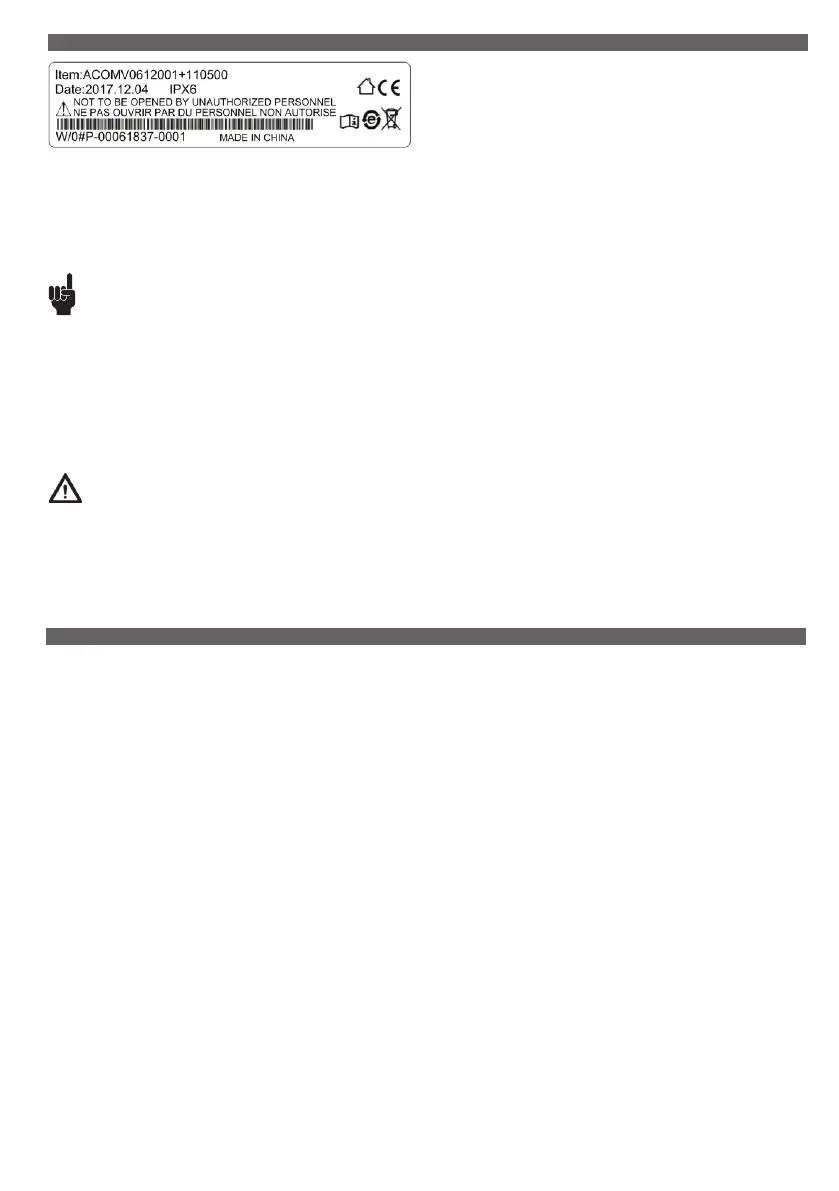

ACOM is the obvious control for hospital and nursing home beds where patient
positioning needs careful control by medical staff. ACOM is an OpenBus
TM
control.
Usage
• Operation temperature: +5 °C to + 40 °C
• Storage temperature: -10 °C to + 50 °C
• Relative humidity: 20% to 80% - non-condensing
• Atmospheric pressure: 700 to 1060 hPa (3000 m)
• Height above sea level: Max. 3000 meters
• Approvals: IEC 60601-1 Edition 3.1 (2012),
IEC 60601-1-6:2010 + A1:2013
• Compatibility: Compatible with LINAK OpenBus
TM
control boxes,
CO-generation
6. ACOM (MEDLINE
®
CARELINE
®
)
Recommendations
• Clean the hand control regularly to ensure good hygiene standards.
• When a defective ACOM is replaced, check that the new ACOM has exactly the same specification and functionality.
• Do not submerge the hand control in water.
• Unless otherwise specified or agreed with LINAK, the hand control is only intended to be used for LINAK systems.
• When changing hand controls for OpenBus
TM
systems, the power must be switched off.
• It is recommended to check the hand control and cable for damage and holes caused by violent handling before washing the application or at
least once a year.
• It is recommended to have a parking place for the hand control on the application where the customer ensures that the hand control does not fall off.
Warnings
• Do not sit or lie on the hand control as this can cause unintended movement of the application.
The desk panel control DPH is made especially for the medical segment. It makes it possible to differentiate product design and achieve a more aesthetic
control solution.
The DPH (DPH1K10-210007) works with MJB (MJB5061101-00) and is OpenBus™ compatible.
The DPH (DPH1K10-210008 and DPH1K10-210009) fits directly into the analogue control box (CA30/CA40 or CA63).
The MJB 000 port repeater version can be used in systems where several DPH controls are needed.
Usage
• Usage temperature: +5 °C to +40 °C
• Storage temperature: -10 °C to 50 °C
• Relative humidity: 20% to 80% - non-condensing
• Atmospheric pressure: 700 to 1060 hPa
• Height above sea level: Max. 3000 meters
• Compatibility: DPH is compatible with analogue or OpenBus™ control boxes
• Modular Junction Box: MJB5061101-00 to be used with DPH1K10-210007
or MJB version 000 port repeater to be used with DPH1K10-210008 or DPH1K10-210009
• DPH and MJB are approved in accordance with: IEC60601-1
ANSI AAMI ES60601-1,
CAN/CSA-22.2 No 60601-1
7. DPH Medical (MEDLINE
®
CARELINE
®
)
Functionality
DPH1K10-210007 combined with MJB5061101-00 creates the OpenBus™ codes:
Up arrow: H0
Down arrow: H1
Wrong mounting is not an issue with the MJB5061101-00 and the modular jack plug of the DPH cable. The plug will only fit into the correct MJB ports.
DPH1K10-210008, analogue (control box channel 1) or
DPH1K10-210009, analogue (control box channel 2)
