2. ACC (MEDLINE
®
CARELINE
®
)
The ACC (Attendant Control Compact) is a cost optimised and compact box with up to 11 buttons that can be
used as hand control keys or lock-outs.
The lock-out function can be made visable by using LEDs.
The ACC is compatible with control boxes that use an OpenBus™ interface, for instance CO61.
Usage
• Operation temperature: +5 °C to +40 °C
• Storage temperature: -10°C to +50 °C
• Relative humidity: 20% to 80% non-condensing
• Atmospheric pressure: 700 to 1060 hPa
• Approvals: IEC 60601-1
ANSI/AAMI ES60601-1
CAN/CSA-C22.2 No. 60601-1
Precautions
• Always use Locking ring and cables w. O-rings.
• If other front covers than standards are requested, the customer must design them.

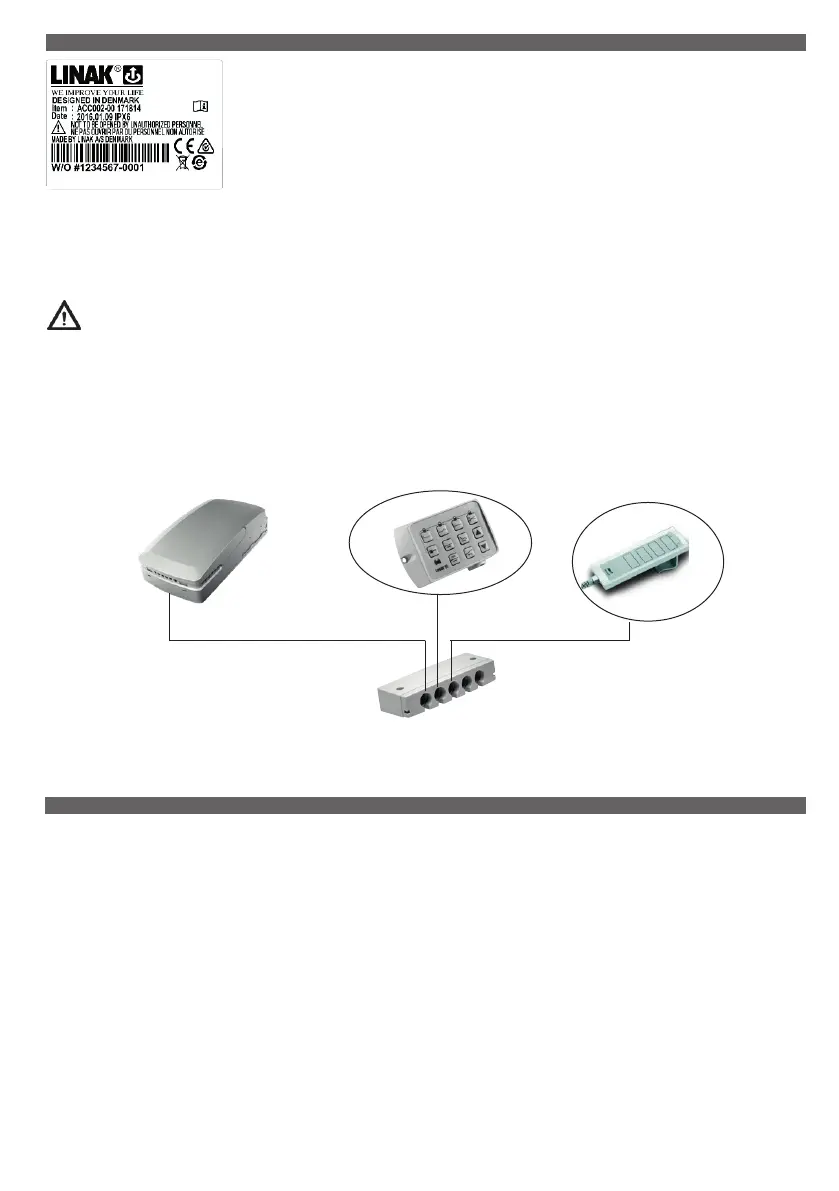

OpenBus
™
CB (CO61)
Hand control
ACC
How to connect the ACC box:
3. ACK (MEDLINE
®
CARELINE
®
)
With the OpenBus
TM
system it is possible to use ACK membrane front covers as attendant control or hand controls integrated in the bed side rails.
There are two different variants of ACK: ACK1 and ACK3.
The ACK1 is a single membrane front cover, whereas the ACK3 comes with two membrane front covers, typically used on an inside side rail and an
outside side rail.
Features and options
• Straight cables: 1250 mm, 1800 mm or 2500 mm
• The standard ACK colour is grey (RAL 7035)
Usage
• Operation temperature: +5 °C to +40 °C
• Storage temperature: -10 °C to +50 °C
• Compatibility: Compatible with LINAK control boxes.
Please contact LINAK
• Relative humidity: 20% to 80% - non-condensing
• Atmospheric pressure: 700 to 1060 hPa (3000 m)
• Meters above sea level: Max. 3000 meters
• Approvals: IEC60601-1
ANSI/AAMI ES60601-1
CAN/CSA-22.2 No 60601-1
Generel information
For LINAK standard ACKs, the following is applicable:
• Adhesive for the standard ACK is 3M 7955
• For information re. suitable and unsuitable surfaces, please see 3M’s
webpage
• Standard recommandation for curing time is 72 hours
• The customer is responsible for correct mounting on suitable surfaces
