Page 90 of 295
The LC3 2-stage and 3-stage set the standard for vertical lifting columns to high-end
medical applications. This compact lifting column fulfils the market requirements for a
solid and stable lifting column.
3. LC3 (MEDLINE
®
CARELINE
®
)
Usage:
• Duty cycle: 10%, 2 minutes continuous use followed by 18 minutes not in use
• Operation temperature: +5 °C to + 40 °C
• Storage temperature: -40 °C to + 70 °C
• Compatibility: Compatible with LINAK control boxes.
Please contact LINAK.
• Relative humidity: 20% to 80% - non-condensing
• Atmospheric pressure: 700 to 1060 hPa
• Meters above sea level: Max. 3000 meters
• Approvals: IEC 60601-1
IEC 60601-1-6
ANSI/AAMI ES60601-1
CAN/CSA-C22.2 No. 60601-1
IPX6 is only available when LC3 is mounted with the largest profile up.
IPX6 is only applicable when the LC3 column is fully retracted.
Note: The cable outlet for motor connection can be positioned at the top (smallest profile) or from the side of the column.

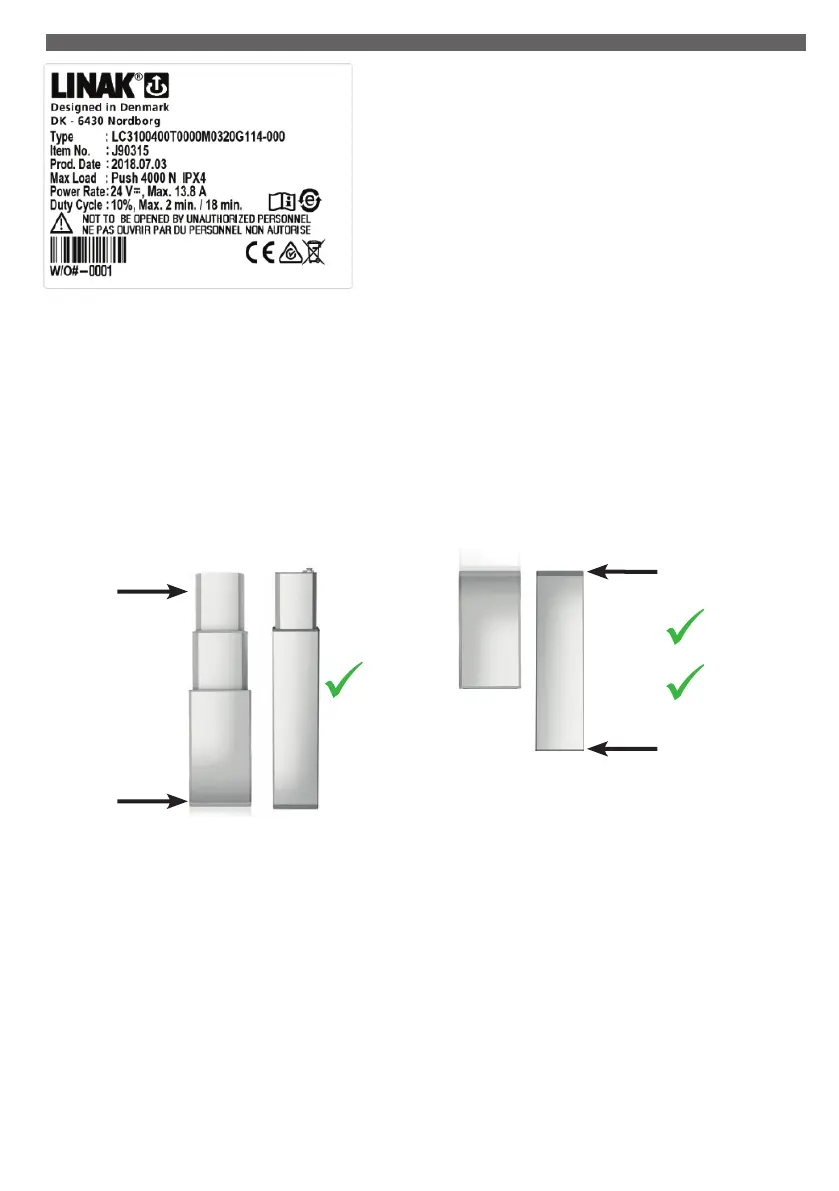

LC3 mounting guidelines
LC3 is for use in push or pull applications and can be mounted in both directions – largest profile down or largest profile up.
LC3 must be specified for specific mounting direction.
Mounting direction according to item number nomenclature.
IPX4
IPX4
IPX6
Observe
drain holes
Observe no
drain holes
Observe no
drain holes
Observe no
drain holes
Top plate up Top plate down
