Page 91 of 295

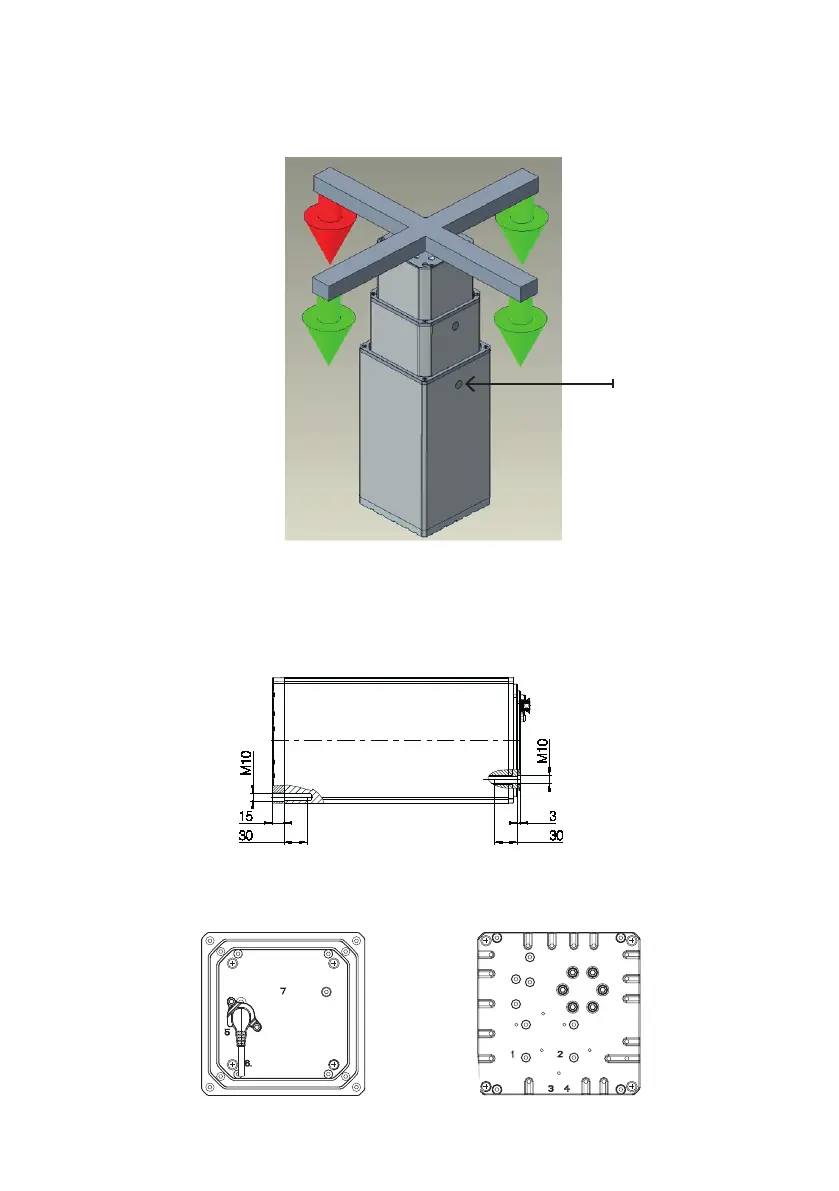

If you want to use the column with a high off-center load, we recommend that you install the weight in one of the 3 ways illustrated by the green
symbols. It is not recommended to install the weight on the opposite side of the mechanical endstop as illustrated with the red symbol.
This installation can create an uneven movement when the lifting column reaches the endstop position.
Mechanical endstop
LC3 mounting guidelines
Use 4 pcs. M10 8.8 screws, in each end, for mounting to the application. The screw depth must be min. 20 mm and max. 30 mm in aluminum profile.
Screw torque: 35 Nm.
LC3 3-Stage
15 mm distance
to thread
3 mm distance
to thread
Mounting holes, top Mounting holes, bottom
Drawing no.: 1002W9005
Screw depth min. 20 mm
