Page 248 of 295
The modular junction box MJB5 Plus is designed for use together with OpenBus™
control boxes.
The MJB5 Plus makes it possible to connect multiple hand controls and attendant
controls. It can even be used for charging or to connect the Under Bed Light and 3
rd
party products.
MJB5 Plus – Analogue to Openbus Converter (AOC)
MJB5 Plus versions 509
The AOC is an Analogue to OpenBus™ Converter. It is the perfect match for especially
medical applications where the customer needs to add own products or 3
rd
party
controls in an OpenBus system, e.g. multi-purpose foot switches.
The MJB5 AOC is available with or without power request.
14. MJB5 Plus AOC (MEDLINE
®
CARELINE
®
)
Usage
• Compatibility: All OpenBus control boxes except CB20.
• Operation temperature: +5 C to +40 C
• Storage temperature: -10 C to + 50 C
• Relative humidity: 20% to 80% non-condensing
• Atmospheric pressure: 700 to 1060 hPa
• Operational meters above sea level: Max. 3000 meters
• Latex free: Yes
• Approvals: IEC60601-1, IEC60601-1-6
ANSI/AAMI ES60601-1
CAN/CSA-22.2 No 60601-1

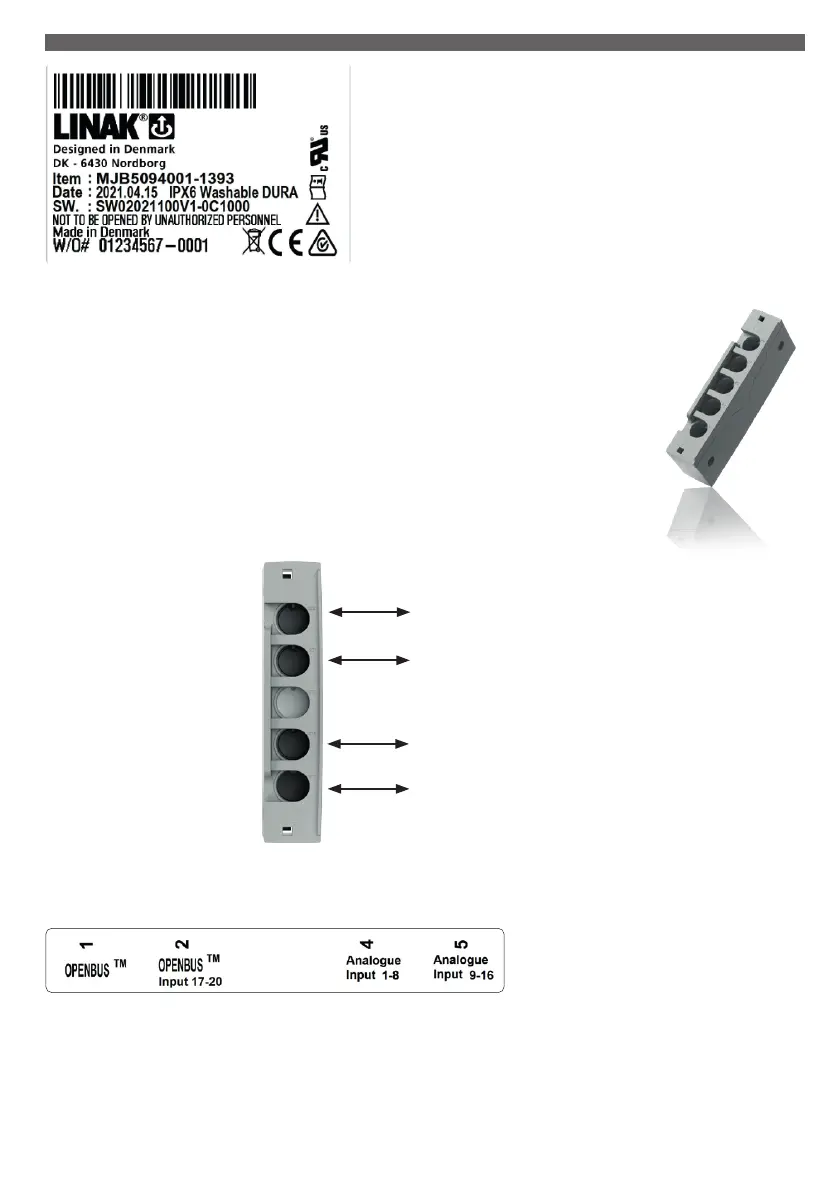

The product label is added for correct connection to the ports:
Port 5
Port 4
Port 2
Port 1
Common positive
(input 9, 10, 11, 12, 13, 14, 15 or 16)
Common positive
(input 1, 2, 3, 4, 5, 6, 7, 8)
OpenBus connection or 4 inputs with common GND
(input 17, 18, 19 or 20)
OpenBus connection
Port 3 is not available
The MJB5 AOC has 4 ports.
Port 1 is for OpenBus connection.
Port 2 has 4 common ground switch inputs or an OpenBus hand control.
Port 4 has 8 common positive switch inputs or an analogue hand control.
Port 5 has 8 common positive switch inputs or an analogue hand control.
Port 1 for connection to the control box and port 2 can be used for an OpenBus control. The standard inputs are made so that a system containing
an analogue hand control can be used for an OpenBus control box in port 4 or port 5.
MJB5 Plus AOC Usage
Compatibility: All OpenBus control boxes except CB20.
