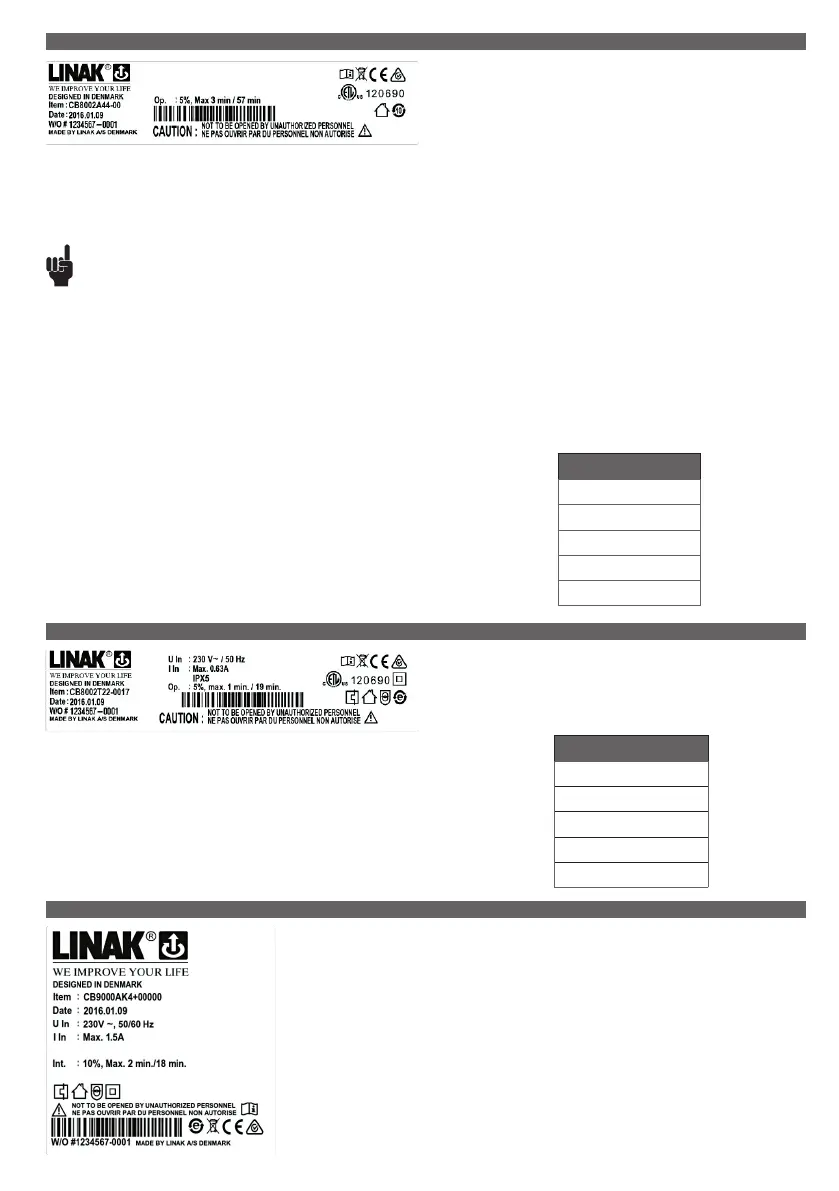

CURRENT CUT-OFF (A)
2 A (2.35 +/- 0.35 Amp)
3 A (3.00 +/- 0.35 Amp)
4 A (4.00 +/- 0.50 Amp)
5 A (5.35 +/- 0.50 Amp)
6 A (5.90 +/- 0.70 Amp)
Values in brackets
show tolerances.
Important: Individual current cut-off:
The current to each actuator is monitored and when this reaches a specified value, the current
to that actuator is cut-off.
As the actuators do not have the same current consumption the cut-off values must also be
different. Therefore it must be specified which actuator is to be connected to which channel:
Recommendations
• Note: max. accumulated power consumption is 10 Amp.
• The measurement is individual for each channel, but if the total current consumption reaches 10 Amp, the CB cuts off the current. The CB and the
actuator are therefore protected via a common measurement.
• External Charger CH01 has to be ordered separately. By use of charger CH01 it is possible to activate the actuators when charging. However, this is
not recommended as it can damage the control box or the charger CH01.
• Battery kit BA0801 has to be ordered separately for versions M, G, H, Q, R (2 channel) and version M (3 channel).
• When using the CB8A with emergency stop button, the stop button must be released before charging batteries.
• Acoustic alarm sounds when batteries are low and recharging should be started. The alarm level corresponds to approx. 17-18 VDC.
• If the CB800XXXXN-X0 option is chosen, an external emergency stop device (NC) or short-circuiting connection must be mounted in channel 3,
before connection to allow proper function and battery charging.
The CB8A is a battery powered control box operating up to 3 actuators
individually. One of these channels can be used either as an external
emergency stop device or for battery charging.
Simple design and high quality construction make the CB8A an ideal control
box choice for mains-free operation of beds, chairs, tables and many other
mobile applications.
Usage
• Duty cycle: Max. 5% or 3 min. in use followed by 57 min. not in use
• Ambient temperatures: + 5
o
C to +40
o
C
• Approvals: IEC60601-1:2005 3
rd
edition approved ANSI/AAMI, ES60601-1:2005 3
rd
edition approved.
7. CB8A (MEDLINE
®
CARELINE
®
TECHLINE
®
)
The CB8-T is developed for use with LINAK A/S’ actuators and handsets.
The control box can operate up to 2 actuators individually.
The simple compact design combined with high quality makes the control
box ideal for use with beds, chairs, tables and many other applications.
CURRENT CUT-OFF (A)
2 A (2.35 +/- 0.35 Amp.)
3 A (3.00 +/- 0.35 Amp.)
4 A (4.00 +/- 0.50 Amp.)
5 A (5.35 +/- 0.50 Amp.)
6 A (5.90 +/- 0.70 Amp.)
Values in brackets
show tolerances.
Important: Individual current cut-off:
The current to each actuator is monitored and when this reaches a specified value, the current to
that actuator is cut-off.
As the actuators do not have the same current consumption the cut-off values must also be different.
Therefore it must be specified which actuator is to be connected to which channel:
8. CB8-T (MEDLINE
®
CARELINE
®
TECHLINE
®
)
The CB9 has been developed for Home use. The CB9 and the LA31 can be fully integrated, which saves
mounting and wiring or be installed separately.
The HOMELINE CB9 series is available as either analogue (Ax) or μ-processor based (Px) types.
9. CB9 (HOMELINE
®
)
