Warnings
• Use EPR or ensure that the user takes care not to squeeze the mains cable.
• Always check correct assembly after mounting and service to ensure that the cable lock is mounted.
(connectors are usually removed during cleaning)
• Always use approved chemicals with the housing as the plastic may show corrosion caused by some chemicals.
As a result, water may accumulate/gather in the housing.
• Take special precautions concerning third-party interfacing. Please contact LINAK
®
for further information.
• Make a review of all product specifications before system setup, if the current cut-off limit is higher than the maximum
allowed current cut-off for the actuator.
• To avoid cable interruption and actuator defects, make a proper cable installation and inspect regularly for wear and damage.
Defective parts must be replaced.
• After service inspection, the application must be tested for correct functionality before it is put into operation to avoid actuator
plugs being mixed during service.
Operators must not be inside entrapment area.
• To avoid electrical failure or system disturbance, inspect regularly for wear and damage. Defective parts must be replaced.
• Make a proper cable installation to avoid short-circuit cables for hand controls and other controls.
Regular inspection must be made for wear and damage. Defective parts must be replaced.
• Do not mount the actuator with the spindle facing downwards to avoid that the actuator slips off the bracket when the control box is mounted.
The bracket can come loose when exposed to shock or hard vibrations, for instance when passing doorsteps.
Regular inspection must be made to ensure proper fixation of control box and bracket on the actuator.

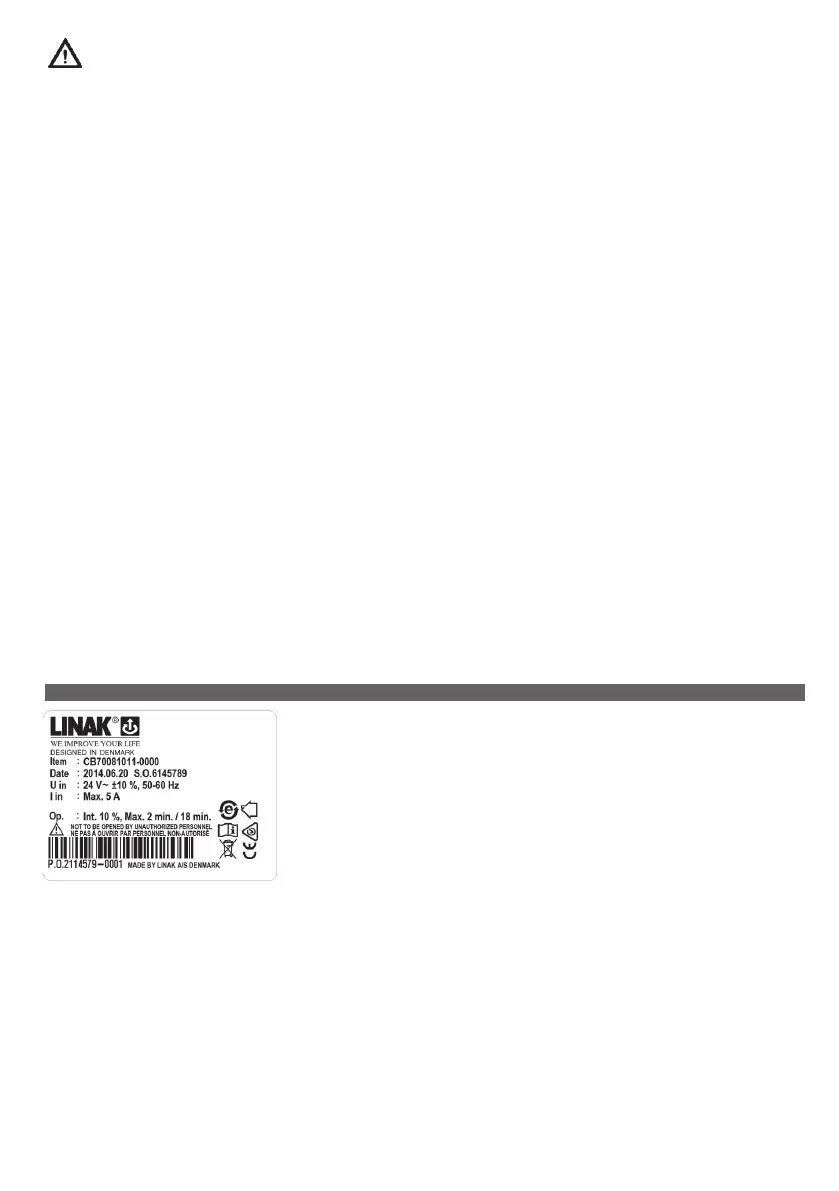

Compared to other LINAK control boxes the CB7 is very small and compact in design.
The CB7 is designed to slide onto an LA31 actuator for easy fitting e.g. in a recliner application where
“mounting” space is limited.
The control box function is divided in two parts. The actual control box CB7, which slides onto the LA31
actuator and a separate external power supply transformer box TR6 or TR7, which can be wall mounted
or placed on the floor moulding next to the mains.
The control box is only fitted with low voltage electronic components and the connection between the
CB7 and transformer is via a 24 V power cable.
6. CB7 (HOMELINE
®
