FS3 Bed adaptor
FS3 Floor adaptor
10. FS3 (MEDLINE
®
CARELINE
®
)
Usage
• Usage temperature: + 5 ºC to + 40 ºC
• Storage temperature: -10 ºC to + 50 ºC
• Relative humidity: 20% to 80% - non-condensing
• Atmospheric pressure: 700 to 1060 hPa (3000 m)
• Height above sea level: Max. 3000 meters
• Compatibility: Compatible with LINAK analogue and OpenBus
TM
control boxes.
Please contact LINAK.
• Approvals: Safety
IEC60601-1
ANSI/AAMI ES60601-1
CAN/CSA-22.2 No. 60601-1
Radio
RED
FCC (US)
IC (Canada)
Telec (Japan)
Battery
IEC 62133
UL 205
UN 38.8
The LINAK
®
Foot Switch FS3 is an elegant control unit, allowing
healthcare professionals across the sector to have both hands free when
attending to patients, thus also helping to improve ergonomics. It is
designed to be used in modular adjustment systems consisting of LINAK
control boxes and electric LINAK IC actuators. Developed in cooperation
with end users, the FS3 is specifically designed to improve and ease
control of applications, such as hospital beds, treatment couches/tables
and various treatment chairs. The result is a particularly user-friendly and
easy-to-clean unit with an elegant and aesthetic design.
However, the FS3 is also a very robust and durable foot control available
in both a single and a double version. The latter allows you to add
and control more movement options, often used in more advanced
applications. The FS3 is available in an analogue version as well as a
digital OpenBus™ version, and for applications where trip hazards are
an issue or design freedom is prioritised, the unit comes in a wireless
edition too (Bluetooth
®
BLE).
Mounting of the FS3 bed model:

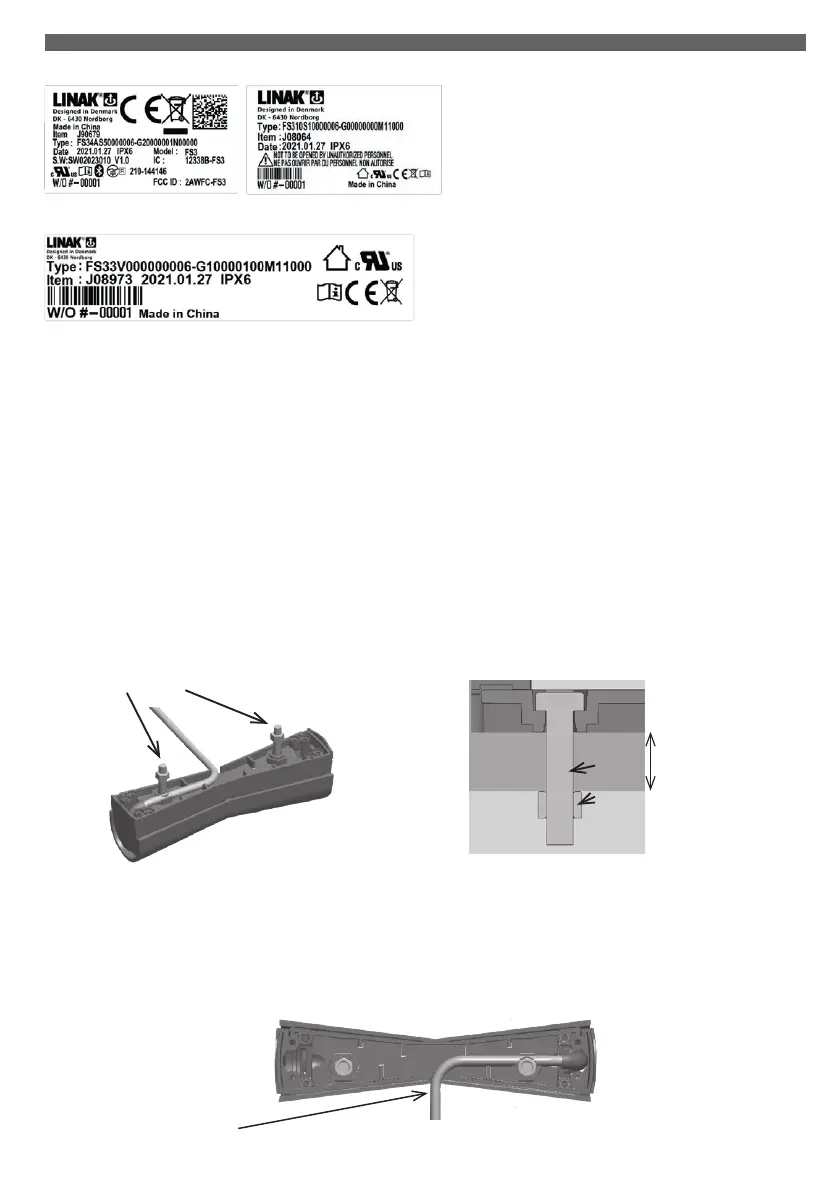

To mount the FS3 bed model, you have to use the bolt and the nut which have already been fitted to the FS3 bed model (see picture below).
Bolt and nut for mounting
7 mm
Bolt M5 x 25
Nut M5
You have to remove the nut before mounting the FS3 on the bed and after mounting the FS3 to the bed, the nut is fastened to secure that the FS3 is
fixed to the bed frame.
Please note that the max. torque on the nut should be 2.0 Nm (20 kg f. cm).
When mounting the FS3 bed model, it is important to run the cable through the hole of the FS3 in order to lead the cable through (see picture below).
Location of the notch for the cable
of the FS3 bed model.
