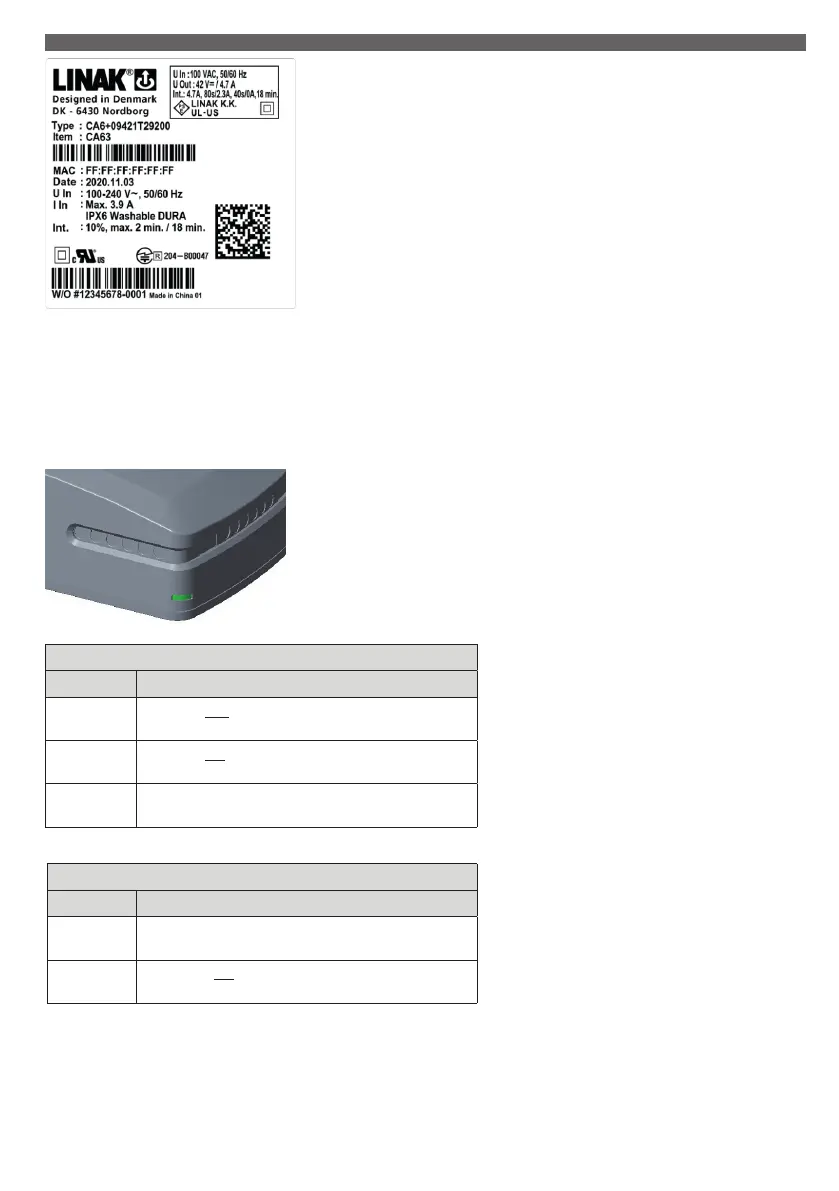

The LINAK control box CA63 with analogue input offers a consolidated range of unprecedented
features – all utilising standardised technology, interfaces and compatibility.
The CA63 for LINAK actuators is intended for the control of, for example, Home Care Bed. Equipped
with 200 W SMPS, excellent and well-thought-out cable management as well as multiple easy
mounting options, this control box opens up a wide range of application possibilities for the provident
hospital and care products manufacturer.
LED indicator
CA63 is equipped with a green LED for indication of mains power connected. When the CA63 is
connected to mains, the LED is green. Connected only to battery, the LED is off.
2. CA63 (MEDLINE
®
CARELINE
®
)
Features and options
• Duty cycle: 10 % - 2/18 min. on/off continuous use.
Maximum power is 200 W for 80 seconds and 100 W for 40 seconds at 25 °C.
Acoustic signal functionality:
The buzzer will make a warning, when a button on the hand control is pressed, and the battery state of charge is low. The buzzer can also be activated
by the control box to signal other conditions. This must be specified in the control box software.
Connected to MAINS
LED colour Indication of operation
Green
On mains, not activated by hand or foot control.
The system is working ok and is ready for normal operation.
Yellow
On mains, not activated by hand or foot control.
The system is defective and should not be operated.
Yellow On mains, activated by hand or foot control.
The system is working.
Not connected to mains but with BATTERY back-up
LED colour Indication of operation
Orange On battery, activated by hand or foot control.
The system is working.
No LED
On battery, not activated by hand or foot control.
or CA63 not connected to mains.
Usage
• Operation temperature: +5 °C to +40 °C
• Storage temperature: -10 °C to +50 °C
• Relative humidity: 20% to 80% - non-condensing
• Atmospheric pressure: 700 to 1060 hPa (3000 m)
• Meters above sea level: Max. 3000 meters
• Approvals: IEC60601-1 edition 3.1
ANSI/AAMI ES60601-1:2005/(R) 2012
CSA CAN/CSA-C22.2 NO. 60601-1:14
IPX6 Washable in accordance with IEC60601-2-52
