Mounting of cables and cable lock
The control boxes CA30-CA40 have a uniquely designed cable lid. The lid also works as an integrated cable lock when closed.
1) Mount cable plugs in control box
2) Close lid until lock snaps into place (see arrows)
To allow free access to the cables, the lid has a rest position when completely opened. It is possible to remove the lid by lifting it a few degrees and
pulling it away from the housing under tight mounting conditions.
Battery Operation
CA30 and CA40 are only compatible with batteries with built-in charger, BA19 or BA21.
EOP- electronic overload protection
Remark - common/individual current measurement.
As default, the current cut-off is set to 8 A per channel. The total current cut-off default setting is 8 A. If more channels run at the same time, 8 A are
distributed equally.
Recommendations
• Note that the common current limit on CA30-CA40 is 8 A and may cause overload on certain actuator types.
• Be aware that the channel configuration has been changed compared to existing analogue control boxes.
• To avoid unintended movement like trend or antitrend, LINAK recommends the application manufacturer to instruct the end user to avoid that
multiple keys are pressed simultaneously.
• Push plugs fully into correct sockets and make sure that the plugs are completely inserted.
• Mount the control box lid and close it until locked in place.
Warnings
• Due to the half-bridge technology, pressing multiple keys simultaneously might cause an unintended trend or antitrend movement (application
environment 4).

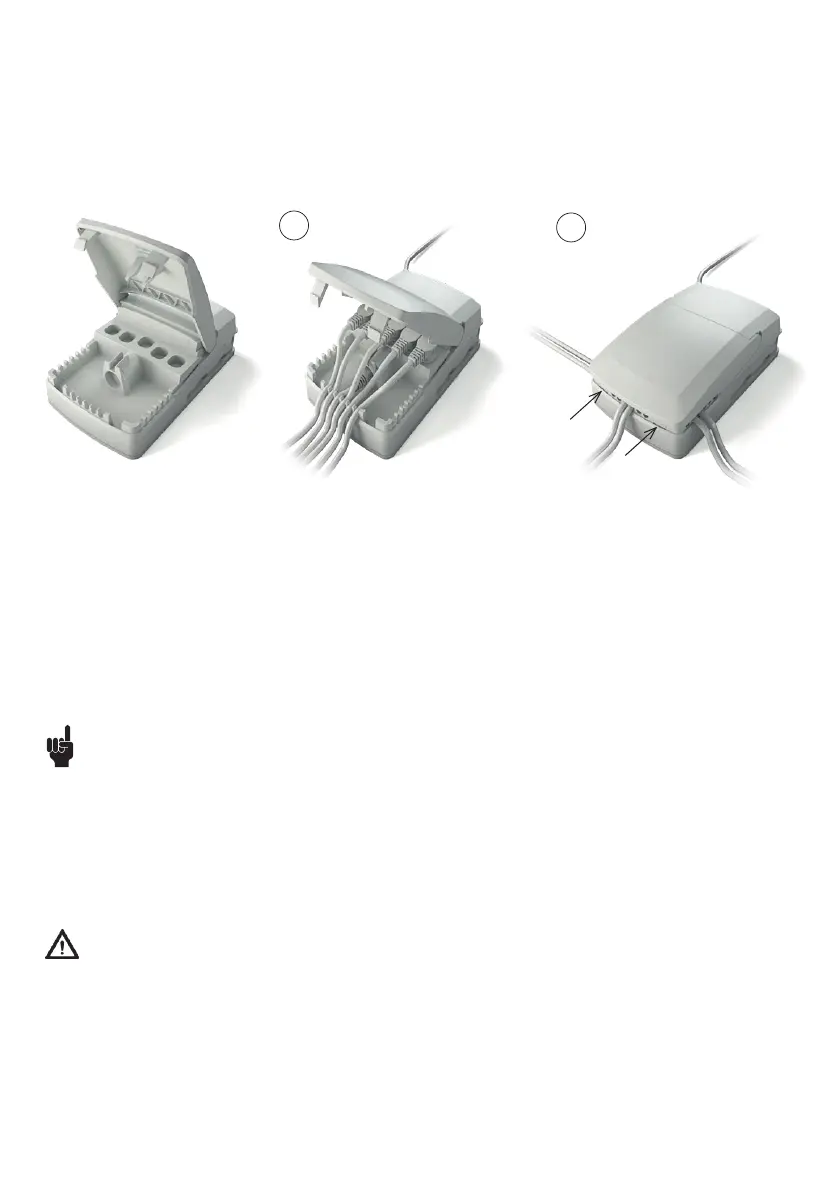

Cable management:
1
2
