Page 86 of 295
The lifting column LC1 is tailor-made for use in medical applications and adds a powerful
and stable new option to the LC family of columns. The 3-stage telescopic column has
many customisation possibilities, both as to heigth and performance, and offers a more
precise choice of movement within the range of up to 4,000 N.
2. LC1 (MEDLINE
®
CARELINE
®
)
Usage
• Duty cycle: 10%, 2 minutes continuous use followed by 18 minutes not in use
• Operating temperature: +5 °C to +40 °C
• Storage temperature: -10 °C to +50 °C
• Compatibility: Compatible with LINAK or customer-own control boxes.
Please contact LINAK for further information.
• Relative humidity: 20% - 80%, non-condensing
• Atmospheric pressure: 700 to 1060 hPa
• Meters above sea level: Max. 3000 meters
• Approvals: IEC 60601-1
ANSI/AAMI ES60601-1
CAN/CSA-C22.2 NO. 60601-1
If the lifting column is mounted upside-down, there is NO ingress protection (IP).

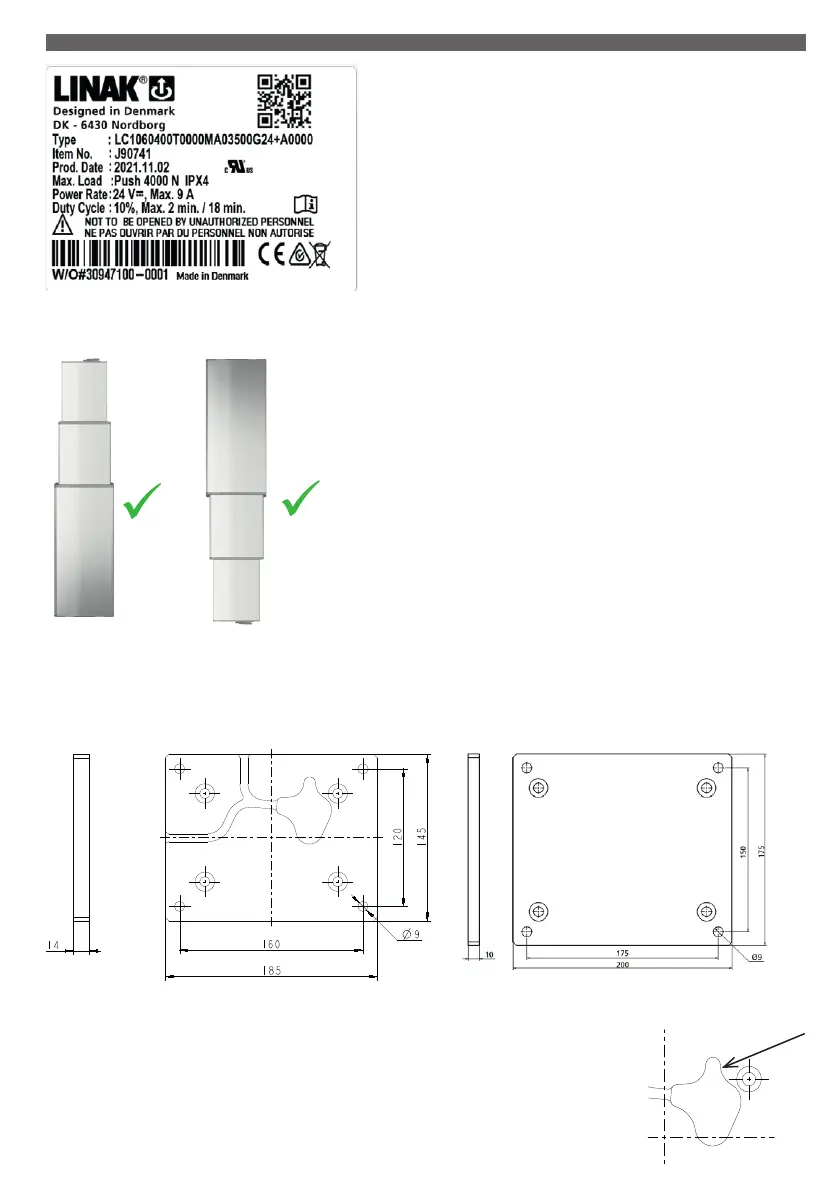

Mounting guidelines
LC1 is for use in push applications to obtain IPX4. The mounting direction must be
with the largest profile down. It is very simple to mount the LC1 in the application
using selftapping screws in the mounting holes of both endplates.
IPX4
Top plate
up
IPX0
Top plate
down
Mounting plates
Top plate
Bottom plate
Customer production of top and/or bottom mounting plates:
LINAK can forward a 3D drawing with dimensions that comply with the customer choice of cables/plugs.
If the customer uses own top plate design, remember to make a drainage hole to drain water from the area
around the cable plug to obtain IPX4.
