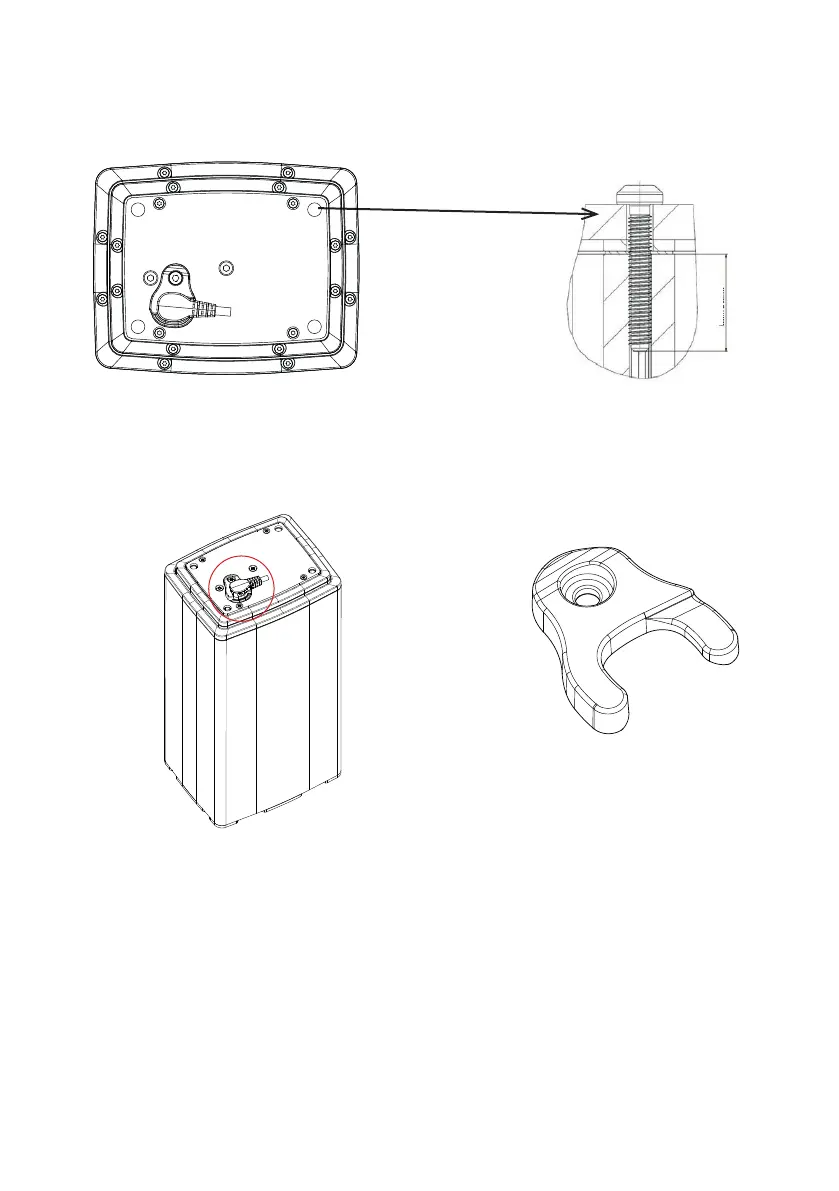

For proper cable mounting, use cable lock and self-tapping screw.
Recommended torque for cable lock is 2.5 Nm ± 0.5 Nm.
Mounting screws
For the safety factor and off-centre load specifications to be valid, the correct mounting screws must be used.
The thread engagement length needs to be minimum 30 mm (into the aluminium profile).
Recommended screw torque is 20 Nm ±10%.
Cable lock
Min. 30 mm
Screw length for LC1-R:
max. 50 mm
Cable lock kit item no.:
1053W8011
