Page 173 of 295
The LINAK OpenBus Power Supply (OPS) is intended to control up to three heat pads. The OPS is
equipped with 120 W constant power and comes as IPX6 Washable DURA
TM
.
The OPS offers flexible system combinations and can be used as a stand-alone system or as add-on
to the existing LINAK CO control box solution as CO-Link™.
17. OPS - OpenBus Power Supply (MEDLINE
®
CARELINE
®
)
Usage
• Duty cycle: 100%
• Operation temperature: +5 °C to + 40 °C
• Storage temperature: -10 °C to + 50 °C
• Relative humidity: 20% to 80% - non-condensing
• Atmospheric pressure: 700 to 1060 hPa
• Height above sea level: Max. 3000 meters
• Flammability rating: UL94 V2
• Latex free: Yes
• Approvals: IEC 60601-1
ANSI/AAMI ES60601
CSA CAN/CSA-C22.2 NO. 60601
IEC 60601-1-6
IEC 60601-1-2

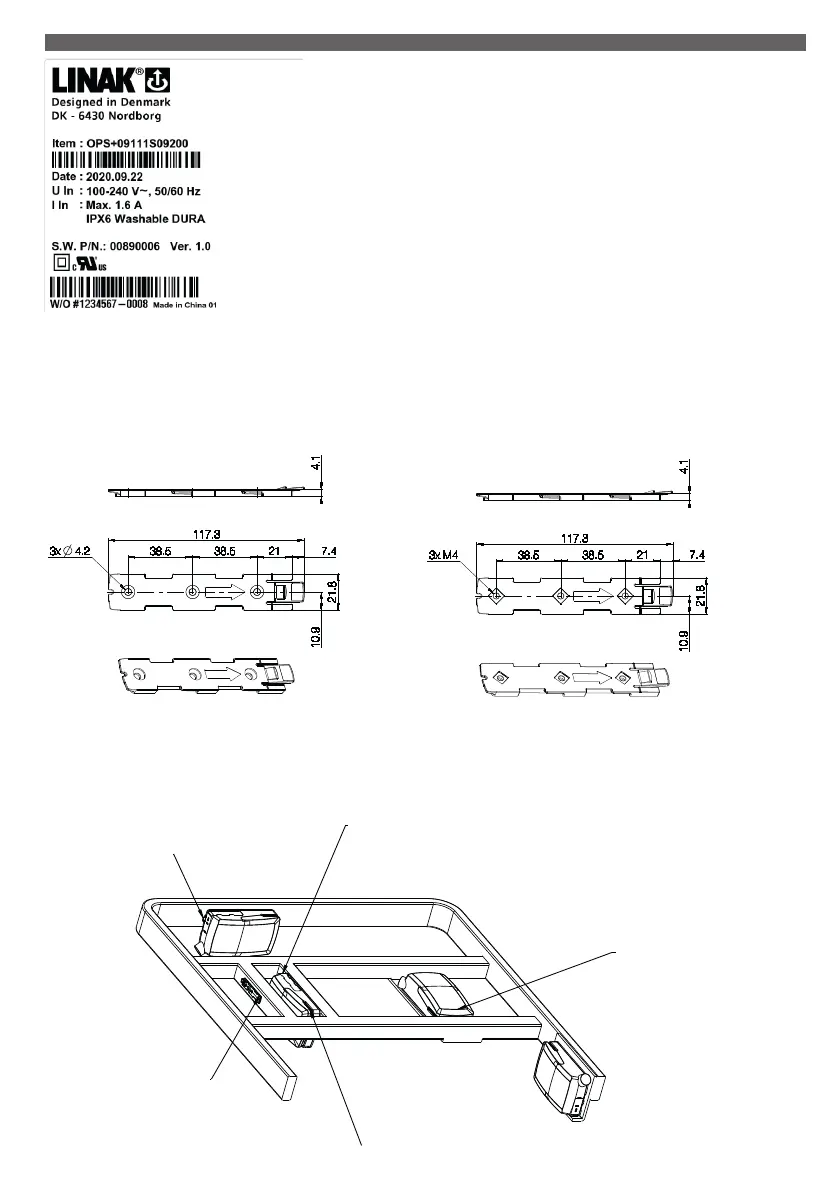

Mounting bracket (frame flat)
- article No. 1015W1001:
Drawing No.: 1015W4009
Mounting bracket (frame flat) w/M4 nuts
- article No. 1015W9009:
Drawing No.: 1015W4001
OPS - mounted on frame:
Release hookRelease hook
Easy-mount bracketEasy-mount bracket
3-way cable exit3-way cable exit
Very small built-in dimension:Very small built-in dimension:
Height: min. 80 mm (lid can be removed)Height: min. 80 mm (lid can be removed)
Length: + 20 mm (locking system)Length: + 20 mm (locking system)
Service lidService lid
Integrated hingeIntegrated hinge
Removable if neededRemovable if needed
Drawing No.: 1013W4008
