Mounting of cables and cable lock:
The OPS has a uniquely designed cable lid. The lid also works as an integrated cable lock when closed.
1) Mount cable plugs in the OPS
2) Close lid until lock snaps into place (see arrows)
To allow free cable access, the lid has a rest position when completely opened. It is possible to remove the lid by lifting it a few degrees and pulling it
away from the housing under tight mounting conditions.

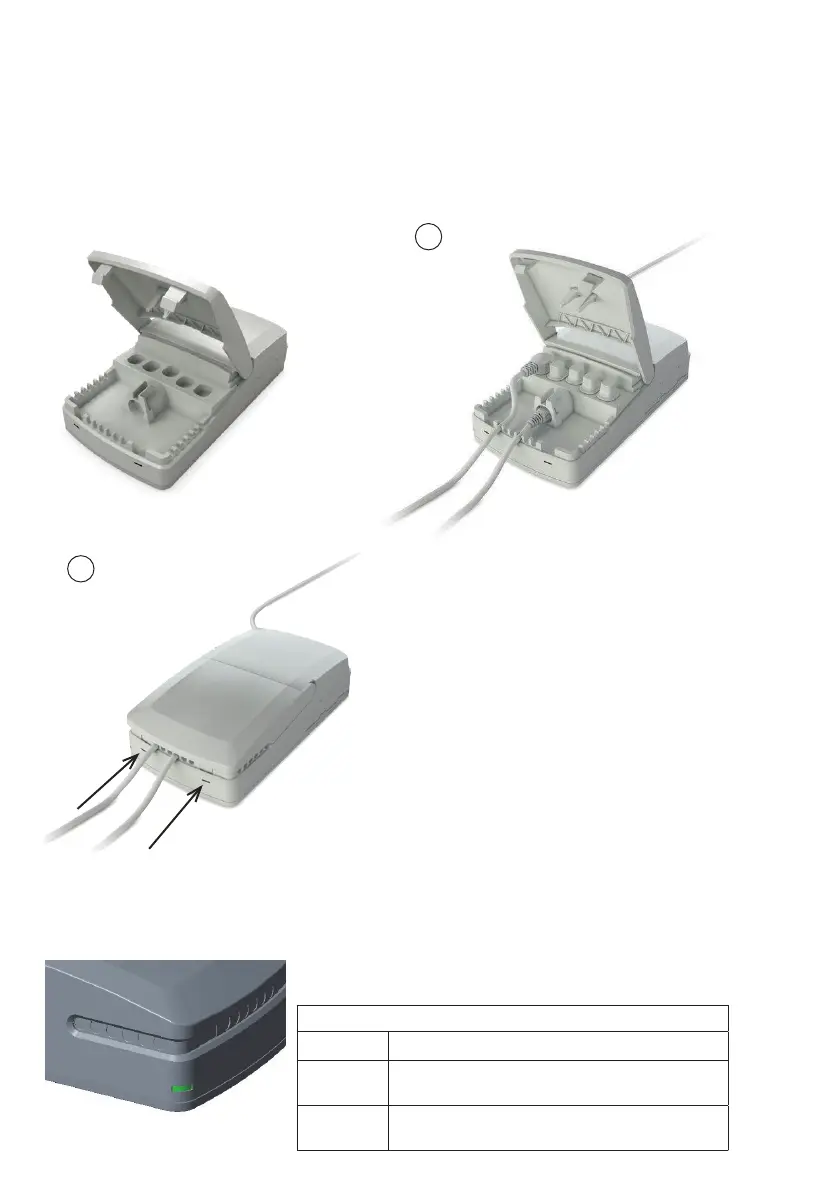

See illustrations:
Cable management:
1
2
LED indicator
The OPS is equipped with LED indication. When mains power is connected, the LED turns green.
The LED turns yellow for as long as the pressure lasts.
Connected to MAINS
LED colour Indication of operation
Green On mains
The system is working ok and is ready for normal operation.
Yellow On mains, activated by hand control
The system is working.
