The massage motor can be added to all kinds of couches and tables, chairs or beds
for treatment and examination. It enables comfort, relaxation and tension release for
patients and clients. The massage motors are directly connected to the actuator port
at the control box – no extra wiring at the application, simple and easy mounting.
Usage
• Compatibility: CB6 OBMe, CB16 OBF, (CB20 pending) MJB006-0x to be used for OpenBus™ impulse drive
• Duty cycle: 10 %, 30 min. max.
• Operating temperature: + 5 °C to + 40 °C
• Storage temperature: - 10 °C to + 50 °C
• Relative humidity: 20% to 80% - non-condensing
• Atmospheric pressure: 700 to 1060 hPa (3000 m)
• Height above sea level: Max. 3000 meters
• Approvals: Medical approvals to be determined

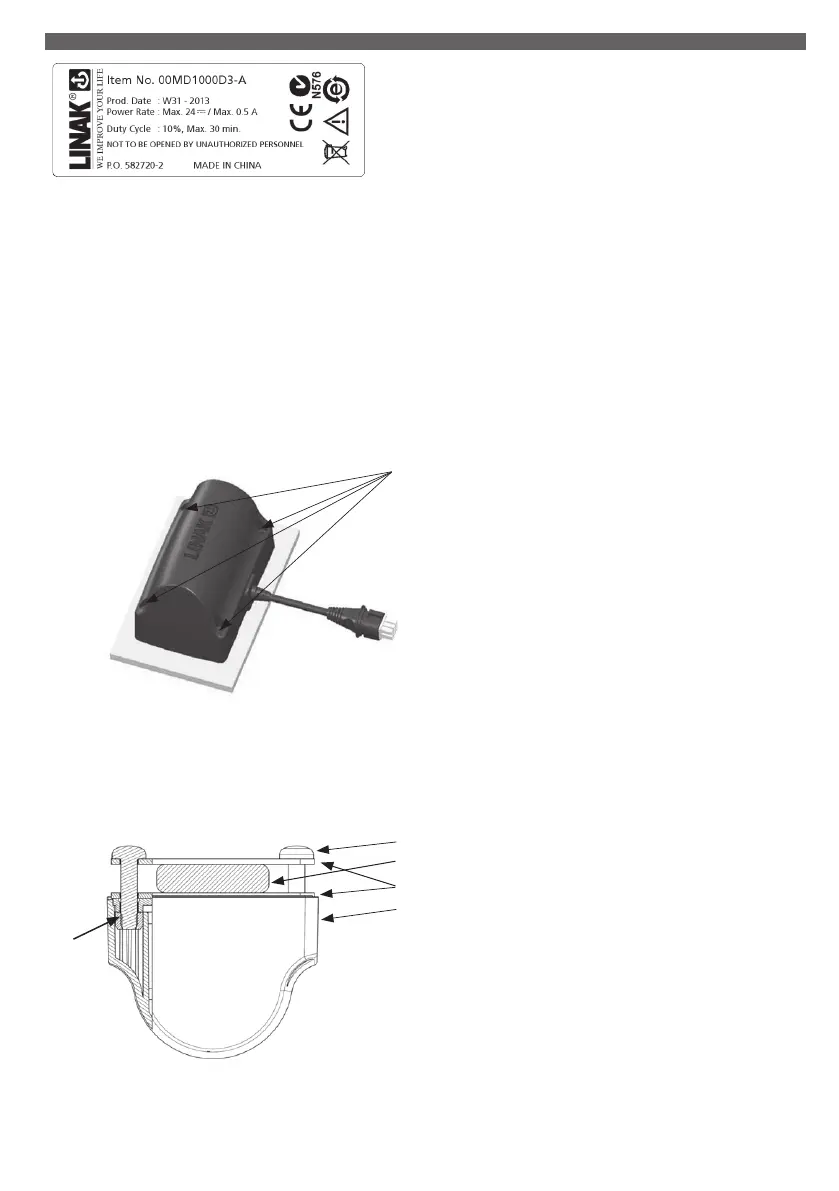

7. Massage Motor Medical (MEDLINE
®
CARELINE
®
)
Is mounted with 4 screws
Mounting:
Massage motor on a plate
Mounting of the screw with max. torque 2 Nm
Mounting of massage motor by using brackets:
Screw
Slat
Bracket
Massage motor
Nut
The massage unit is mounted with 4 x M6 roundheaded machine screws with flat underside. 15 to 20 mm long + the thickness of the bracket.
Torque max. 2-3 Nm.
2 brackets must be used - one on each side of the slat.
