Recommendations
LA34 fast motor is not compatible with any standard versions of CB9, due to high current consumption. For use of LA34 standard motor and
small motor always use a CB9 with EAS.
Additionally, actuators with reed switch are not compatible with analogue CB9s because of a conflict between the CB signal wires and the
reed wires!
The CB9 CARELINE and CB9 CARELINE Basic have been developed for use together with LA31/
LA31R, LA34/LA34R* in the Care & Rehab industry. CB9 and LA31 can be fully integrated which saves
mounting and wiring or be installed separately.
Exchangeable mains cables, Electronic Overload Protection (EOP), EAS, earth connection (Class 1) and
exchangeable mains fuse makes CB9 a good choice for the simple hospital and care beds.
Usage
• Duty cycle: Max. 10% or 2 min. continuous use followed by 18 min. not in use
• Ambient temperature: +5° to +40°C
• Compatible with up to 4 actuators, type LA31 and LA34, via 4-pole DIN sockets
• Compatible with BA18
• For approvals information see LINTRA/Development/Certificates
• Approvals: - IEC60601-1
- ANSI/AAMI ES60601
- CSA CAN/CSA C22.2 NO. 60601-1
- PSE Japan

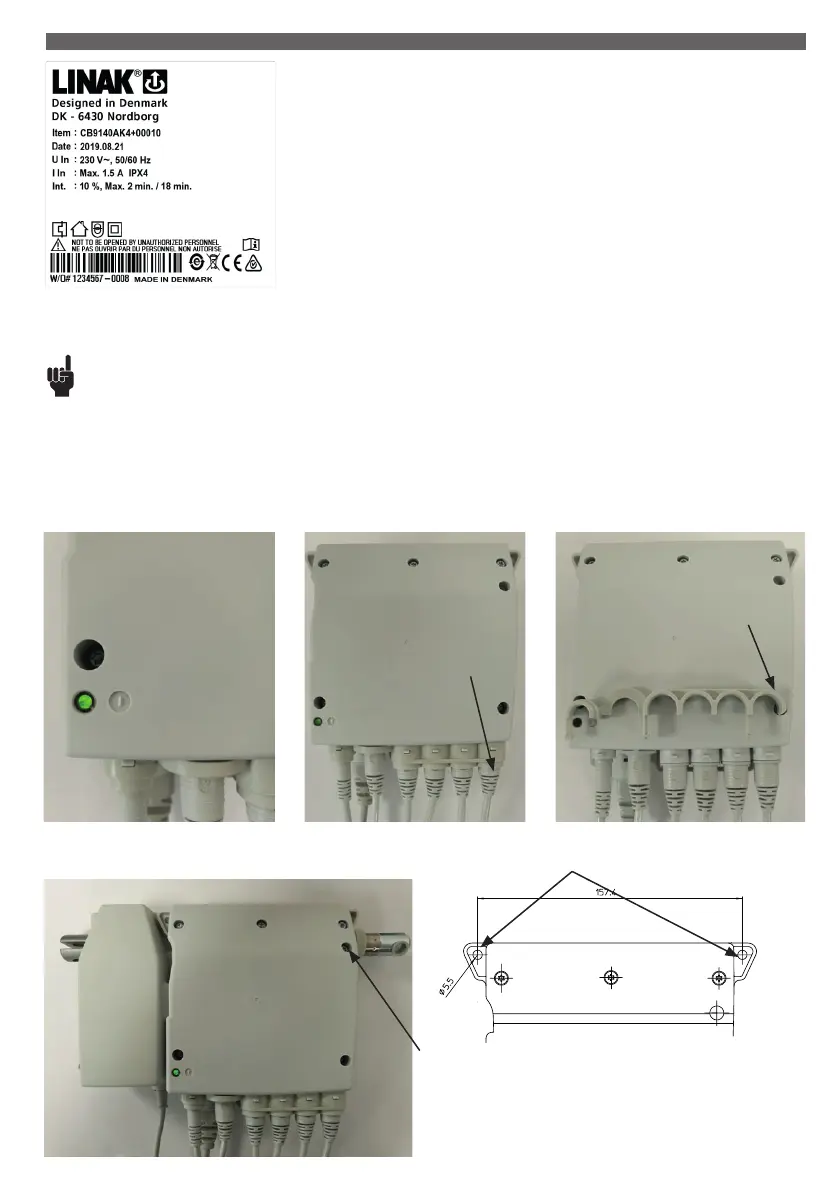

10. CB9 CARELINE and CB9 CARELINE Basic (MEDLINE
®
CARELINE
®
)
CB9 is equipped with a green LED for indication of mains power connected.
• When the CB9 is connected to mains, the LED is green.
• Connected only to battery, the LED is off.
The cables are locked in position
with a locking mechanism.
The locking mechanism is shown
here (not in position)
CB9 can be mounted and fixed together
with LA31 with one screw.
CB9 mounted on actuator, LA31.
CB9 for mounting on application. Shows the
two holes used for mounting
Screw used for mounting
