ABL pairing
Direct Pairing can also be initiated by activating pin 3 and 4 on J2 and pin 2 on J3 simultaneously.
Confirm on pin 3, J2.

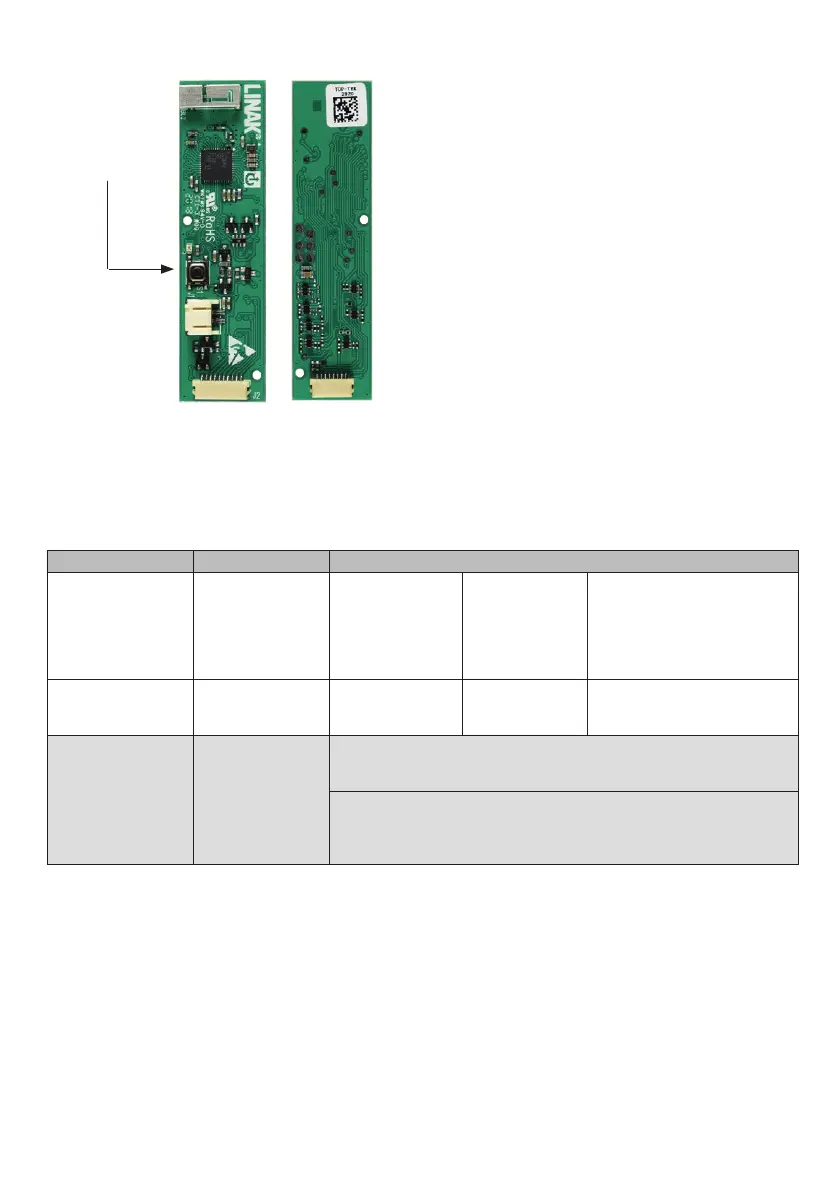

Direct Pairing button -
similar to FS3BLE
ABL - Commands and Pairing
Function Details Default
Direct Pairing Activation To enter Direct Pairing
mode.
S1
(Tactile switch next to
battery connector)
OR
Pin 3 (J2)
+
Pin 4 (J2)
+
Pin 2 (J3)
Connected simultaneously to GND
Direct Pairing
Confirmation
To confirm Direct Pairing
S1
(Tactile switch next to
battery connector)
OR Pin 3 (J2)
OEM ID and type Used to filter in
CB whitelist
OEM ID: 000000001
OEM type:
2000 (ABL V0)
2001 (ABL V1)
2002 (ABL V2)
