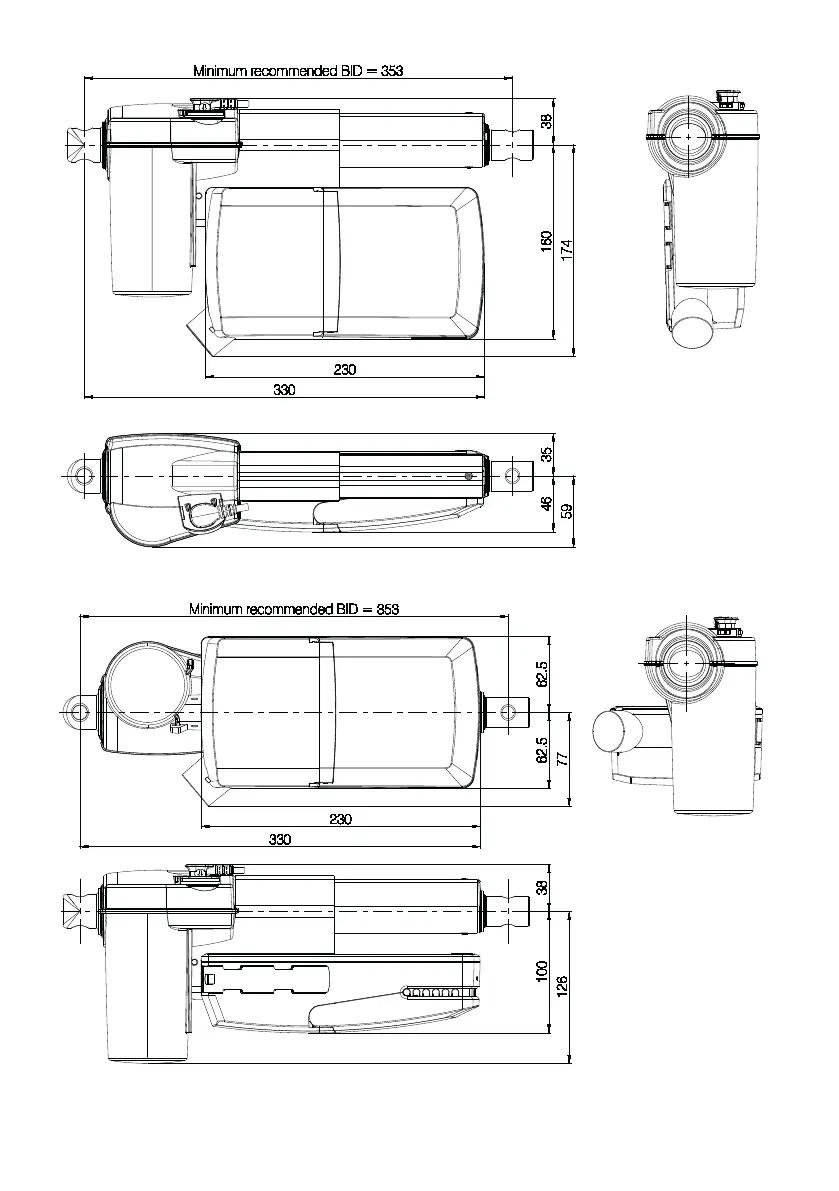

Dimensions – mounted with LA27
Drawing No.: 1015W4016
The adapter 1015W9003 includes a screw that is halfway mounted, thus everything as one part.
Screw head torx size: T15
Screw torque: 1.2 ± 0.2 Nm
