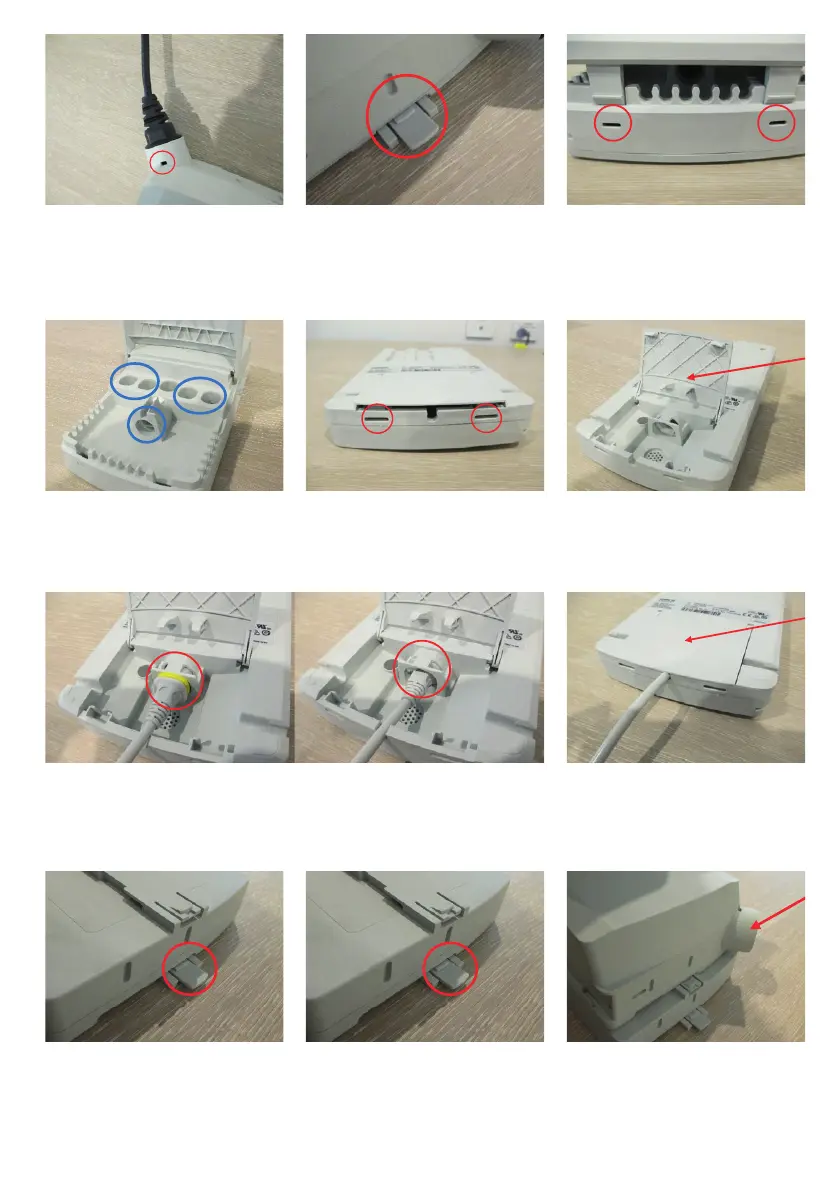

• Disconnect the mains cable to the application
at the power outlet.
• Remove the power cable from the control
box by inserting a screwdriver into the
locking clip marked.
• Release the control box off the application
by pressing the tab on the mounting clip.
• Open the lid to the control box by releasing
the locking clips.
• Open the lid to the battery box by releasing
the locking clips.
• Open the lid for access.
• Insert the battery connection cable supplied in the battery port.
• Ensure that it is fully connected.
• Connect the battery to the application,
ensuring that the locking clip is fully engaged.
• Connect the battery to the application,
ensuring that the locking clip is fully engaged.
• Connect the control box to the battery,
ensuring that the locking clip is fully engaged.
• If you disconnect any actuator cables or hand
control cables, please take note of the
correct ports.
• Close the lid, ensuring that the locking clips
engage fully when securing the lid.
