MJB5 Plus mounting without bracket
MJB5 Plus can be mounted directly on the application from the MJB5 Plus side or via the top.
It is recommended to use screw type DIN912 M4 for mounting without the bracket.
When mounting, ensure that a screw torque limit of 1.0 Nm is not exceeded.

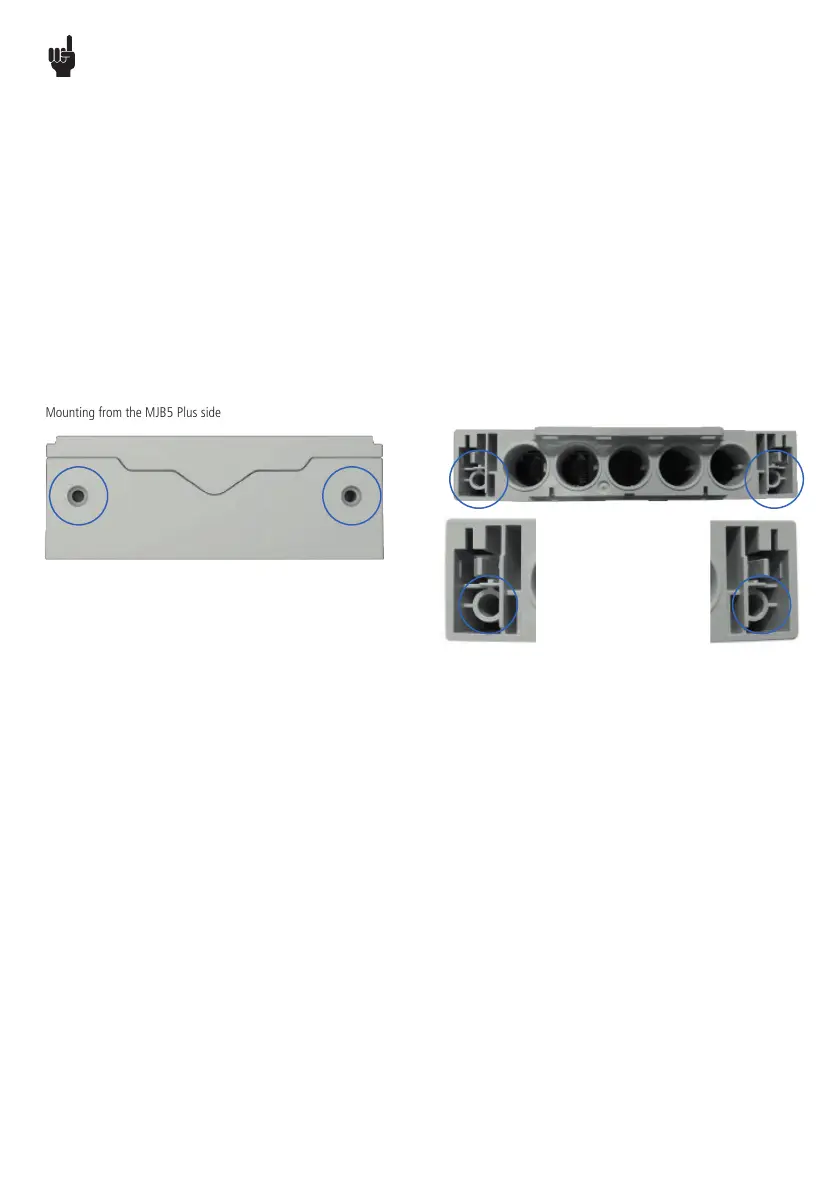

Mounting from the MJB5 Plus side
Mounting from the MJB5 Plus top
MJB5 Plus AOC Special Recommendations
When the MJB5 Plus AOC with or without power request is being used on a system with battery, the functionality will follow the power-down
mode of the control box.
If there is no power request on the inputs, it is not possible to wake up the control box via the MJB5 AOC inputs when the control box is in power-
down mode.
Please note that the MJB5 AOC or the OpenBus unit will be damaged if they use Vpermanent and are attached to port 4 or port 5. An example of
an OpenBus unit using Vpermanent could be the scale solution including QLCI2.
