Page 254 of 295
The MJB5 Plus bracket is for mounting on the CO and CB OpenBus control boxes.

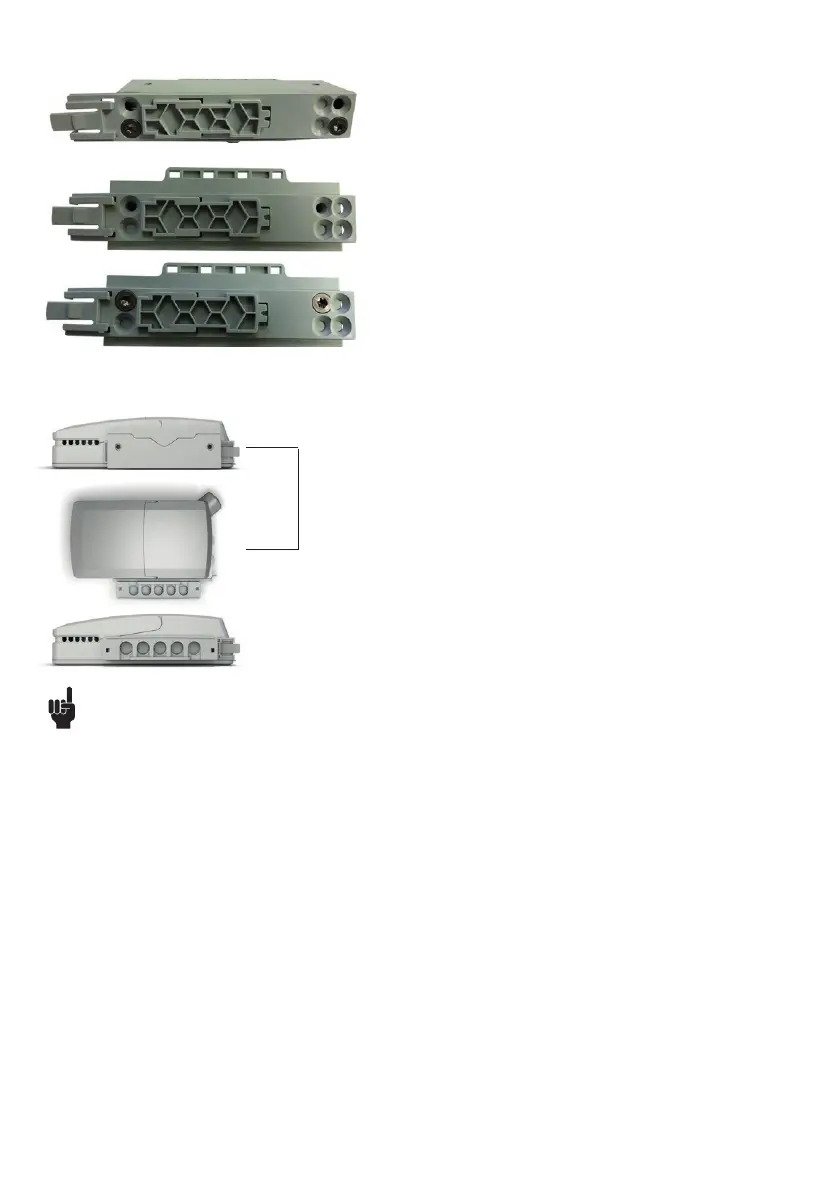

Mounting examples
MJB5 Plus with bracket mounted on the side.
MJB5 Plus mounted on the side of the control box.
MJB5 Plus with bracket mounted on the back.
MJB5 Plus mounted on the side of the control box.
Recommendations
• The MJB must be mounted on an even surface
• The locking surface must be free of other material
• Always use locking mechanism and O-ring
• Sockets not used must be fitted with blind plugs to ensure the IP degree
• HOT PLUGGING
Removing or adding any OpenBus cables are not allowed when the control box is powered by mains supply!
If needed anyway follow the below procedure:
1. Remove mains and wait 5 sec.
2. Mount or dismount the required cables
If this procedure is NOT followed it may result in a damaged OpenBus driver circuit.
The risk of a damaged circuit increases if the accessory has a high start current (in rush current).
• When using USB cable (0834000) or modular plug cable (0964399) with open end, it is up to the customer to maintain the IP degree.
• Do not use 2 MJB5 Plus variants with same device ID on the OpenBus™.
This will cause conflicts and the SDT is not able to identify the different products attached.
• Before the final functional test in the production, is it important that the system is re-powered. This is to make sure that all items have been
detected on the OpenBus.
• We recommend that the end user makes a regular test procedure, in order to prevent failures and hazardous situations on the system, e.g.
squeezed cables. The MJB5 Plus is not able to detect defective 3
rd
party products.
• LINAK only takes responsibility for LINAK products, not 3
rd
party products.
Please pay attention to the “Patient Environment” Clause 3.79 - IEC60601-1.
• There can be a risk of conflict with other OpenBus accessories, such as HB, etc. it is therefore recommended to make a system/bit overview.
• When connecting 3
rd
party products to LINAK systems, the customer must take necessary precautions against Electrostatic Discharge (ESD).
Exposure to harmful ESD must be avoided.
• 3
rd
party products must be designed with the following isolation: Minimum 1 MOPP (creepage distance/clearance according to IEC 60601-1).
• Ensure that a screw torque of 1.0 Nm is not exceeded when mounting the MJB5 Plus with or without the bracket.
The bracket is very flexible for mounting but we recommend one of the following fiixations.
Bracket fixation to the MJB5 Plus back:
Bracket fixation to the MJB5 Plus side:
