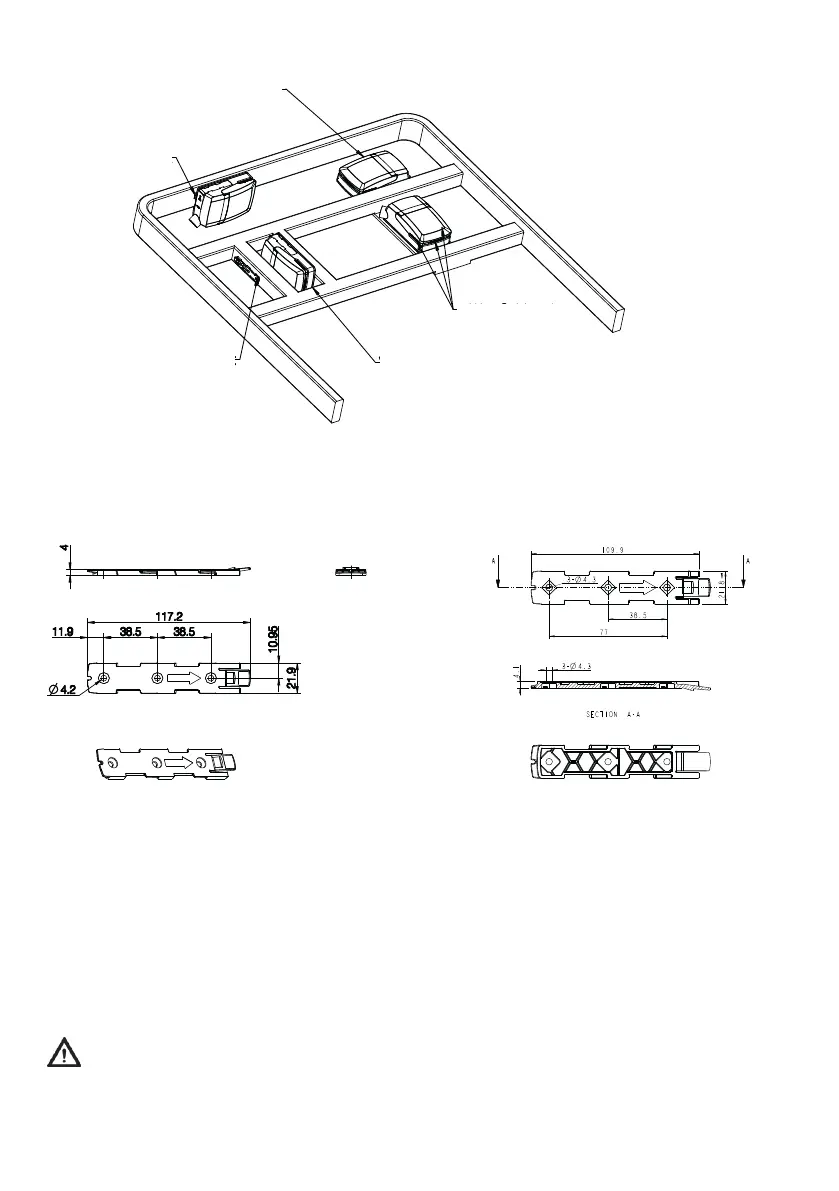

Mounted on frame:
Drawing No.: 1013W4008
Service lid Service lid
Integrated hinge Integrated hinge
Removable if neededRemovable if needed
Very small built-in dimension:Very small built-in dimension:
Height: Min. 90 mm (lid can be removed)Height: Min. 90 mm (lid can be removed)
Length: + 20 mm (locking system)Length: + 20 mm (locking system)
Easy-mount bracketEasy-mount bracket
Release hookRelease hook
3-way cable exit3-way cable exit
Mounting bracket (frame flat) -
Article No. 1015W1001:
Drawing No.: 1015W4001
Mounting bracket (frame flat) w/M4 nuts -
Article No. 1015W9009:
It is recommended to mount the QLCI2 in a position that allows water to escape.
Recommended torque: 0.6 Nm +/-0.1
The bracket can be mounted to the bed frame or any other application by means of one of the following mounting procedures:
1) M6 nut to be placed in bracket and fixed with M6 bolt from the rear side.
2) M5 machine screw with flat washer to be fixed through bracket with nut on the rear side.
3) Self-tapping screw to be placed through bracket and onto the frame.
Drawing No.: 1015W1009
Warnings
• In general the load cells are not living up to 2 MOPP, which is okay as long as all other parts comply with 2 MOPP and the load cells are electrically
connected to the bed frame. This is to make the bed one electrical unit.
