General functionality – LIFT40

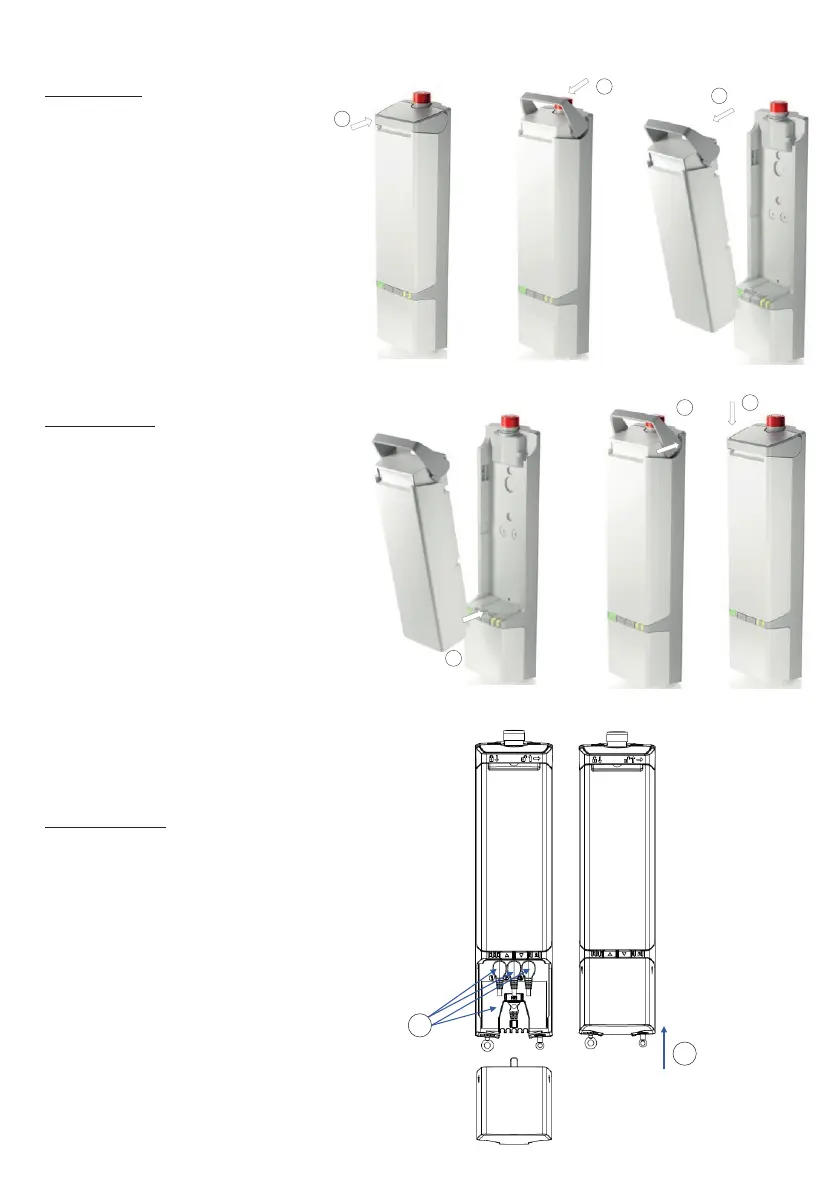

Remove battery:
1) Lift handle upwards to release lock
2) Grab handle, pull out and slightly to the right
3) Lift off the battery - carry in handle
Mounting battery:
1) With open handle - position battery base over the
guide track and lower it in place
2) Steer in upper part of battery
3) Press down handle to lock battery in place
Mounting of cables and cable cover:
LIFT40 control boxes have a uniquely designed cable cover
which also works as an integrated cable cover when closed.
To close cable cover:
- mount cable plugs in control box (1)
- push in the hand control cable locking mechanism
- slide cable cover directly into designated
groove until locked (2)
