Page 42 of 295

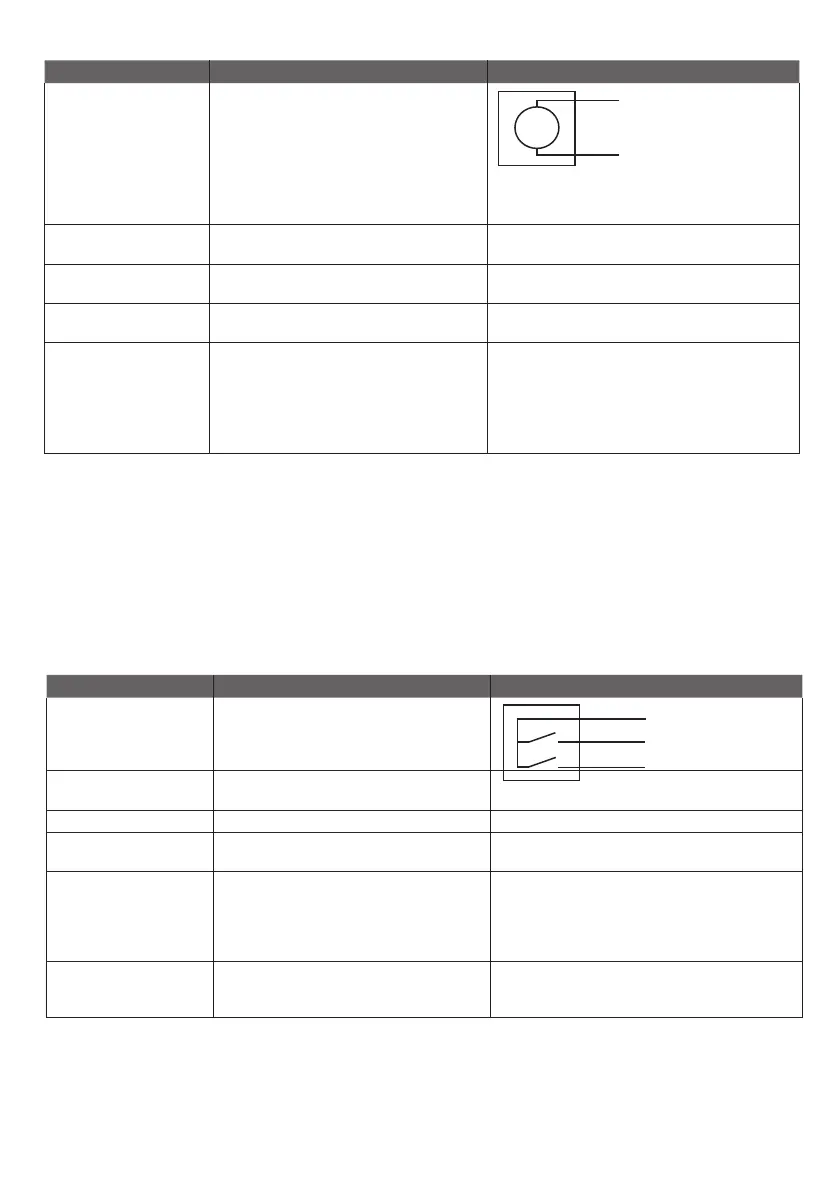

Input/Output specifications: Motor
Item Specification Comment
Description Permanent magnet DC motor,
available in 12 V or 24 V
EMC noise from the motor is dealt with in LINAK A/S Control
boxes. If using the actuator in another aplication it is up to
the customer to be EMC compliant.
Input voltage 12 V DC, +/- 20 % 24 V DC, +/- 10 % Cable dimension 0.50 mm
2
(AWG20)
Current consumption 12 V, 0.2 - 6 A depending on load
24 V, 0.1 - 3 A depending on load
See curves for typical values
Speed regulations The motor can run with PWM regulation.
This could be used for soft start/stop etc.
Connection To extend actuator:
Connect Brown to positive,
Connect Blue to negative
To retract actuator:
Connect Brown to negative,
Connect Blue to positive
Cables:
Standard 6 wires:
0237002-xxxx
Absolute positioning 8 wires:
0237001-xxxx
M
Input/Output specifications: Potential free end stop signals (01, 2x and 4x in ordering example)
Potential free end stop signals provide a signal when the actuator has reached end stop. This signal can be utilized to provide confirmation that end
stop is reached. (Not for LINAK control boxes)
Item Specification Comment
Description The actuator can be equipped with two separate
detector switches that are activated when the actuator
is fully retracted (IN) or when fully extended (OUT).
The detector switches are normally open.
Input Voltage 3 - 20 V DC Cable dimension 0.22 mm
2
(AWG24)
Output Voltage Same as input voltage
Switching capacity Max.: 50 mA 20 V DC
Min.: 100 µA 3 V DC
Connection Common: Red
Actuator retracted: Yellow
Actuator extended: Green
Use Cables:
Standard 6 wires:
0237002 - xxxx
PLC/Absolute positioning 8 wires:
0237001 - xxxx
Combinations The potential free switches can be combined with
absolute feedback.
But cannot be combined with “PLC/option”
IN
OUT
