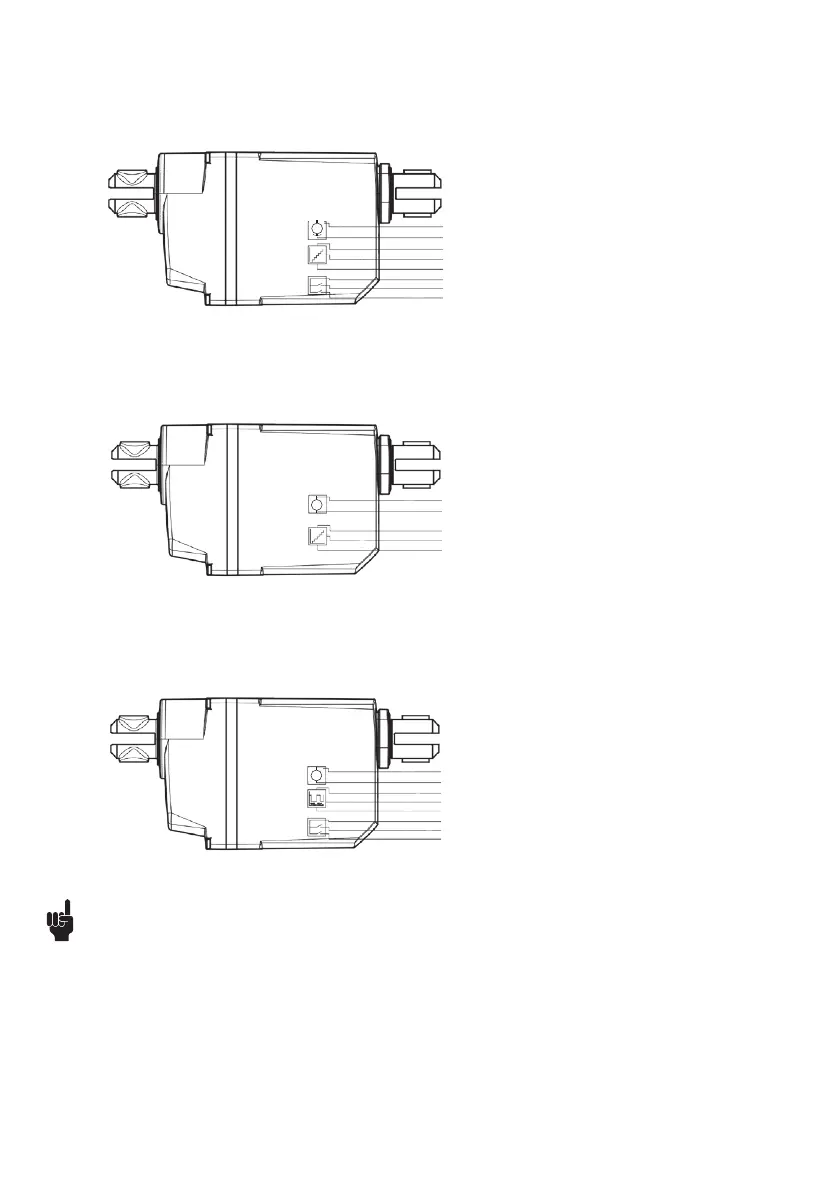

Hall Potentiometer feedback and potential free end stop
23XXXXXX2XXXXXX
Hall Potentiometer feedback
23XXXXXX1XXXXXX
Hall PWM position feedback and potential free end stop
23XXXXXX4XXXXXX
}
10 poles connector
}
}
10 poles connector
10 poles connector
Note: Connection colours only fit with “open-end” cables.
}
BLUE
BLACK
BROWN
VIOLET
WHITE
M
_
M+
ANALOG
VCC +
GND
_
Common
RED
IN
OUT
M
YELLOW
GREEN
BLUE
BLACK
BROWN
VIOLET
WHITE
M
_
M+
ANALOG
VCC +
GND
_
BLUE
BLACK
BROWN
VIOLET
WHITE
M
_
M+
PWM
VCC +
GND
_
Common
RED
IN
OUT
YELLOW
GREEN
M
M
